600W Pull Around Explosion Proof Light Tower w/ Anti-static Wheels - (4) LED Lamps - 50' Cord

LARSON ELECTRONICSSKU: PL3-EPL-ML-4X150RT-LED-50C-EPP
filler

Price:
Sale price$36,872.00

Description

Specifications / Additional Information
EPL-ML-4X150RT-LED-50C-EPP Mini LED Light Tower Ratings
Lamp Type: LED Listed for United States and Canada
Cart Dimensions (Transport w/o lights): 46.147"-L x 34.139"-W x 108.825"-H Class I, Divisions 1&2 Groups C,D
Cart Dimensions (Deployed w/o lights): 46.147"-L x 47.54"-W x 175.848"-H Class II, Divisions 1&2 Groups E,F,G
Tower Dimensions: Telescoping - 7-12` Class III
Lamp Qty: (4) Certified to UL 844 Ed. 13
Voltage: 100-277V AC, 50/60Hz Certified to UL 1598
Total Watts: 600W Certified to C22.2 No. 137 Rev 2009
Total Lumens: 70,000 Certified to C22.2 No. 250.0
Luminous Efficacy: 116.67 Lm/W Certified to C22.2 No. 30-M-1986 Rev 2012
Lamp Life: 60,000+ Hours T5 Temperature Rating
Color Temp: 5600K, 4500K or 3000K Paint Spray Booth Approved
Color Rendering Index: >75 CRI IEC 60529 Tested
Beam Angle: 60° or 125° IP67 Rated Waterproof
Lighting Configuration: Flood Pattern LEL Approved
Power Efficiency: >95% Multiple Driver Banks
Power Factor: 0.992 80% Lumen Retention after 60,000 Hours
Amperage: 5A @ 120V, 2.5A @ 240V, 2.166A @ 277V Factory Sealed Light Fixture
Ambient Operating Temp Range:-50°C to +65°C 3.5kV Surge Protection (NTC Circuit)
Lamp Material: Copper Free Cast Aluminum, Silicone (Gasket)
Lamp Finish: Epoxy Powder Coated
Lens Material: Hardened Borosilicate Glass
Cart/Tower Material: Aluminum
Tower Finish: Powder Coated - Gloss Blue
Mounting: Pull Around Cart w/ Anti-static Wheels + Adjustable Tower
Wiring: 50` 16/3 SOOW w/ EXP Cord Cap
Cord Cap Options: 5-15P, 5-20P or 6-20P
' Product Overview '

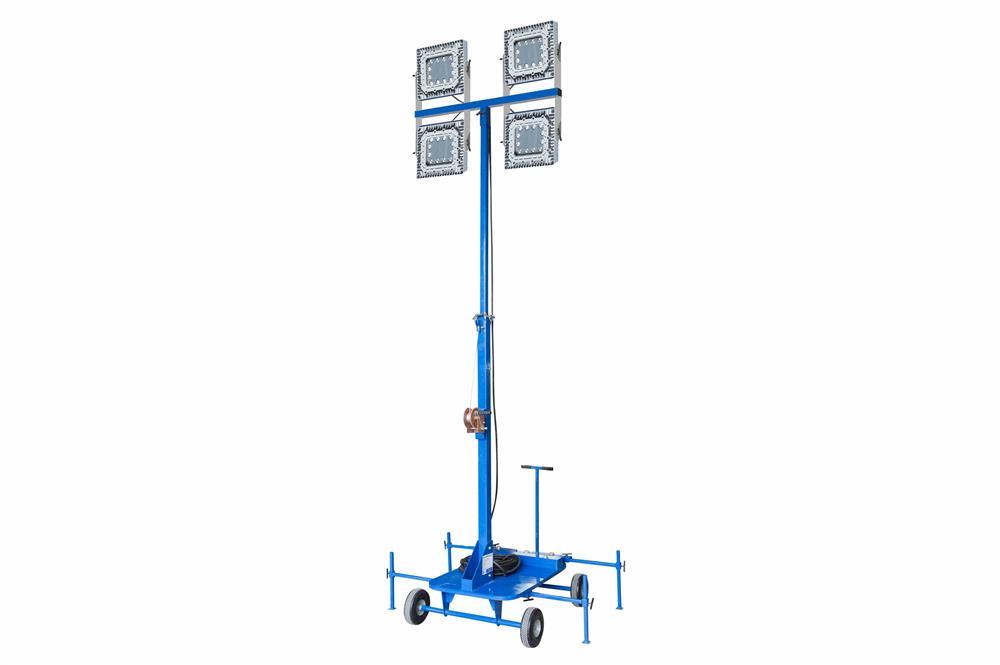

The EPL-ML-4X150RT-LED-50C-EPP Pull Around Explosion Proof Light Tower w/ Anti-static Wheels from Larson Electronics is an ideal solution for operators requiring a mobile light mast assembly in Class I, II or III rated combustible sites. Adjustable from 7 to 12 feet in height (above the aluminum cart deck) and equipped with four 150-watt LED lamps, this unit will provide over 70,000 lumens of quality illumination. Operators are provided access to a 50-foot 16/3 SOOW cord terminated in an explosion proof cord cap for electrical connections. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The EPL-ML-4X150RT-LED-50C-EPP is a portable lighting system designed for high mobility, while providing enough output to illuminate approximately 3 acres of area effectively. Equipped with four 150-watt explosion proof high output LED lamps, this mini tower provides operators with an easily deployed lighting system that can provide large scale illumination. This pull-around explosion proof light tower allows operators to extend the light mast from 7` to 12` above the deck of the aluminum cart. LED Lights: This unit produces 70,000 lumens with a color temperature of 5600K standard and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. We also offer both 3000K warm white and 4500K natural white color temperature options (longer lead times may apply for non-standard temperatures). This lamp uses Cree LED units that have been chosen for their high lumen per watt ratio and extreme longevity. These Cree LEDs generate a robust 116.67 lumens per watt effective lumen output and have a 80% lumen retention at 60,000 hours, giving them better efficiency and operational life than traditional light sources. Beam Angles: When used as a portable lighting solution, the varying beam angles are each individually ideal for several environments. The 60° beam provides the most intense beam of the three options. It is perfect for narrow, confined spaces and is ideally suited for tank cleaning purposes. It offers focused light to provide ample illumination to tight work spaces and other environments. The 125° beam offers a more diffused source of light that is also less intense in brightness. It is a great general area work light and performs well when used for outdoor illumination. The 140° beam offers a very wide lighting pattern and is ideal for situations where lighting distance is not a concern, but illumination of a wider area and even light distribution is. The 140° beam is great for situations that call for working in close proximity to lights such as in a paint booth. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. Voltage: The drivers in this unit provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These light towers can operate on current ranging from 100V to 277V AC 50/60 Hz without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This explosion proof LED light tower is equipped with 50 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** Voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur. Cart/Tower Mount: The mobile cart includes anti-static wheels, which allows the operator to simply roll the entire assembly to a new location when fully deployed. The LED light fixture assembly can be removed by releasing the hand knob and sliding the light and mounting bracket off of the center support, aiding in deployment, storage and transport. The lamp can be easily adjusted vertically and locked into position. This unit features a tower assembly that can be adjusted from 7 to 12 feet in height for maximum coverage. The tower is constructed of aluminum for durability, and a tough powder coat finish provides protection against rust and corrosion. The deck of the pull around cart features enough room for user provided generators or tool boxes. Alternatively, Larson Electronics can equip this unit with a single 3000 VA gasoline generator is mounted to the base of this tower to provide standalone power for the LED lamps and allows for quiet operation and 10 or more hours of run time on a single tank of fuel. This generator also includes standard 120 and 240 volt outlets for accessory attachments, allowing operators to run tools and other equipment while also operating the lights. Larson Electronics is a manufacturer and as such offers a variety of custom options including different lamp wattages and types. Applications: Hazardous locations, chemical processing plants, refineries, oil and gas, portable illumination, scene lighting and more.
