Explosion Proof Light - 150 Watt - Pedestal Mount - 100 foot Cord with Explosion Proof Plug

LARSON ELECTRONICSSKU: PL3-EPL-PM-1X150-100
filler

Price:
Sale price$2,094.99

Description

Specifications / Additional Information
EPL-PM-1X150-100 UL and CSA Certified
UL Listing: United States/Canada Class 1 Groups C and D
Dimensions: 12"-Diam Base  16.75"-H  13.9"-Depth  UL Standard: UL 1598, UL 844
Weight: 19 Lbs UL Listed: E10794
Total Watts:150 500 hour salt-spray tested. Per MIL-F-8115C
Voltage:120V-60hz
Lamp Lumens: 1520
Lamp Type: PAR38 Halogen Incandescent
Mounting: Aluminum Circular Pedestal Base
Wiring: 100 feet SOOW Cord ECP 1523 Explosion Proof Plug
Operating Temp Range: T3C Rated
This fixture is being remanufactured under file number E10794.

' Product Overview '

Made in the USA The EPL-PM-1X150-100 Explosion Proof Metal Halide Light is UL Listed Class 1 Groups C and D, and is rated for use in wet and marine environments. The waterproof construction and halogen lamp used with this unit provides operators with excellent power and economy coupled with high versatility and excellent durability.   The EPL-PM-1X150-100 Pedestal Mounted Explosion Proof Light provides 1,500 square feet of work area coverage with 1,520 lumens of light output. The 150 watt halogen lamp on this unit produces illumination in a wide flood pattern and provides an economical alternative to higher priced light sources. This portable unit is waterproof and tested to 500 hours of salt spray exposure in accordance with MIL-F-8115C Military Specifications.
40` container no illumination With the EPL-PM-1X150-100 EPL-PM-1X150-100

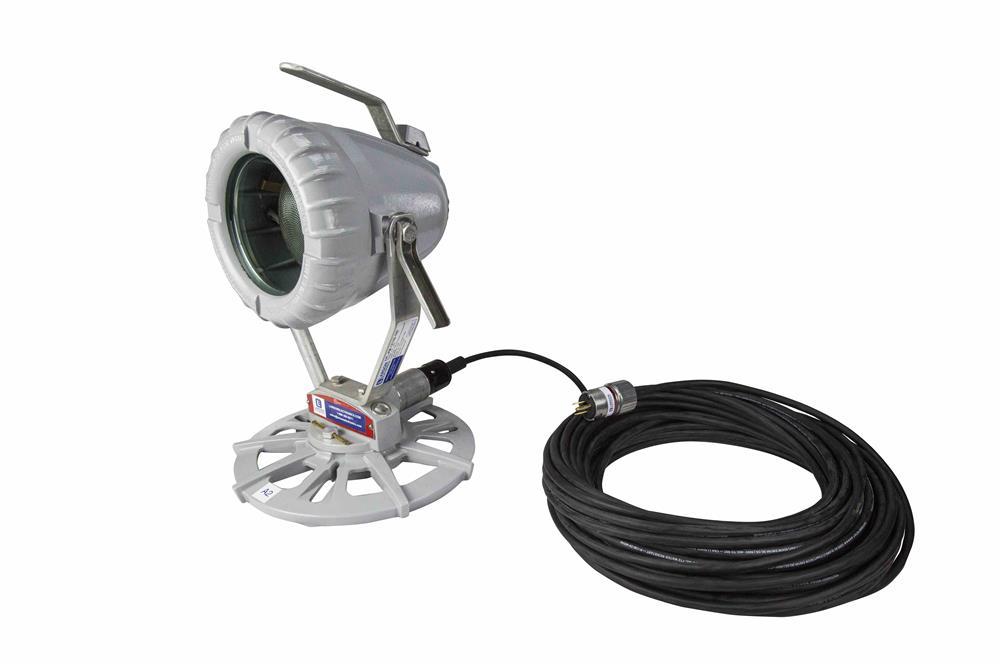

This portable explosion proof light fixture is comprised of a 150 watt halogen light head mounted atop a circular pedestal base. The entire unit is fabricated from cast aluminum and is factory sealed and water tight. This unit requires no external seals, has a built in carrying handle, and the light head can be adjusted through 135° of vertical movement. The yoke is formed of high strength aluminum alloy, the lens is thermal shock and impact resistant glass, and the entire housing is formed of cast aluminum with an aluminum enamel coating. Included with this unit is 100 feet of 16/3 black SOOW (abrasive and oil resistant) cord ending in an ECP 1523 5-15P explosion proof straight blade plug connector. This light operates with standard 120 volts AC current and draws approximately 1.25 amps. This lamp is extremely rugged and ideal for use in marine environments where damage due to salt water spray and dampness is an issue.
Made in the USA Quality
1. Thick cast aluminum construction. 2. Thermal shock and impact resistant glass lens. 3. Aluinum alloy yoke. 4. High stability round pedestal base.. 5. Factory sealed, no external seals required. 6. 500 hour salt-spray tested. Per MIL-F-8115C. 7. Low Maintenance. 8. Economical halogen lamp reduces relamping costs. 9. Explosion proof cord and plug included.. 10. Included carrying handle..
