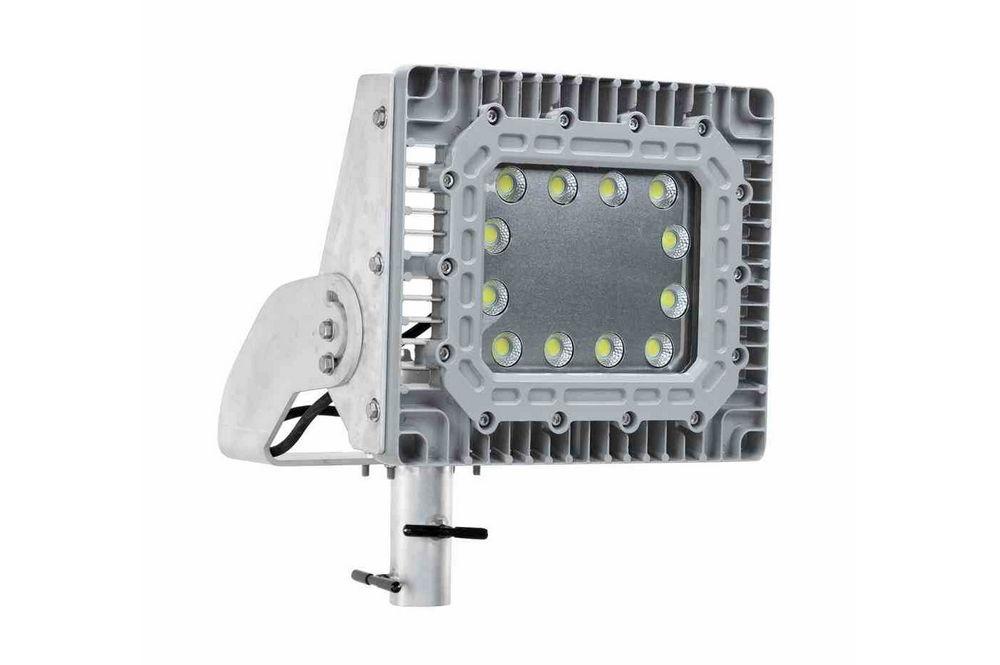

100W Explosion Proof Adjustable Pole Top Slip Fitter Mount LED Light Fixture - Slip Fitter Yoke

LARSON ELECTRONICSSKU: PL3-EPL-PT-100LED-RT
filler

Price:
Sale price$6,220.00

Description

Specifications / Additional Information
EPL-PT-100LED-RT Pole Top Slip Fit Mount Ratings/Approvals
Listing: United States - Canada Listed for United States and Canada
Lamp Type: Cree LED Class I, Divisions 1 & 2, Groups C and D
Dimensions: 16"W x 22"H x 18"D Class II, Divisions 1 & 2, Groups E,F,G
Weight: 42 lbs Class III, Divisions 1 & 2
Voltage: 120-277V AC or 11-25V DC Certified to UL 844 Ed. 13
Total Watts: 100W Certified to UL 1598
Total Lumens: 11,667 Certified to C22.2 No. 137 Rev 2009
Luminous Efficiency: 116.67 Lm/W Certified to C22.2 No. 250.0
Lamp Life: 60,000+ Hours Certified to C22.2 No. 30-M-1986 Rev 2012
Color Temp: 5000K, 4000K or 3000K T5 Temperature Rating
Color Rendering Index: >75 CRI Paint Spray Booth Approved
Beam Angle: 60° or 125° IEC 60529 Tested
Lighting Configuration: Flood Pattern IP67 Rated Waterproof
Power Efficiency: >95% IP67 Rated Waterproof
Power Factor: 0.992 Multiple Driver Banks
Ambient Operating Temp Range: -50°C to +65°C 80% Lumen Retention after 60,000 Hours
Operating Temp Rating: T5 Factory Sealed Light Fixture
Lamp Housing Material: Copper Free Cast Aluminum Recommended 10` to 30` Mounting Height
Lens Material: Hardened Borosilicate Glass 120-277V AC or 11-25V AC/DC
Mount Material: Non-Sparking Aluminum w/ SS Hardware Adjustable Swiveling Pole Top Mount
Gasket Material: Silicone Multiple Slip Fit Yoke Diameters Available
Mounting: Slip Fit Yoke Mount w/ Adjustable Bracket
Yoke Diameter: 1.5", 2", 2-1/4", 2-1/2", 2-3/4", 3" Slip Fit
Wiring: Flying Leads inside Junction Box
Wiring Hub: 3/4" NPT



' Product Overview '
Made in the USA The EPL-PT-100LED-RT from Larson Electronics is a Pole Top Slip Fitter LED Light Fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures. This explosion proof slip fitter operates on 120-277V AC or 11-25V DC current. This Class I Divisions 1 & 2, Class II Divisions 1 & 2 pole top slip fit mount explosion proof light fixture provides 11,667 lumens of high quality light while drawing only 100 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. The EPL-PT-100LED-RT pole top slip fit mount explosion proof light features an adjustable swivel bracket constructed of 3/8" aluminum that allows 270° of adjustment and is attached to a slip fit yoke for easy installation. The slip fit yoke is built to customer`s specs, enabling operators to mount this explosion proof LED light to their specific pole size. The wiring of the EPL-PT-100LED-RT is terminated in a junction box with 3/4" threaded hub. Operators can run rigid pipe or flexible conduit to the junction box, terminating the electrical connections within.
Click Photo to Enlarge
The explosion proof LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains eight individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. The aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 11,667 lumens with a color temperature of 5000K, 4000K or 3000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The lamp is T5 temperature rated, Design Lights Consortium approved, and the LED light head retains 80% of its lumen output after 60,000 hours of use, far longer than incandescent or fluorescent lamps.
Energy Consumption Comparison
Metal Halide LED
Wattage 250 watts 100 watts
Amp Draw @ 120V AC 2.38 amps 0.83 amps
Amp Draw @ 220V AC 1.30 amps 0.45 amps
Amp Draw @ 240V AC 1.19 amps 0.42 amps
Amp Draw @ 277V AC 1.03 amps 0.36 amps
Amp Draw @ 12V DC 23.75 amps 8.3 amps
Amp Draw @ 24V DC 11.88 amps 4.17 amps
Lamp Life Expectancy 20,000 hours 50,000+ hours
Operation cost per year (12hs/day @ 12c/kWh) $149.80 $52.56
The EPL-PT-100LED-RT yoke mount explosion proof LED flood light is universal voltage capable and can be operated with 120-277V AC current without modifications. The EPL-PT-100LED-RT is also available in a 11-25V DC configuration. Please make your voltage configuration selection when ordering below. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics. The entire assembly is ETL listed Class I, Divisions 1-2 and Class II, Divisions 1-2 for use in hazardous locations and approved for paint spray booths. The extreme durability, universal voltage capabilities, and LED longevity make this LED flood lighting system an ideal fit for frac pads, rigs, offshore, and any application that requires a Class I Division 1 pole top light fixture.
Click Photos to Enlarge
60° Beam Angle 125° Beam Angle 140° Beam Angle
Beam Angles: When used as a portable lighting solution, the varying beam angles are each individually ideal for several environments. The 60° beam provides the most intense beam of the three options. It is perfect for narrow, confined spaces and is ideally suited for tank cleaning purposes. It offers focused light to provide ample illumination to tight work spaces and other environments. The 125° beam offers a more diffused source of light that is also less intense in brightness. It is a great general area work light and performs well when used for outdoor illumination. The 140° beam offers a very wide lighting pattern and is ideal for situations where lighting distance is not a concern, but illumination of a wider area and even light distribution is. The 140° beam is great for situations that call for working in close proximity to lights such as in a paint booth. Mounting Notes: The EPL-PT-100LED-RT pole top slip fit mount explosion proof light features an adjustable swivel bracket constructed of 3/8" aluminum that allows over 270° of adjustment and is attached to a slip fit yoke for easy installation. The slip fit yoke is built to customer`s specs, enabling operators to mount this explosion proof LED light to their specific pole size. For example, selecting a 2" OD mount means that the yoke mount will fit onto pipes or bull horns with a 2" OD.
