150W Portable Battery Powered Pole Mounted LED Light - 17500 Lumens - Rechargeable 140ah Battery

LARSON ELECTRONICSSKU: PL3-EPL-RPS-140A-APM-150LED-RT
filler

Price:
Sale price$27,151.99

Description

Specifications / Additional Information
EPL-RPS-140A-APM-150LED-RT Explosion Proof LED Tower Ratings/Approvals
Listing: United States & Canada Listed for United States and Canada
Lamp Type: LED Class I, Divisions 1 & 2, Groups C and D
Dimensions: 14"-W 16"-H 5"-D- Light Head - 5` to 12` Extendible Tower Class II, Divisions 1 & 2, Groups E,F,G
Weight: 300 Lbs Class III, Divisions 1 & 2
Voltage: 120-277V AC 50/60Hz Certified to UL 844 Ed. 13
Total Watts: 150 watts Certified to UL 1598
Total Lumens: 17,500 Certified to C22.2 No. 137 Rev 2009
Luminous Efficiency: 116.67 Lm/W Certified to C22.2 No. 250.0
Lamp Life: 60,000+ Hours T5 Temperature Rating
Color Temp: 5000K, 4000K, 3000K Paint Spray Booth Approved
Color Rendering Index: >75 CRI IEC 60529 Tested
Beam Angle: 60° or 125° IP67 Rated Waterproof
Lighting Configuration: Flood Pattern LEL Approved
Power Efficiency: >95% Multiple Driver Banks
Power Factor: 0.992 80% Lumen Retention after 60,000 Hours
Amperage: 1.25A @ 120V, 0.63 @ 240V, 0.54 @ 277V Factory Sealed Light Fixture
Ambient Operating Temp Range:-50°C to +65°C 50 Foot SOOW Cable
Operating Temp Rating: T5 Adjustable Tower 5 - 12 Feet
Lamp Housing Material: Copper Free Cast Aluminum Direct Replacement for 400W MH Towers
Tower Material: Anodized Aluminum Tubing Class I Division 1 Explosion Proof
Line In: 120V AC (1) 2023 Class I Div 1 Twist Lock Receptacle
Line Out: (1) 2023 C1D1 12V or 24V DC Twist Lock Receptacle 20 Amp Primary Rating
Dimensions: 30"-H x 14"-D x 24"- W
Mounting: Portable Dolly Cart with Wheels
Battery: 140ah Sealed Lead Acid
Cord Cap Options: 5-15P (120V), 5-20P (120V), 6-20P(240V)
Lens Material: Hardened Borosilicate Glass
Gasket Material: Silicone
Mounting: Telescoping Anodized Aluminum Tower w/ Flat Mounting Bracket
Wiring: 50` 16/3 SOOW Cable w/ explosion proof
' Product Overview '

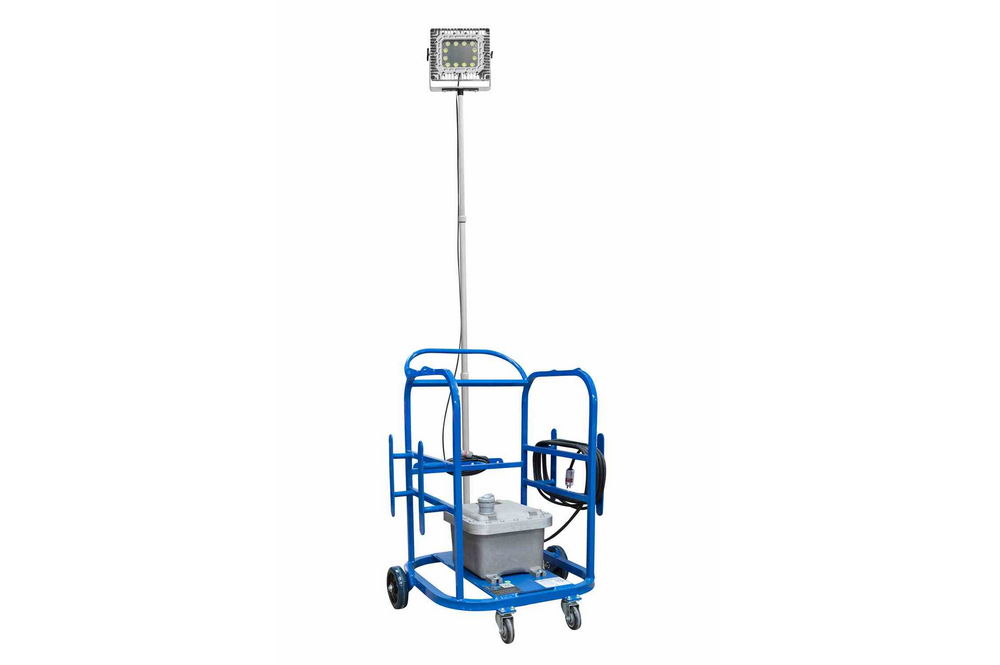

Made in the USA The Larson Electronics EPL-RPS-140A-APM-150LED-RT explosion proof battery powered pole mounted LED light tower enables operators to power the light via one Class I and II Division 1 and 2 receptacle. Once the encapsulated 140ah sealed lead acid battery is depleted, operators can plug this unit into an explosion proof 120 volt outlet or standard 120 volt outlet to charge the unit overnight within the hazardous location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* The EPL-RPS-140A-APM-150LED-RT explosion proof portable battery powered pole mounted LED light from Larson Electronics is built to provide operators in hazardous locations with a method of superior illumination. This unit includes one explosion proof receptacle rated at 20 amps. This compact battery powered pole mounted LED light is designed for portability and convenience as well as durability and is mounted to a wheeled, non-sparking aluminum frame for added protection. The output side is equipped with one 2023, Class I Division 1 receptacle designed to accept twist lock plugs like our EPP-15A and EPP-20A explosion proof plugs. The explosion proof enclosure contains two 70ah AGM batteries and charger/maintainer systems. This explosion proof battery powered LED light with adjustable pole comes standard with a 25 foot, 16/3 SOOW cord terminated with a 120V, 15 amp explosion proof male plug. The EPL-RPS-140A-APM-150LED-RT is designed to be charged within Class I Division 1 classified areas. Light Information: The light head on the EPL-RPS-140A-APM-150LED-RT provides 9,500 square feet of work area coverage with 17,500 lumens of light output. This adjustable LED light tower has a removable LED light head mounted on top of an anodized aluminum tower. The LED light head on this unit produces a wide flood pattern of light that is ideal for illuminating large workspaces and job sites. This light is designed for heavy duty use in demanding conditions including emergency services, mining, construction, marine, and industrial operations where durability and reliability is critical. The telescoping battery powered LED work light on the EPL-RPS-140A-APM-150LED-RT is comprised of a removable LED light head mounted atop an anodized aluminum adjustable pole fabricated with 2.5" by 2.5" by 1/8" thick tubing for the first stage, 2" by 2" by 1/8" thick tubing for the second stage and 1" by 1" by 1/8" thick tubing for the third stage. This light tower is anodized and the brackets are powder coated for durability and rust resistance. This adjustable and collapsible tower can be extended to twelve feet in and collapsed to five feet via knurled knobs that are tightened or loosened to allow for height adjustments by the operator. The lamp can independently be adjusted up, down or from side to side and locked into position. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Made in USA Quality Superior LED Benefits
1. Approved Class I Div 1-2 Class II Div I-2 2. Led lamp head requires no lamping and simply slides on the tower and is locked into place with a hand tightened set screw. 3. Tower constructed of corrosion resistant anodized aluminum with powder coated mounting brackets. 4. No ballast box. No ballast to replace. 5. Extreme long life LEDs reduce maintenance and replacement costs. 6. 25 peel off mylar overspray lamp protectors ship with the unit. 7. 17,500 Lumens produced from only 150 watts. 8. Mercury free shock proof LED lamp light head. 1. 60,000+ hour lifespan. 2. Can SAVE 50% or more on energy. 3. 100% recyclable. 4. No toxins-lead, mercury. 5. No UV light, infrared radiation or CO2 emissions. 6. Bright, even light maintains consistent color over time. 7. Instant on/off - No flickering, delays or buzzing. 8. Very good color rendering. 9. Vibration/impact resistant. 10. Significantly cooler operation. 11. Less frequent outages, higher output improves workplace safety.
