10A Explosion Proof Selector Switch - 2P, Rotary Action - (3) Positions, Long Barrel - TB - N4X

LARSON ELECTRONICSSKU: PL3-EPL-SLSW-3P-XL-1.0.1
filler

Price:
Sale price$375.99

Description

Specifications / Additional Information
EPL-SLSW-3P-XL-1.0.1 Extended Rotary Selector Switch Ratings/Approvals
Listing: NRTL Listed for United States, Canada, Europe, International  Class I, Divisions 1&2 Groups B,C,D
Unit Type: Explosion Proof Selector Switch Class II, Divisions 1&2 Groups E,F,G
Dimensions: 6.7" x 1.8" x 1.8" Class III
Weight: 0.40 lb ATEX/IECEx Rated
Voltage Rating: - Ex II 2G Ex db IIC Gb
Frequency: 50/60 Hz Ex II 2D Ex tb IIIC Db
Amp Rating: 10 A NEMA 4X
Action: Rotary IP66
Pole: 2P
Positions: (3)
Design: Long Barrel
Ambient Operating Temp: -50°C to +60°C
Materials: Aluminum and Stainless Steel
Mount: Surface/Panel Toll Free: 1-800-369-6671
Wiring: Terminal Blocks Intl: 1-214-616-6180
Body: 3/4"-14 NPSM Threaded
Switch Color: Black
' Product Overview '

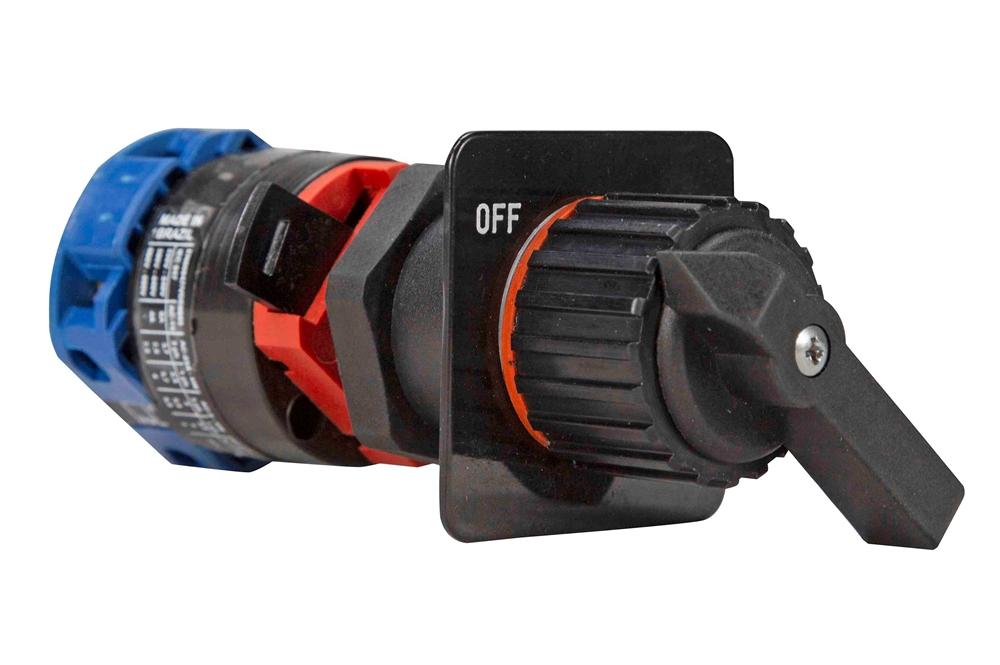

The EPL-SLSW-3P-XL-1.0.1 from Larson Electronics is an Explosion Proof Selector Switch that is suitable for preventing the ignition of external, flammable atmospheres in combustible sites. This rotary unit features a long barrel, threaded design for installation in thick panels. The explosion proof device contains three positions and comes with terminal blocks for wiring connections. The EPL-SLSW-3P-XL-1.0.1 is rated for Class I, II and III, as well as ATEX/IECEx rated facilities. The long-barrel switch comes with a maximum rating of 10 amps. Designed for rotary action, the 2-pole unit contains three positions. This NEMA 4X rated device features a 3/4"-14 NPSM threaded body. For protection in hazardous locations, the explosion proof switch is constructed of aluminum and stainless steel. The IP66 rated unit features terminal blocks for wiring connections. Mounting: This extended rotary switch is compatible with panel or surface mounting applications. Applications: Chemical processing facilities, food processing plants, oil refineries, agricultural sites, grain storage facilities, metal processing and more.
