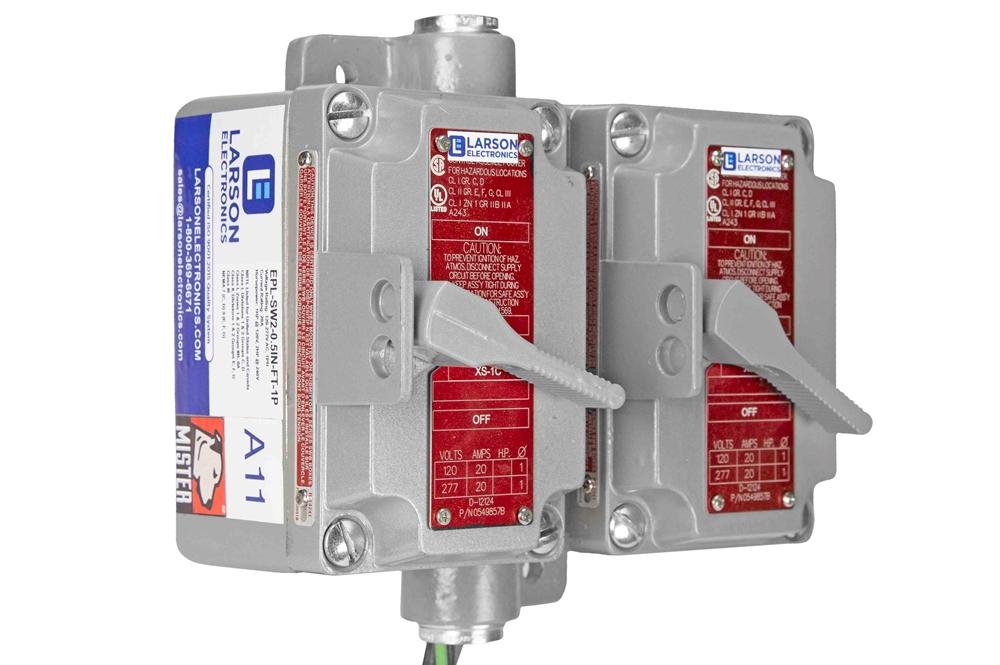

Explosion Proof Double Gang Switch - Class I, II, III - (2) Gang Box, (2) Lever Switches - Copper-free Aluminum

LARSON ELECTRONICSSKU: PL3-EPL-SW2
filler

Price:
Sale price$1,661.99

Description

Specifications / Additional Information
EPL-SW2 Explosion Proof Tumbler Switch - Double Gang Ratings
Listing: NRTL Listed for United States and Canada Class I, Divisions 1 & 2 Groups C, D
Dimensions: 9.38" x 5.88" x 3.44" Class I, Zones 1 & 2 Groups llB, llA
Gang Qty: (2) Class II, Divisions 1 & 2 Groups E, F, G
Weight: - Class III
Voltage Rating: 120-277V AC, 1PH NEMA 7 (C, D) 9 (E, F, G)
Current Rating: 20A
Horsepower: 1HP @ 120V, 2HP @ 240V
Switch Qty: (2)
Switch Type: Front Lever Operated Switches
Switch Style: Single-pole, Dual-pole or 3-way
Padlockable Positions: On or Off
Materials:  Copper-free Aluminum
Mount: Surface/Wall - (2) 0.30" External Mounting Lugs
Configuration: Feed Through or Dead End
Hub Size Options:  1/2", 3/4" or 1"
Color: Gray
' Product Overview '
The Larson Electronics EPL-SW2 Explosion Proof Double Gang Switch provides a safe and secure method for operators to interrupt power before connecting and disconnecting electrical equipment in hazardous locations. This 20-amp device is compatible with single-phase 120-277V AC and features two lever switches. Operators may mount the NEMA-rated unit on surfaces or walls. The EPL-SW2 is used for electrical or circuit switching applications in combustible facilities. This explosion proof unit is rated at 20 amps and operates on single-phase 120-277V AC. Horsepower ratings include the following: 1HP @ 120V and 2HP @ 240V. Equipped with two front lever operated switches in a double-gang design, the device is offered in 1-pole, 2-pole or 3-way switch styles. Both On and Off positions can be padlocked for security. The explosion proof switch cover and housing box is constructed of copper-free aluminum. Designed for outdoor, rugged and combustible sites, this unit carries NEMA ratings and is suitable for Class I, II and III rated environments. Hubs: Tapped conduit openings are provided on the top and bottom of the unit in feed through versions. Dead end versions have a single conduit hub, providing easy and secure connection to main power supplies. Hub size options include the following: 1/2" NPT, 3/4" NPT or 1" NPT. Mount: Two 0.30" external mounting lugs provide simple and secure mounting on walls and flat surfaces. The unit box, switch and face plate are all included with the product. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Wet areas and Locations Where Combustible Dust is Present.
