Explosion Proof 2-Color LED Light - C1D1 & C2D1 Oxygen Level Warning Light & Horn - Steady or Strobe

LARSON ELECTRONICSSKU: PL3-EPL-TL-2X10W-C-OXM-PA
filler

Price:
Sale price$8,003.99

Description

Specifications / Additional Information
EPL-TL-2X10W-C-OXM-PA Explosion Proof LED Stack Light w/ Audible Alarm Ratings/Approvals
Lamp Type: LED Listed for United States & Canada
Dimensions: Class I, Division 1 & 2, Groups C and D
Wattage: 10 Watts per Lamp - 20 Watts Max Class II, Division 1 & 2, Groups E, F and G
Lamp Color: Green/Blue (other color configurations available upon request) Class III, Division 1 & 2
Voltage: 120-240V AC, 24V DC IP67 (water proof)
Mounting: Predrilled Aluminum Flat Surface Mounting Bracket T3C Temperature Rating
Temp Rating: T3C New York City Department of Buildings approved
Lighting Configuration: Steady Burn or Strobe - Mix/Match available Explosion Proof Horn Indicates Low Oxygen
Sound Level: Up to 110dbAW @ 10ft from Horn
Horn Decibels: 110dBA
Lamp Life: 50,000+ Hours
Wiring: 10` SOOW Cable w/ Flying Leads
Mounting Dims: 22"L x 22"H x 12"D
' Product Overview '

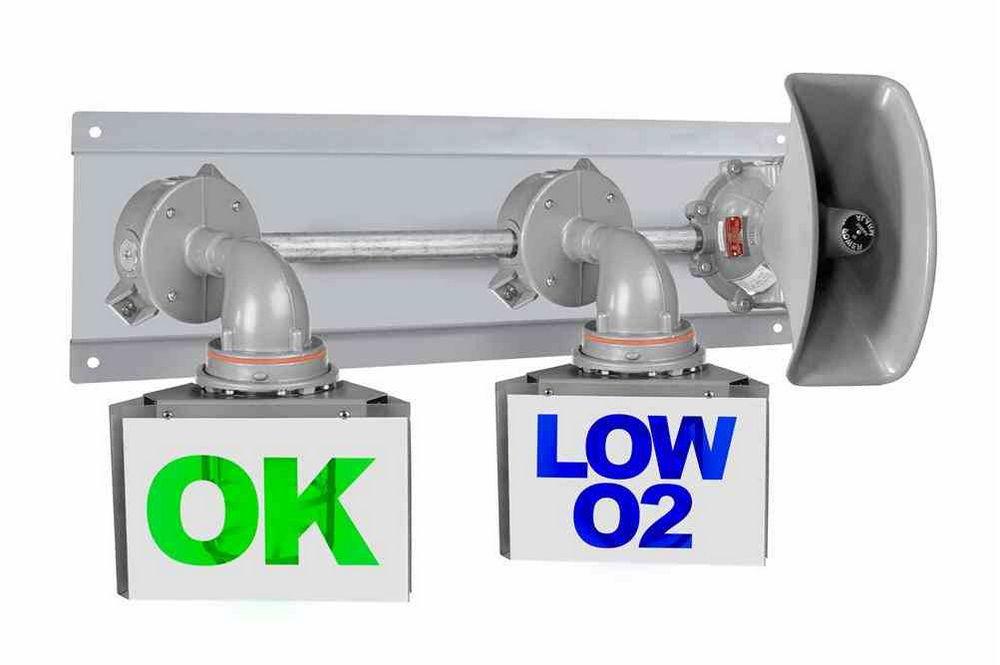

Made in the USA The EPL-TL-2X10W-C-OXM-PA Class I Division 1 and Class II Division 1 Oxygen Level Warning Light with Warning Horn from Larson Electronics is approved for use in wet locations and marine environments. This explosion proof LED light is designed for use in industrial environments where oxygen levels are monitored within the atmosphere and have the potential to fall below the OSHA recommended oxygen concentration within the work environment. When the blue low oxygen light comes on triggered by an operator provided O2 sensor, the warning horn will sound to alert operators to the low oxygen levels. The EPL-TL-2X10W-C-OXM-PA explosion proof LED light with audible alarm from Larson Electronics is an ideal indicator lighting solution for for industrial refueling stations, manufacturing facilities and areas where oxygen levels may be depleted within the workforce. The light housings are constructed with a polyester powder coated copper free aluminum casting that can withstand 1490 pounds PSI hydrostatic pressure. The mounting plate is constructed of non-sparking aluminum and can be custom built to customer specifications. This explosion proof green and blue indicator light has a 50,000 hour operational life and is available in 120-240V AC and 24V DC configurations for standard or low voltage operation. Each lamp is equipped with a warning sign and horn to indicate the status of oxygen levels within the environment. A green LED lamp illuminates the "OK" sign to indicate that the oxygen levels are satisfactory. A blue LED lamp illuminates the "Low O2" sign to indicate that oxygen levels have reached a unsatisfactory level. When the blue LED lamp turns on due to low oxygen levels, the warning horn will sound to alert people within the vicinity of the situation. The horn reaches a peak output of 110dBA which is powerful enough to be heard over industrial operations. Please Note: This indicator lighting system does not monitor or measure oxygen levels. Customer provided equipment is required for the measurement of O2 levels within the hazardous location. The EPL-TL-2X10W-C-OXM-PA provides a visual and audible indication of levels and works in conjunction with existing monitoring systems.
Click Photo to Enlarge
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. This explosion proof LED light carries a T3C temperature rating and has a -40°C to +85°C ambient operating temperature range. The EPL-TL-2X10W-C-OXM-PA is Class I, Class II, Class III, Division 1 & 2 approved. Line-in supply power is provided by 10` of 16 AWG SOOW cable with flying leads. Individual leads per lamp allow independent operation, making this unit ideal for fuel depots and manufacturing facilities where status indicators are necessary. The individual leads can be connected to user provided terminal blocks or existing indicator systems. Unlike traditional indicator lamps that use a colored globe with low color temperature incandescent lamps, this explosion proof LED stack light incorporates a clear glass globe and colored LED lamps. By utilizing colored LEDs instead of tinted lenses or globes, the total visibility and light output is increased when compared to traditional colored lamps. This is particularly important for strobe configurations, increasing the peak candela of the signal during indications. The standard lamp configuration is red and green LED bulbs in a steady burn or strobing configuration. We offer a large assortment of lamp color options including red, green, blue, amber, purple, and white LED lamps. Please contact us for special lamp configurations. This explosion proof fixture is configured for green and blue output (one lamp each color) offers exceptional lumen output, a 50,000+ hour life span, and the lamps are protected by Pyrex globes and cast aluminum globe guards. The LED lamps in this traffic light are 10 watts each and offer cool operation and clean bright output that surpasses that of 100 watt incandescent indicator lamps. Mounting is provided by a heavy gauge aluminum back plate fabricated from copper free aluminum with four predrilled holes designed to be bolted to walls, ceilings, and flat surfaces for permanent and secure attachment. The EPL-TL-2X10W-C-OXM-PA is equipped with an explosion proof horn providing operators in hazardous locations with an effective and powerful alert/signal system that can withstand demanding conditions and be heard over the operation of industrial machinery and equipment. The EPL-TL-2X10W-C-OXM-PA is designed for resistance to the damaging and corrosive effects of chemicals with polycarbonate construction instead of metal, and is ideal for locations where these hazardous compounds are commonly encountered. Mounting is provided by a heavy gauge aluminum base with four predrilled holes designed to be bolted to walls and flat surfaces for permanent and secure attachment. Note on Lights: Please note, the color choices and light configuration of this unit can be customized to your requirements. We offer steady burn or strobing LED lamps, as well as high or low voltage configurations. Please contact us for special color configurations. Voltages: 120-240V AC 50/60Hz or 24V DC Temp Code: Class I T3C Groups C and D, Class II - T3C Groups E, F and G
