Explosion Proof 150 HPS - Class I & II, Division I & II - Permanent Mount - 100' Cord

LARSON ELECTRONICSSKU: PL3-EPL-TN-150-100
filler

Price:
Sale price$4,108.99

Description

Specifications / Additional Information
EPL-TN-150-100 Metal Halide Flood Light U.L. Ratings
UL Listing: United States - Canada Class I & II, Division 1 & 2, Groups C,D
Dimensions: W-13 1/4"  D-12 1/2"  H-11 1/2" Class II Division 1 & 2, Groups F, G
Weight: 19 Lbs Class III
Total Watts: 150 Watts UL 781 portable HAZLOC use
Voltage: 120 Volts AC, 1.25 Amp Draw UL Certified- U.S - CSL
Coverage: 20,000 Square Feet
Lamp Life Expectancy: 25000+ Hours
Lamp Type: High Pressure Sodium
Operating Temp Range: T4 rated
Mounting: Permanent Mount Yolk
Wiring:100 Foot SOOW Cable - 15A EXP Plug
Beam Lux: 8500@ 1 Meter 1250@ 3 Meters
U.L Approval:

' Product Overview '

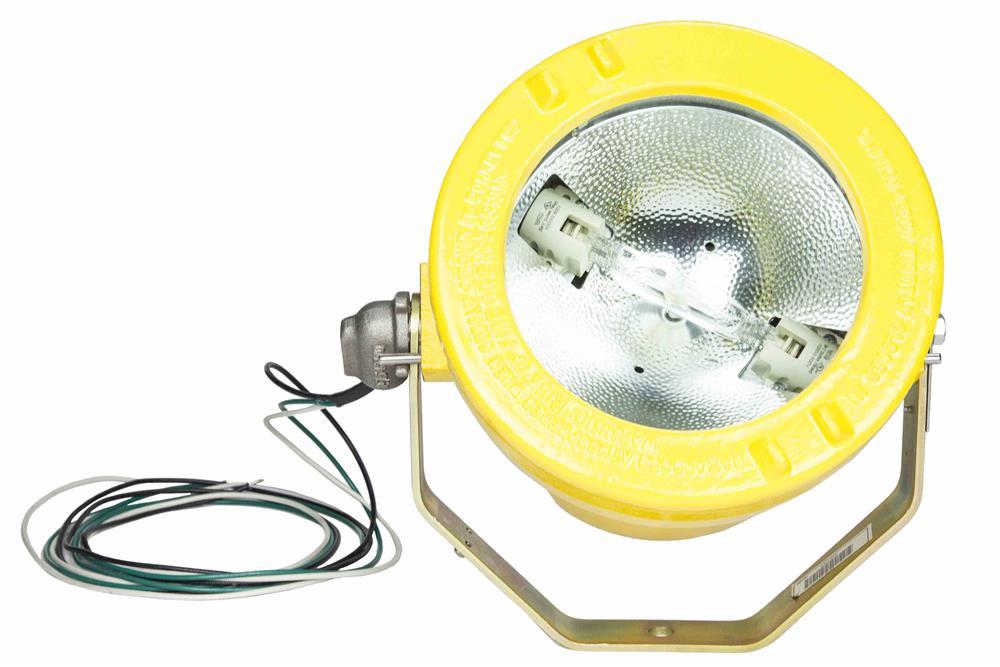

Made in the USA The Larson Electronics EPL-TN-150-100 Explosion Proof Metal Halide Light is UL Listed Class I & II, Division 1 & 2 and is rated for use in wet and marine environments. This ruggedly constructed unit provides operators with excellent power and efficiency coupled with high versatility. This permanent mount explosion proof metal halide light provides operators with a highly dependable source of powerful light that can be used in a variety of areas and mounted to walls, brackets and any flat surface that will accommodate its adjustable yolk type mount. This unit contains a 150 watt dual ended High Pressure Sodium and is capable of illuminating 20,000 square feet of work space. The 70 watt metal halide lamp produces illumination equivalent to a typical 400 watt halogen bulb while drawing only 150 watts at 1.25 amps. The high pressure sodium lamp produces more light and runs cooler than a 400 watt halogen, resulting in an easier to handle unit and less heat in the workspace. This unit`s durability, easy mounting, high power and the exceptional color rendering of its high pressure sodium lamp make it ideal for close work and hazardous areas where safety, detail and accuracy are critical.  The 150 watt High Pressure Sodium bulb is ideal for dust and wet area locations, since the high pressure sodium light penetrates those airborne particles well.
Click Photos to Enlarge Click Photos to Enlarge Click Photos to Enlarge
This lamp can be easily adjusted up or down and locked into position via a side mounted adjustment knob. The lamp housing is waterproof and constructed of thick copper free aluminum alloy, making it ideal for use in wet and marine environments. The high pressure sodium lamp provides 20,000 square feet with of coverage with exceptional color rendering and object contrast. The EPL-TN-150-100 lamp assembly includes a 150 watt high pressure sodium lamp, internal ballast and aluminum finish reflector in a copper-free cast aluminum housing with a thermoset powder coat finish. The shell, covers and sealed fittings are also made of copper-free aluminum. The lens is constructed of thermal shock and impact resistant tempered glass and the housing contains threaded joints lubricated with non-drying lubricant. The high pressure sodium lamp in this unit has no filament and is thus highly resistant to damage from shocks or impacts, greatly reducing the chances of damage should the be dropped or hit, unlike incandescent lamps which may break or shatter. The lamp is rated at 10,000+ hours of life providing longer service life than typical halogen lamps. The lamp operates with 120 VAC and is connect via an included 100 foot of SOOW cable terminated in an explosion proof 15 amp 5-15 plug. Suggested Applications: Include but are not limited to wastewater treatment plants, refinery tanks, oil and gasoline loading docks, coal pulverizing facilities, munitions storage areas, tunnel projects, utility gas plants, power plant areas, hazardous areas and mining conveyor belts.
Made in the USA Quality Metal Halide Benefits
1. High Efficiency High Pressure Sodium Lamp. 2. 150W High Pressure Sodium Lamp. 3. Rugged Die Cast Aluminum Lamp Housing. 4. 3/4" Shock Resistant Tempered Glass Lens. 5. Copper Free Shell, Covers and Sealed Fittings. 6. Vibration/Impact Resistant Construction. 7. Low Maintenance. 8. Permanent Adjustable Yolk Type Moounting. 9. 100 Foot SOOW Cord w/ EPP-15A EXP Plug. 10. UL Listed for Marine Environments. 1. Long lamp life. 2. High efficiency and low amp draw after initial startup. 3. High durability and reliability. 4. High output and very good color rendering. 5. Vibration and shock resistant. 6. Low maintenance.
