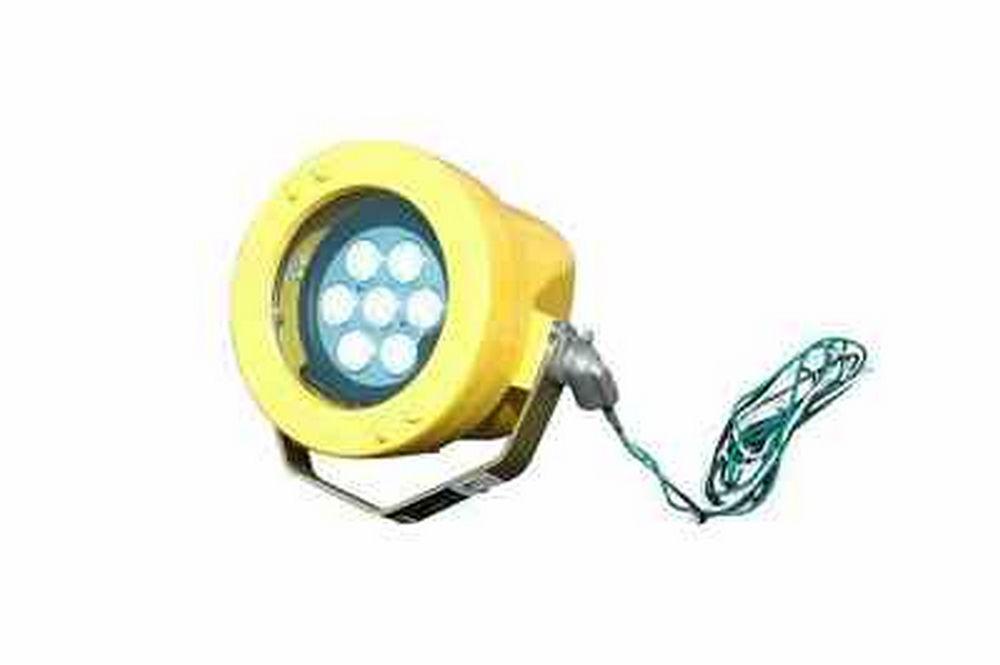

Explosion Proof 39 Watt LED Light - 2540 Lumens - Spot or Flood - Permanent Mount Fixture - C1D1

LARSON ELECTRONICSSKU: PL3-EPL-TN-40W-LED
filler

Price:
Sale price$6,924.99

Description

Specifications / Additional Information
EPL-TN-40W-LED Explosion Proof LED Light Ratings/Approvals
Listing: United States - Canada Class I, Divisions 1 & 2, Groups C,D
Dimensions: W-13 1/4"  D-12 1/2"  H-11 1/2" Class II, Division 1 & 2, Groups F, G
Weight: 21 Lbs Class III, Division 1 & 2
Total Watts: 39 watts UL 1598
Voltage: 120-277 Volts AC UL 1598A - Marine Type (Saltwater)
Lamp Lumens: 2,540 UL 844
Lamp Life Expectancy: 50000+ Hours CSA C22.2 No. 250, 94.0, 213.0, 137.0 & 30.0
Lamp Type: LED NEMA 4X
LED Color: 6000K T6 (85°C) Temperature Rating
Beam Configuration: 28° Spot or 45° Flood
Power Factor: >0.9
Ambient Operating Temp: -20°C to +40°C
Operating Temp Range:T4 rated
Mounting: Permanent Mount Yolk
Wiring: 3 Inch Pigtail
' Product Overview '
Made in the USA The Larson Electronics EPL-TN-40W-LED Low Voltage Portable Explosion Proof LED Light is UL Listed Class 1 & 2, Division 1 & 2, and is rated for use in wet and marine environments. The LED lamp used with this unit provides operators with excellent power and efficiency coupled with high versatility and ease of use. The EPL-TN-40W-LED explosion proof LED light provides 2,540 lumens of light output in a portable and rugged explosion proof lighting package. The 39 watt LED lamp assembly in this unit produces higher quality illumination with better color rendering and contrasting than typical 400 watt halogen lamps while drawing only 39 watts at 0.33 amps at 120V AC. The LED lamp runs cooler than 400 watt halogen lamps, resulting in an easier and safer to handle unit and less heat in the workspace. The LED lamp in this unit produces a brilliant 45 degree flood pattern of light that is ideal for high vibration environments and general illumination in any confined space area (silo, tank or manhole). We also offer a 28° spot configuration for operatos needing an explosion proof LED spotlight The EPL-TN-40W-LED operates on a range of voltages from 120-277V AC 50/60 Hz to provide a lighting solution for areas where explosion proof fixtures are required. This unit`s durability, easy mounting, high power and the good color rendering of its LED lamp make it ideal for close work and hazardous areas where safety, detail and accuracy are critical.

Click Photos to Enlarge Click Photos to Enlarge Click Photos to Enlarge Click Photos to Enlarge
This lamp can be easily adjusted up or down and locked into position via a side mounted adjustment knob. The lamp housing is waterproof and constructed of thick copper free aluminum alloy, making it ideal for use in wet and marine environments. The EPL-TN-40W-LED lamp assembly includes a 39 watt metal LED lamp in a copper-free cast aluminum housing with a thermoset powder coat finish. The shell, covers and sealed fittings are also made of copper-free aluminum. The lens is constructed of thermal shock and impact resistant tempered glass and the housing contains threaded joints lubricated with non-drying lubricant. The LED lamp in this unit has no filament and is thus highly resistant to damage from shocks or impacts, greatly reducing the chances of damage should the be dropped or hit, unlike incandescent lamps which may break or shatter. Durability: This unit incorporates a 39 watt LED lamp assembly and a copper-free cast aluminum housing with a thermoset powder coat finish. The shell, covers and sealed fittings are also made of copper-free aluminum. The lens is constructed of 3/4" thermal shock and impact resistant tempered glass and the housing contains threaded joints lubricated with non-drying lubricant. The LED lamp assembly has no filament and is thus highly resistant to damage from shocks or impacts, greatly reducing the chances of damage should the lamp be dropped or hit, unlike incandescent lamps which may break or shatter. The lamp is rated at 50,000+ hours of life, providing longer service life than typical halogen lamps.
Energy Consumption Comparison
Wattage 39 watts
Amp Draw @ 120V AC 0.33 amps
Amp Draw @ 277V AC 0.14 amps
Lamp Life Expectancy 50,000 hours
Color Temperature 5500K
Operation cost per year (12hs/day @ 12c/kWh) $20.50
Suggested Applications: include but are not limited to wastewater treatment plants, refinery tanks, oil and gasoline loading docks, coal pulverizing facilities, munitions storage areas, tunnel projects, utility gas plants, power plant areas, hazardous areas and mining conveyor belts.
Made in the USA Quality LED Benefits
1. High Efficiency and Output 39 Watt LED lamp. 2. 39 Watt LED Lamp Provides Cooler Operation.. 3. Rugged Die Cast Aluminum Lamp Housing. 4. 3/4" Shock Resistant Tempered Glass Lens. 5. Copper Free Shell, Covers and Sealed Fittings. 6. Vibration/Impact Resistant Construction. 7. Low Maintenance. 8. Permanent Adjustable Yolk Type Moounting. 9. 50,000+ Hour Lamp Life. 10. UL Listed for Marine Environments. 1. Long lamp life. 2. High efficiency and low amp draw after initial startup. 3. High durability and reliability. 4. High output and very good color rendering. 5. Vibration and shock resistant. 6. Low maintenance.
