Explosion Proof 70 Watt Metal Halide - Class I & II, Division I & II - Permanent Mount

LARSON ELECTRONICSSKU: PL3-EPL-TN-70
filler

Price:
Sale price$3,633.99

Description

Specifications / Additional Information
EPL-TN-70 Metal Halide U.L. Ratings
UL Listing: United States - Canada Class I & II, Division 1 & 2, Groups C,D
Dimensions: W-13 1/4"  D-12 1/2"  H-11 1/2" Class II Division 1 & 2, Groups F, G
Weight: 19 Lbs Class III
Total Watts: 70 Watts UL 781 portable HAZLOC use
Voltage: 120 Volts AC, .58 Amp Draw   UL Certified- U.S - CSL
Coverage: 7,000 Square Feet
Lamp Life Expectancy: 25000+ Hours
Lamp Type: Metal Halide
Operating Temp Range:T4 rated
Mounting: Permanent Mount Yolk
Wiring: 3 Foot Pigtail
Beam Lux: 8500@ 1 Meter 1250@ 3 Meters

' Product Overview '

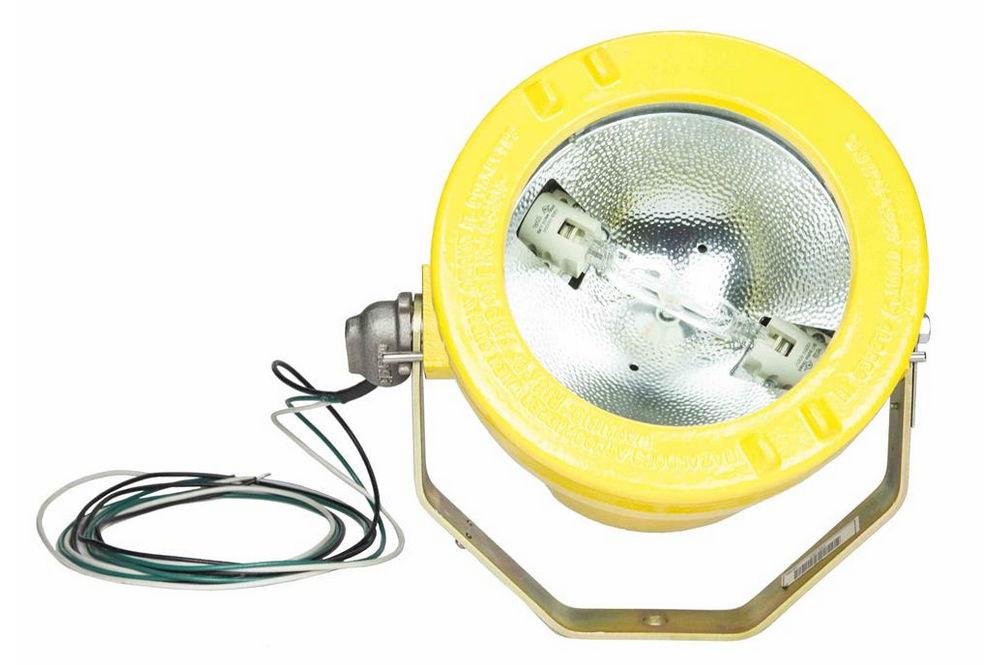

Made in the USA The Larson Electronics EPL-TN-70 Explosion Proof Metal Halide Light is UL Listed Class I & II, Division 1 & 2 and is rated for use in wet and marine environments. This ruggedly constructed unit provides operators with excellent power and efficiency coupled with high versatility. This permanent mount explosion proof metal halide light provides operators with a highly dependable source of powerful light that can be used in a variety of areas and mounted to walls, brackets and any flat surface that will accommodate its adjustable yolk type mount. This unit contains a 70 watt dual ended metal halide lamp and is capable of illuminating 7,000 square feet of work space. The 70 watt metal halide lamp produces illumination equivalent to a typical 400 watt halogen bulb while drawing only 70 watts at .58 amps. The metal halide lamp produces more light and runs cooler than a 400 watt halogen, resulting in an easier to handle unit and less heat in the workspace. This unit`s durability, easy mounting, high power and the good color rendering of its metal halide lamp make it ideal for close work and hazardous areas where safety, detail and accuracy are critical.  While the metal halide is the best choice for most areas and is ideal for dust and wet area locations.
Click Photos to Enlarge Click Photos to Enlarge Click Photos to Enlarge
This lamp can be easily adjusted up or down and locked into position via a side mounted adjustment knob. The lamp housing is waterproof and constructed of thick copper free aluminum alloy, making it ideal for use in wet and marine environments. The metal halide (or high pressure sodium) lamp provides 7,000 square feet of coverage with good color rendering and object contrast. The EPL-TN-70MH lamp assembly includes a 70 watt metal halide bulb, internal ballast and aluminum finish reflector in a copper-free cast aluminum housing with a thermoset powder coat finish. The shell, covers and sealed fittings are also made of copper-free aluminum. The lens is constructed of thermal shock and impact resistant tempered glass and the housing contains threaded joints lubricated with non-drying lubricant. The metal halide lamp in this unit has no filament and is thus highly resistant to damage from shocks or impacts, greatly reducing the chances of damage should the be dropped or hit, unlike incandescent lamps which may break or shatter. The lamp is rated at 10,000+ hours of life providing longer service life than typical halogen lamps. The lamp operates with 120 VAC and is connect via an included sealed wire access with 3 foot pigtail. Suggested Applications: include but are not limited to wastewater treatment plants, refinery tanks, oil and gasoline loading docks, coal pulverizing facilities, munitions storage areas, tunnel projects, utility gas plants, power plant areas, hazardous areas and mining conveyor belts.
Made in the USA Quality Metal Halide Benefits
1. High Efficiency Metal Halide lamp. 2. 70 Watt Output Comparable to 400W Halogen. 3. Rugged Die Cast Aluminum Lamp Housing. 4. 3/4" Shock Resistant Tempered Glass Lens. 5. Copper Free Shell, Covers and Sealed Fittings. 6. Vibration/Impact Resistant Construction. 7. Low Maintenance. 8. Permanent Adjustable Yolk Type Mounting. 9. 3 Foot Pigtail with Sealed Wire Access. 10. UL Listed for Marine Environments. 1. Long lamp life. 2. High efficiency and low amp draw after initial startup. 3. High durability and reliability. 4. High output and very good color rendering. 5. Vibration and shock resistant. 6. Low maintenance.
