150W Explosion Proof LED Light Tower - 9.4' to 25.4' - C1D1, C2D1 - 100' SOOW Cord w/ EXP Plug

150W Explosion Proof LED Light Tower - 9.4' to 25.4' - C1D1, C2D1 - 100' SOOW Cord w/ EXP Plug

$17,658.00 CAD
$17,658.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications / Additional Information
EPL-TP.LM-23.5-7.5-1X150RT-100C-EPP - Explosion Proof LED Light Tower Ratings/Approvals
Listing: United States - Canada Listed for United States and Canada
Unit Type: Explosion Proof LED Light Tower Class I, Divisions 1&2, Groups C,D
Tower Length w/ Light Head: 9.4` to 25.4` Class II, Divisions 1&2, Groups E,F,G
Tower Length w/o Light Head: 7.4` to 23.4` Class III, Divisions 1&2
Light Head Dimensions: 14"H x 16"W x 5"D Certified to C22.2 No. 250.0
Voltage: 100-277V AC 50/60Hz Certified to UL 844 Ed. 13
Total Watts: 150W Certified to UL 1598
Total Lumens: 21,000 Certified to C22.2 No. 137 Rev 2009
Luminous Efficacy: 140 Lm/W Direct Replacement for 400W MH Towers
Lamp Life: 60,000+ Hours Factory Sealed Light Fixture
Color Temp: 5,600K T5 Temperature Rating
Color Rendering Index: >75 CRI Paint Spray Booth Approved
Beam Angle: 60° or 125° IEC 60529 Tested
Lighting Configuration: Flood Pattern IP67 Rated Waterproof
Power Efficiency: >95% LEL Approved
Power Factor: 0.992 Multiple Driver Banks
Ambient Operating Temp Range: -50°C to +65°C 80% Lumen Retention after 60,000 Hours
Operating Temp Rating: T5 3.5kV Surge Protection (NTC Circuit)
Material: Aluminum
Light Head Finish: Epoxy Powder Coated - Grey
Lens Material: Hardened Borosilicate Glass
Gasket Material: Silicone
Mounting: Mast w/ Flat Base
Wiring: 100` 16/3 SOOW w/ EXP Cord Cap
Cord Cap Options: 5-15P, 5-20P, 6-20P
Light Mast Specs
Stages: 4
Outriggers: Tripod, (3) Foldable Legs
Operation: Manual Crank
Winch Capacity: 1,200 lbs
Weight: -
' Product Overview '

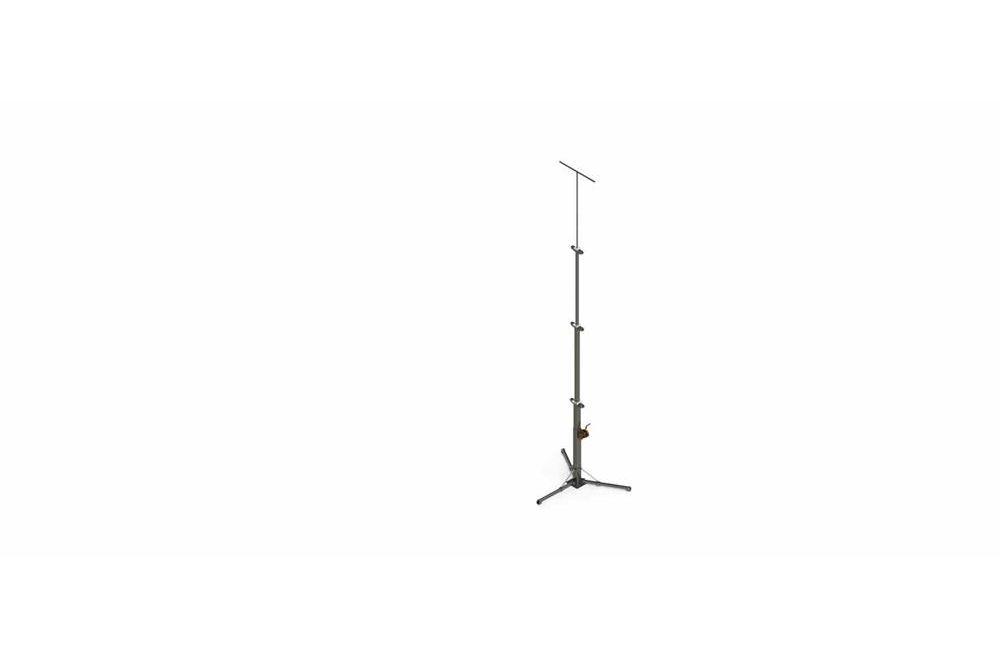

The EPL-TP.LM-23.5-7.5-1X150RT-100C-EPP from Larson Electronics is an Explosion Proof LED Light Tower that is designed for elevated illumination in flammable work sites, hazardous locations and industrial facilities. This 150-watt unit is extendable between 9.4` and 25.4`. Stabilization is provided by a flat base and foldable tripod outriggers. The four-stage LED light mast comes with 100` of 16/3 SOOW cord and an explosion proof cord cap (selectable below). The EPL-TP.LM-23.5-7.5-1X150RT-100C-EPP Class I, Divisions 1 & 2; and Class II, Divisions 1 & 2 explosion proof light tower provides 21,000 lumens of high quality light while drawing only 150 watts. This unit can be extended to 25.4` and collapsed to 9.4` using a manual-crank winch. Operators may remove the light head assembly during storage and transportation. A special heat dissipating design in conjunction with LED technology helps this light tower to achieve an excellent 60,000-hour rated lifespan with 80% lumen retention. Light Tower: The EPL-TP.LM-23.5-7.5-1X150RT-100C-EPP features four stages and is supported by a flat base for sturdy operation. With the LED light head, the light tower measures from 9.4` (collapsed) to 25.4` (extended). Without the LED light head, the light tower measures from 7.4` (collapsed) to 23.4` (extended). For extra stability, the unit is equipped with tripod outriggers, which consists of three foldable legs, measuring 37.41" (2" x 2" x 1/8" thick). Operators can use a 1,200-lb rated winch for manual deployment. Constructed of aluminum, the light tower`s stages come with the following measurements: base stage - 5" x 5" x 3/16" thick; 3rd stage - 4" x 4" x 1/8" thick; 2nd stage- 3" x 3" x 1/8" thick; and top stage- 2" x 2" x 1/8" thick.
Click Photo to Enlarge
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. LED Drivers: Even in LED fixtures, heat is the single largest factor in premature light failure and color shifting. As a result, many manufacturers reduce the output of their LEDs in order to reduce the amount of heat produced. Rather than lower light output or quality, Larson Electronics addresses this problem with the addition of electronic LED drivers. These internal drivers provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. This not only reduces the energy dissipation, effectively lowering the operating temperature of the fixture, but also prevents AC over-voltage and short circuit loading making this fixture virtually maintenance free. Because the electronic drivers allow the EPL-TP.LM-23.5-7.5-1X150RT-100C-EPP to run at a cooler internal temperature and regulates the electrical current, energy efficiency and LED service hours are maximized while at the same time reducing operating costs and downtime incurred from the frequent servicing intervals required with other hotter running lights. The explosion proof LED light mast features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. With this series of explosion proof lamps from Larson Electronics, each LED fixture contains six individual LED boards configured in a series of banks. Each bank contains two LED on a single board with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate.
Click Photos to Enlarge
60° Beam Angle 125° Beam Angle 140° Beam Angle
Beam Angles: When used as a portable lighting solution, the varying beam angles are each individually ideal for several environments. The 60° beam provides the most intense beam of the three options. It is perfect for narrow, confined spaces and is ideally suited for tank cleaning purposes. It offers focused light to provide ample illumination to tight work spaces and other environments. The 125° beam offers a more diffused source of light that is also less intense in brightness. It is a great general area work light and performs well when used for outdoor illumination. The 140° beam offers a very wide lighting pattern and is ideal for situations where lighting distance is not a concern, but illumination of a wider area and even light distribution is. The 140° beam is great for situations that call for working in close proximity to lights such as in a paint booth. This unit produces 21,000 lumens with a color temperature of 5600K standard and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. We also offer both 3000K warm white and 4500K natural white color temperature options (longer lead times may apply for non-standard temperatures). This lamp uses Cree LED units that have been chosen for their high lumen per watt ratio and extreme longevity. These Cree LEDs generate a robust 140 lumens per watt effective lumen output and have a 80% lumen retention at 60,000 hours, giving them better efficiency and operational life than traditional light sources. Field Serviceability: This explosion proof LED light tower is field serviceable. All major internal components can be purchased from Larson Electronics and installed by a licensed electrician with basic tools. With most explosion proof fixtures, the fixture must be returned to the manufacturer for repair work, which presents downtime and long turn around times for repair work. Larson Electronics addresses this issue with field serviceability, allowing operators to perform service work without having to return the fixture to the manufacturer in the event of damage or failure. The explosion proof LED light head is paint spray booth listed, IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp gives this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
Energy Consumption Comparison
Metal Halide LED
Wattage 400 watts 150 watts
Amp Draw @ 120V AC 3.83 amps 1.25 amps
Amp Draw @ 220V AC 2.09 amps 0.68 amps
Amp Draw @ 240V AC 1.92 amps 0.63 amps
Amp Draw @ 277V AC 1.66 amps 0.54 amps
Amp Draw @ 12V DC 38.33 amps 12.5 amps
Amp Draw @ 24V DC 19.12 amps 6.25 amps
Lamp Life Expectancy 20,000 hours 60,000+ hours
Operation cost per year (12hs/day @ 12c/kWh) $241.78 $78.84
Each LED light fixture has the potential to save $150.00+ per year in electricity alone, not including maintenance costs, operational downtime, reduced productivity, HVAC loads, or carbon footprint. When retrofitting an entire facility with 100s of light fixtures, the return on investment of LED over metal halide becomes evident.
Voltage: This explosion proof LED mast is universal voltage capable and can be operated with 100-277V AC, 50/60 Hz without modifications to the fixture. A low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 volts is also available. 18-48V AC/DC voltage models are available for network systems and marine vessels. We also offer an additional 347-480V high voltage, 125-250V DC, and 0-10V dimmable versions of this explosion proof LED light fixture.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: The EPL-TP.LM-23.5-7.5-1X150RT-100C-EPP is equipped with 100` of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light tower will occur. Suggested Applications: The EPL-TP.LM-23.5-7.5-1X150RT-100C-EPP is approved for use within environments where flammable or combustible gases, vapors, dusts, fibers, and flying exist or stand the potential to exist, and is ideal for a wide variety of applications. Applications include but not limited to aircraft maintenance, alcohol processing, aerospace, chemical manufacturing, coke processing, cold storage, compressed natural gas (CNG) facilities, cranes, cryogenics, distilleries, food processing (with food grade gasketed polycarbonate lens: ), fuel storage, gas processing plants, grain processing, laboratories, liquefied natural gas (LNG) facilities, liquid propane gas (LPG), manufacturing, marine vessels, methane production, mining, offshore, oil drilling rigs, oil refineries, paint spray booths, paper processing, petrochemical, pharmaceuticals, power plants, production refineries, sand blast cabinets, sewage and septic tanks, shipyards, solvent and cleaning areas, storage facilities, tank farms, tankers, textile, washdown areas, waste treatment plants, and woodworking. .
