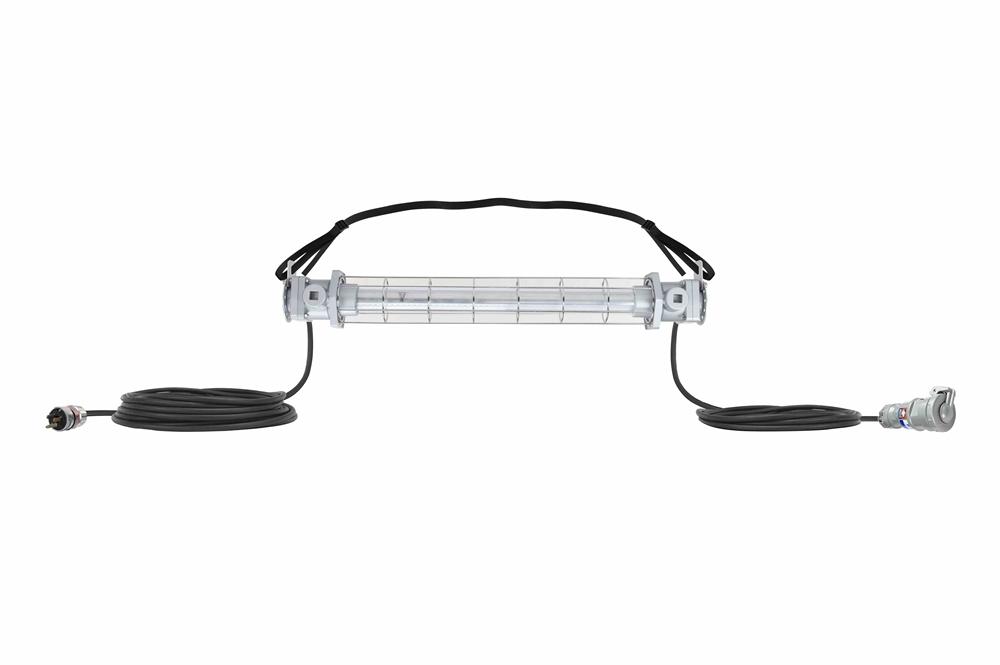

40W Explosion Proof Linear LED Light - 5400 lms - Daisy Chain - Adj Nylon Strap/Wire Guard

LARSON ELECTRONICSSKU: PL3-EPL-WDL-24-LED-16.3-5C.25C-EPPC
filler

Price:
Sale price$2,242.99

Description

Specifications / Additional Information
EPL-WDL-24-LED-16.3-5C.25C-EPPC Explosion Proof Linear LED Light Ratings/Approvals
Listing: NRTL Listed for United States, Canada, Europe, Asia Class I, Divisions 1 & 2, Groups C and D
Lamp Technology: LED Class II, Divisions 1 & 2 Groups E, F and G
Dimensions: 30"L x 5"W x 3"H Class III, Divisions 1 & 2
Weight: - T5 Temperature Rating
Voltage: Universal 100-277V AC, 50/60Hz Paint Spray Booth Approved
Total Watts: 40W Factory Sealed Light Fixture
Lumens: 5,400 lms Wire Guard
Luminous Efficacy: 135 Lm/W
Lamp Life: 60,000+ Hours
Color Temp: 5000K, 4500K, 3000K
Color Rendering Index: >75 CRI
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Angle: 100° Horizontal, 140° Vertical
Lighting Configuration: Wide Flood Pattern
Power Efficiency: >95%
Power Factor:  0.992
Amperage: 0.33A @ 120V, 0.17 @ 240V, 0.14 @ 277V
Ambient Operating Temp Range: -50°C to +65°C
Operating Temp Rating: T5
Housing Material: Copper Free Cast Aluminum
Lens Material: Hardened Borosilicate Glass
Mounting: Adjustable/Removable Nylon Straps at Both Ends of Fixture
Wiring: 25' 16/3 SOOW Line-in Cord w/ EXP Cord Cap, 5' 16/3 SOOW Line-out Cord w/ 20A EXP Connector for Daisy Chain
Cord Cap Options: 5-15P, 5-20P or 6-20P
' Product Overview '
The Larson Electronics EPL-WDL-24-LED-16.3-5C.25C-EPPC Explosion Proof Linear LED Light provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. Equipped with adjustable and removable nylon straps for easy mounting, the 40-watt LED light offers 5,400 lumens of output and features daisy chain capabilities. The explosion proof LED light has a T5 temperature rating and is approved for use in United States, Canada, Europe, and Asia markets. This Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 linear explosion proof light fixture provides 5,400 lumens of high quality light while only drawing 40 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention at the 60,000 hour mark. Light weight and a low profile makes this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. The cast aluminum body gives this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics. The LED assembly is protected behind a tempered borosilicate glass tube that is protected by an aluminum wire guard to deter damage to the light fixture. Instead of using diffused glass, optics, or reflectors to distribute the light, Larson Electronics has positioned the boards within the fixture to provide a wide area light without sacrificing quality or light output. Two offset LED assemblies within the fixture allow this explosion proof linear lamp to provide a brilliant 100° horizontal beam spread and 140° vertical beam spread while achieving a 5,400 lumen output to maintain a small form factor. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. This LED light produces 5,400 lumens with a color temperature of 5000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. We also offer a 3000K warm white and 4500K natural white color temperature options (longer lead times may apply for non-standard temperatures). Voltage: This light is universal voltage capable within a range of 100-277V AC 50/60Hz for standard electrical circuits. We also offer 347V AC and 480V AC single phase configurations of this LED light. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This explosion proof LED fixture is equipped with 25 feet of 16/3 chemical and abrasion resistant SOOW line-in cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. For daisy chain connections, the unit contains 5 feet of 16/3 SOOW line-out cord with a 20-amp explosion proof connector. Mount: The EPL-WDL-24-LED-16.3-5C.25C-EPPC is equipped with two adjustable and removable nylon straps, which are located at both ends of the fixture. The heavy-duty straps can be used to mount the explosion proof LED light with a wide range of configurations. Operators may also choose to remove the straps for installation in tight or inaccessible and overhead spaces. Suggested Applications: Paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, gas processing plants, chemical manufacturing, waste water treatment plants, gas processing plants, offshore applications, oil tankers, mud tanks, sand mines, mining, cold weather applications.
