100 Watt Explosion Proof LED Wall Pack Light - Surface Mount - 11,667 Lumens - C1D1 - 25' Cord w/ Explosion Proof Cord Cap

LARSON ELECTRONICSSKU: PL3-EPL-WPLED-100W-RT-25C-EPP
filler

Price:
Sale price$5,880.00

Description

Specifications / Additional Information
EPL-WPLED-100W-RT-25C-EPP - Explosion Proof LED Wall Pack Ratings/Approvals
Lamp Type: Cree LED Class I Division 1, Groups C and D
Dimensions: 18"H x 16"W 6"D Class I Division 2, Groups C and D
Weight: 30 lb Class II, Divisions 1 & 2, Groups E, F and G
Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC Class III, Divisions 1 & 2
Total Watts: 100W T5 Temperature Rating
Lumens: 11,667 NRTL Certified to UL844 and C22.2 Standards
Luminous Efficacy: 116.67 Lm/W Paint Spray Booth Approved
Lighting Configuration: Flood Pattern LEL Approved
Temp Rating: -50°C to +85°CC IP67 Rated Waterproof
Color Temp: 5000K, 4000K, or 3000K Multiple Driver Banks
Color Rendering Index: >75 80% Lumen Retention after 60,000 Hours
Lamp Life: 60,000+ Hours
Mounting: Adjustable Wall / Flat Surface Mount Special Orders - Requirements
Wiring: 25' 16/3 SOOW Cord w/ Explosion Proof Cord Cap
Cord Cap Options: 5-15P, 5-20P or 6-20P



' Product Overview '

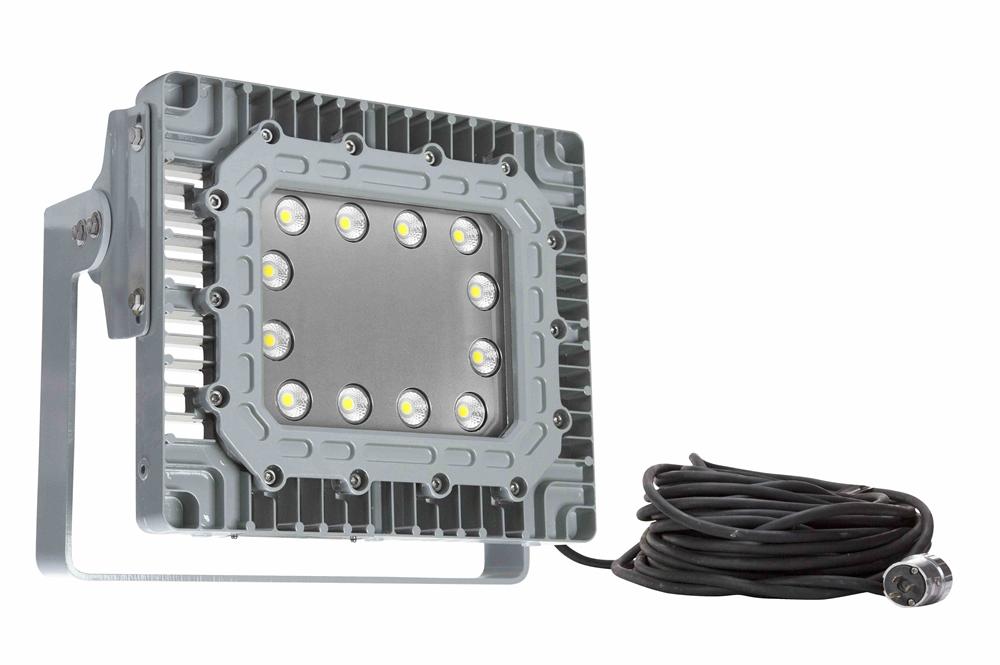

Made in the USA The Larson Electronics EPL-WPLED-100W-RT-25C-EPP Explosion Proof LED Wall Pack Light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures. This Class I Divisions 1 & 2, Class II Divisions 1 & 2 explosion proof LED wall pack light fixture provides 11,667 of high quality light while drawing only 100 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.
Click Photo to Enlarge
The explosion proof wall pack LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twelve individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. This light is universal voltage capable and can be operated with 100-277V AC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This explosion proof wall pack light is equipped with 25 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur. The EPL-WPLED-100W-RT-25C-EPP light produces 11,667 lumens with a color temperature of 5000K, 4000K, or 3000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The EPL-WPLED-100W-RT-25C-EPP offers several mounting options including ceiling mounting, pendant mounting, wall mounting and cable mounting. The standard version of this explosion proof LED fixture includes a trunnion mount wall/flat surface bracket.
