150W Ceiling Mount Explosion Proof High Bay LED Light - 21,000 lms - Dust Shroud - Food Safe/NSF Compliant


Sale price$3,380.99


Specifications / Additional Information
EPLC2-HB-150LED-RT-NSF-DM-CM - High Bay Explosion Proof LED Light Ratings/Approvals
Listing: NRTL Listed for United States, Canada Class I, Division 2, Groups C and D
Lamp Technology: Cree LED Class II, Divisions 1 & 2, Groups E,F,G
Dimensions: - Class III, Divisions 1 & 2
Weight: - ATEX EX II 3G Exd IIB T5 Ga
Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC ATEX EX II 3D Exd IIA T5 Da
Total Watts: 150W NRTL Certified to UL 844 Ed. 13
Total Lumens: 21,000 lms NRTL Certified to UL 1598
Luminous Efficiency: 140 Lm/W NRTL Certified to C22.2 No. 137 Rev 2009
Lamp Life: 60,000+ Hours NRTL Certified to C22.2 No. 250.0
Color Temp: 5000K, 4000K, 3000K NRTL Certified to ATEX 94/9/EC
Color Rendering Index: >75 CRI T5 Temperature Rating
Lamp Type: - Paint Spray Booth Approved
Lamp Base: - IEC 60529 Tested
Replacement Lamp: - IP67 Rated Waterproof
Beam Angle: 60° or 125° LEL Approved
Lighting Configuration: Flood Pattern Multiple Driver Banks
Power Efficiency: >95% 80% Lumen Retention after 60,000 Hours
Power Factor: 0.992 Factory Sealed Light Fixture
Ambient Operating Temp Range: -50°C to +65°C Recommended 15` to 40` Mounting Height
Operating Temp Rating: T5 NSF Compliant
Housing Material: Copper Free Cast Aluminum
Lens Material: Hardened Borosilicate Glass
Gasket Material: Silicone
Protection: Food Safe Lens, Dust Shroud
Mounting: Ceiling Mount Junction Box
Wiring: (4) 3/4" NPT Hubs
' Product Overview '

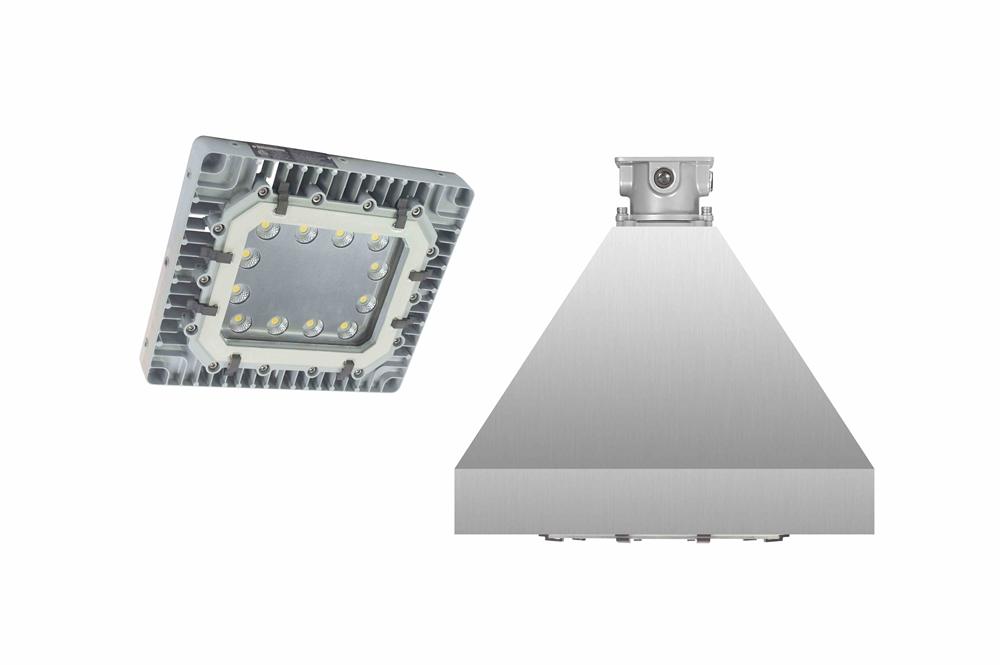

The Larson Electronics EPLC2-HB-150LED-RT-NSF-DM-CM Ceiling Mount Explosion Proof High Bay light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries in food processing sites. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older incandescent, metal halide and high pressure sodium lights.   This Class I, Division 2 and Class II, Divisions 1 & 2 explosion proof light fixture provides 21,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. This NSF compliant food safe light contains a gasketed polycarbonate lens that covers the faceplate of the fixture and prevents any glass from being exposed. The gasket is made from food grade materials allowing this fixture to be installed in Group G environments. A heavy-duty pyramid shaped dome prevents dust from accumulating on top of the fixture. With the dust shroud, the unit can still be hosed down making the explosion proof light ideal for food processing applications. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. This explosion proof LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twelve individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate.
Click Photos to Enlarge
60° Beam Angle 125° Beam Angle 140° Beam Angle
Beam Angles: When used as a portable lighting solution, the varying beam angles are each individually ideal for several environments. The 60° beam provides the most intense beam of the three options. It is perfect for narrow, confined spaces and is ideally suited for tank cleaning purposes. It offers focused light to provide ample illumination to tight work spaces and other environments. The 125° beam offers a more diffused source of light that is also less intense in brightness. It is a great general area work light and performs well when used for outdoor illumination. The 140° beam offers a very wide lighting pattern and is ideal for situations where lighting distance is not a concern, but illumination of a wider area and even light distribution is. The 140° beam is great for situations that call for working in close proximity to lights such as in a paint booth. This light is universal voltage capable and can be operated with 100-277V AC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics. This LED light produces 21,000 lumens with a color temperature of 5000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. We also offer a 3000K warm white and 4000K natural white color temperature options (longer lead times may apply for non-standard temperatures). The EPLC2-HB-150LED-RT-NSF-DM-CM offers several mounting options including ceiling mounting, pendant mounting, wall mounting and cable mounting. The standard version of this explosion proof LED fixture includes a flat surface ceiling mount with four 3/4" NPT entries.
