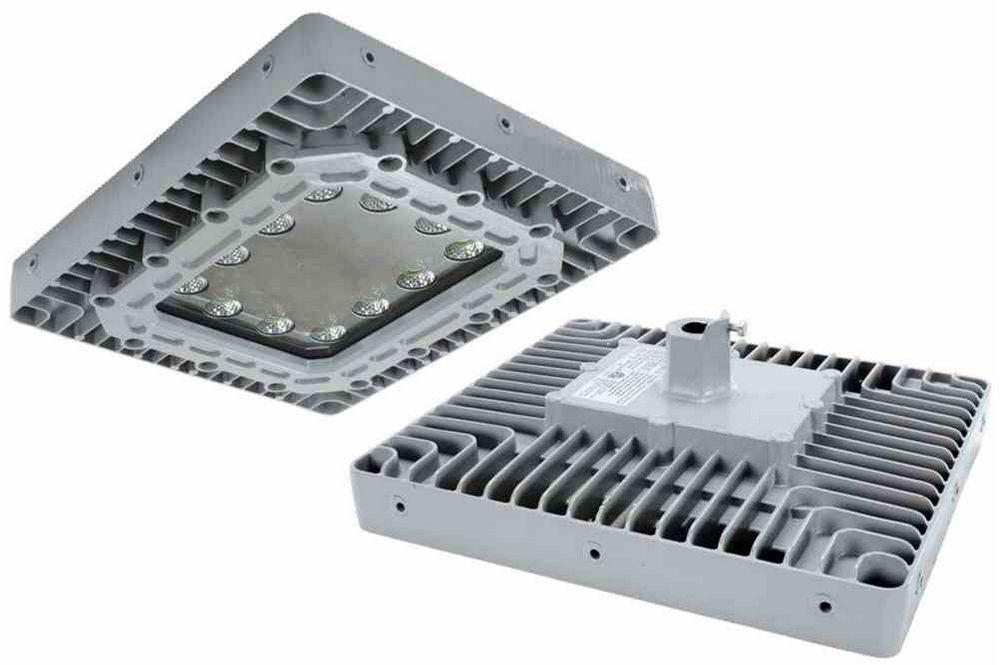

150W Explosion Proof High Bay LED Light Fixture - C1D1&2 - C2D1&2 - 17,500 Lumens - 125° Beam

LARSON ELECTRONICSSKU: PL3-EPLC2-HB-155W-LED-PND-125DB
filler

Price:
Sale price$4,279.99

Description

Specifications / Additional Information
EPLC2-HB-155W-LED-PND-140DB - C1D1 High Bay LED Light Ratings/Approvals
Listing: United States - Canada Listed for United States and Canada
Lamp Type: Cree LED Class I, Divisions 1 & 2, Groups C and D
Dimensions: 14"H x 16"W 5"D (Square) or 24"OD x 5"D (Round) Class II, Divisions 1 & 2, Groups E,F,G
Weight: 32 lbs Class III, Divisions 1 & 2
Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC - 347-480V Available Certified to UL 844 Ed. 13
Total Watts: 150W Certified to UL 1598A
Total Lumens: 17,500 Certified to C22.2 No. 137 Rev 2009
Luminous Efficacy: 116.67 Lm/W Certified to C22.2 No. 250.0
Lamp Life: 60,000+ Hours Certified to C22.2 No. 30-M-1986 Rev 2012
Color Temp: 5000K, 4000K, 4500K, 3000K T5 Temperature Rating
Color Rendering Index: >85 CRI Paint Spray Booth Approved
Beam Angle: 125° IEC 60529 Tested
Lighting Configuration: Flood Pattern IP67 Rated Waterproof
Power Efficiency: >95% LEL Approved
Power Factor: 0.992 Multiple Driver Banks
Ambient Operating Temp Range: -50°C to +65°C 80% Lumen Retention after 60,000 Hours
Operating Temp Rating: T5 Factory Sealed Light Fixture
Housing Material: Copper Free Cast Aluminum Recommended 15` to 40` Mounting Height
Housing Finish: Epoxy Powder Coated - Grey NEMA 4X
Lens Material: Hardened Borosilicate Glass - Impact Resistant ABS Type
Gasket Material: Silicone
Mounting: 3/4€ Pendant & Rotatable Swivel Mount - Both Ship w/ Fixture
Wiring: 10` 16/3 SOOW w/ Flying Leads
Wiring Hub: 3/4" NPT
LED Driver Specs
Input Voltage: 100-277 Volts AC
Input Current: 1.8A Max
Output Voltage: 54V Max
Output Current: 2.1A
Warranty: Yes - 5 Years* - 10 Year / 100,000 Lumen Available**
' Product Overview '
The Larson Electronics EPLC2-HB-155W-LED-PND-125DB Explosion Proof High Bay light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older incandescent, metal halide and high pressure sodium lights. This Class I Divisions 1 & 2, Class II Divisions 1 & 2 explosion proof light fixture provides 17,500 of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. The EPLC2-HB-155W-LED-PND-125DB features a 125° beam angle ideal for general area work light and performs well when used for outdoor illumination.
Available in a Round or Square Form Factor
The explosion proof LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twelve individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Beam Angle: The EPLC2-HB-155W-LED-PND-125DB features a 125° beam that provides a more diffused source of light that is also less intense in brightness. It is a great general area work light and performs well when used for outdoor illumination. Larson Electronics offers the EPLC2-HB-155W-LED-PND-125DB in two form factors, a square and a round housing. The square housing is a smaller form factor, while the round form factor resembles traditional style light fixtures. Some customers do not like the square look of many integrated LED light fixtures, and prefer a round style fixture to replace the round traditional metal halide and high pressure sodium fixtures. Because of this, we offer both. The square fixture is a 14" by 16" by 5" low profile rectangle housing. The round fixture is a 24" OD by 5" low profile circular housing. Both light fixtures provide even light distribution comparable to 400 watt metal halide circular light fixtures. This light is universal voltage capable and can be operated with 100-277 VAC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
Energy Consumption Comparison
Metal Halide LED
Wattage 400 watts 150 watts
Amp Draw @ 120V AC 3.83 amps 1.25 amps
Amp Draw @ 220V AC 2.09 amps 0.68 amps
Amp Draw @ 240V AC 1.92 amps 0.63 amps
Amp Draw @ 277V AC 1.66 amps 0.54 amps
Amp Draw @ 12V DC 38.33 amps 12.5 amps
Amp Draw @ 24V DC 19.12 amps 6.25 amps
Lamp Life Expectancy 20,000 hours 50,000+ hours
Operation cost per year (12hs/day @ 12c/kWh) $241.78 $78.84
Each LED light fixture has the potential to save $150.00+ per year in electricity alone, not including maintenance costs, operational downtime, reduced productivity, HVAC loads, or carbon footprint. When retrofitting an entire facility with 100s of light fixtures, the return on investment of LED over metal halide becomes evident.
This LED light produces 17,500 lumens with a color temperature of 5000K and a color rendering index of 85 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. We also offer a 3000K,4000K, and 4500K color temperature options (longer lead times may apply for non-standard temperatures). The EPLC2-HB-155W-LED-PND-125DB offers several mounting options including ceiling mounting, pendant mounting, wall mounting and cable mounting. The standard version of this explosion proof LED fixture includes a pendant mount and a surface mount option.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MH. 5. Retains 80% lumen output after 60,000 operating hours. 6. Powder coated aluminum fixture body. 7. Pendant and Swivel Bracket mount included 8. Low profile - Light weight 9. 17,500 Lumen output from 150 watts 1. 60,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off - No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
