100 Watt Explosion Proof LED Flood Light - Surface Mount - 11,667 Lumens - C1D2 / C2D1

LARSON ELECTRONICSSKU: PL3-EPLC2-LED-100W-RT
filler

Price:
Sale price$3,644.99

Description

Specifications / Additional Information
EPLC2-LED-100W-RT Explosion Proof LED Flood Light Ratings
Listing: United States - Canada Listed for United States and Canada
Lamp Type: LED Class I, Divisions 2, Groups C and D
Dimensions: 14"H x 16"W 5"D Class II, Divisions 1 & 2, Groups E,F,G
Weight: 28lbs Class III, Divisions 1 & 2
Voltage: Multi- 100-277 VAC, 50/60Hz cETL Certified to UL844 and C22.2 Standards
Total Watts: 100W Certified to UL 844 Ed. 13
Total Lumens: 11,667 Certified to UL 1598
Luminous Efficiency: 116.67 Lm/W Certified to C22.2 No. 137 Rev 2009
Lamp Life: 60,000+ Hours Certified to C22.2 No. 250.0
Color Temp: 6000K, 70-CRI. T5 Temperature Rating
Color Rendering Index: >75 CRI Paint Spray Booth Approved
Beam Angle: 60° or 125° IEC 60529 Tested
Lighting Configuration: Flood Pattern IP67 Rated Waterproof
Power Efficiency: >95% LEL Approved
Power Factor: 0.992 Multiple Driver Banks
Amperage: 0.83A @ 120V, 0.41 @ 240V, 0.36 @ 277V 80% Lumen Retention after 60,000 Hours
Ambient Operating Temp Range:-50° C to +65°C Factory Sealed Light Fixture
Operating Temp Rating: T5
Housing Material: Copper Free Cast Aluminum
Lens Material: Hardened Borosilicate Glass
Gasket Material: Silicone
Mounting: Adjustable flat surface mount
Wiring: 10` 16/3 SOOW w/ Flying Leads
Wiring Hub: 3/4" NPT
Temp Rating: T5 -50C to +85C
' Product Overview '

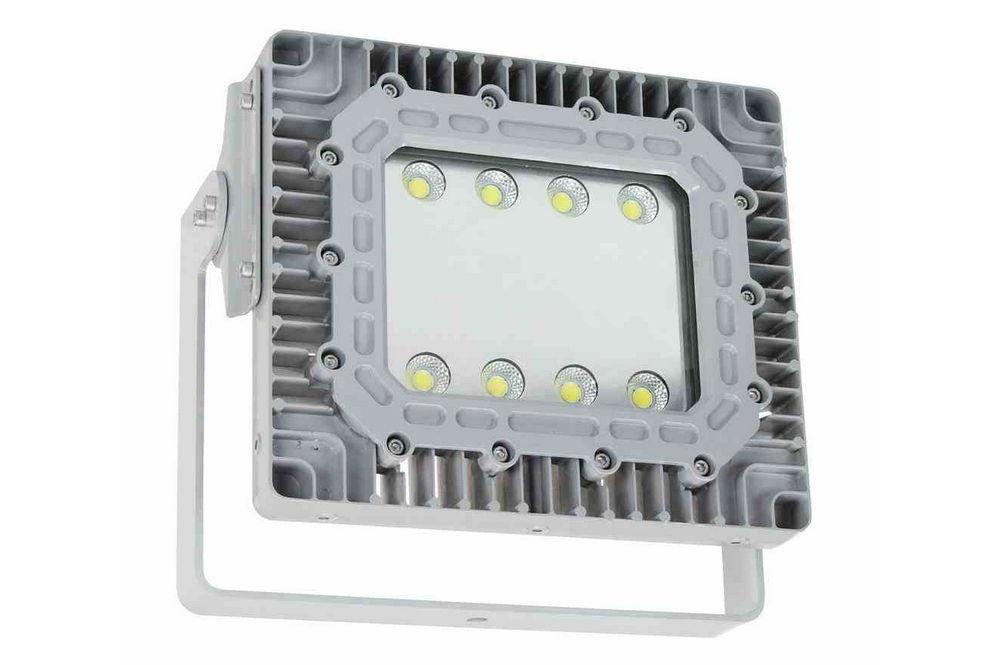

The Larson Electronics EPLC2-LED-100W-RT Explosion Proof LED Flood Light provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures. This Class 1 Division 2, Class 2 Division 1 & 2 explosion proof LED flood light fixture provides 11,667 lumens of high quality light while drawing only 100 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.
Click Photo to Enlarge
The explosion proof LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains eight individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate. This light is multi-voltage capable and can be operated with 100-277 VAC, 50/60Hz without any need for a special ballast. The aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 11,667 lumens with a color temperature of 6000K and a color rendering index of 70 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The EPLC2-LED-100W-RT offers an adjustable mounting system that this fixture to be mounted to any flat surface including walls and ceilings.
Energy Consumption Comparison
Metal Halide LED
Wattage 400 watts 100 watts
Amp Draw @ 120V AC 3.83 amps .83 amps
Amp Draw @ 220V AC 2.09 amps 0.45 amps
Amp Draw @ 240V AC 1.92 amps 0.42 amps
Amp Draw @ 277V AC 1.66 amps 0.36 amps
Amp Draw @ 12V DC 38.33 amps 8.3 amps
Amp Draw @ 24V DC 19.12 amps 4.17 amps
Lamp Life Expectancy 20,000 hours 50,000+ hours
Operation cost per year (12hs/day @ 12c/kWh) $241.78 $52.56
Each LED light fixture has the potential to save $150.00+ per year in electricty alone, not including maintainence costs, operational downtime, reduced productivity, HVAC loads, or carbon footprint. When retrofitting an entire facility with 100s of light fixtures, the return on investment of LED over metal halide becomes evident.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MH. 5. Retains 80% lumen output after 60,000 operating hours. 6. Powder coated aluminum fixture body. 7. Pendant and Swivel Bracket mount included 8. Low profile - Light weight 9. 11,667 Lumen output from only 100 watts 1. 60,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off €“ No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
