|EPLC2-LED-150W-RT-JB2-100C Explosion Proof LED Flood Light||Ratings/Approvals|
|Listing: NRTL Listed for United States - Canada||Class I, Divisions 2, Groups C and D|
|Lamp Type: LED||Class II, Divisions 1 & 2, Groups E,F,G|
|Dimensions: 14"H x 16"W 5"D||Class III, Divisions 1 & 2|
|Weight: 32 lbs||Certified to UL 844 Ed. 13|
|Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC||Certified to UL 1598|
|Total Watts: 150W||Certified to C22.2 No. 137 Rev 2009|
|Total Lumens: 21,000||Certified to C22.2 No. 250.0|
|Luminous Efficiency: 140 Lm/W||T5 Temperature Rating|
|Lamp Life: 60,000+ Hours||Paint Spray Booth Approved|
|Color Temp: 5600K, 4500K, 3000K||IEC 60529 Tested|
|Color Rendering Index: >75 CRI||IP67 Rated Waterproof|
|Lamp Type: -||DLC Approved|
|Lamp Base: -||Multiple Driver Banks|
|Replacement Lamp: -||80% Lumen Retention after 60,000 Hours|
|Beam Angle: 60° or 125°||Factory Sealed Light Fixture|
|Lighting Configuration: Flood Pattern|
|Power Efficiency: >95%|
|Power Factor: 0.992|
|Amperage: 1.25A @ 120V, 0.63 @ 240V, 0.54 @ 277V|
|Ambient Operating Temp Range:-50° C to +65°C|
|Operating Temp Rating: T5|
|Housing Material: Copper Free Cast Aluminum|
|Lens Material: Hardened Borosilicate Glass|
|Gasket Material: Silicone|
|Mounting: Adjustable Flat Surface Mount U-Bracket|
|Wiring: 100ft Cord with Explosion Proof Cord Cap|
|Wiring Hub: 3/4" NPT|
|Cord Cap: 5-15 Straight (120V), 5-20 Twist (120V), or 6-20 Twist (250V) Explosion Proof Plug|

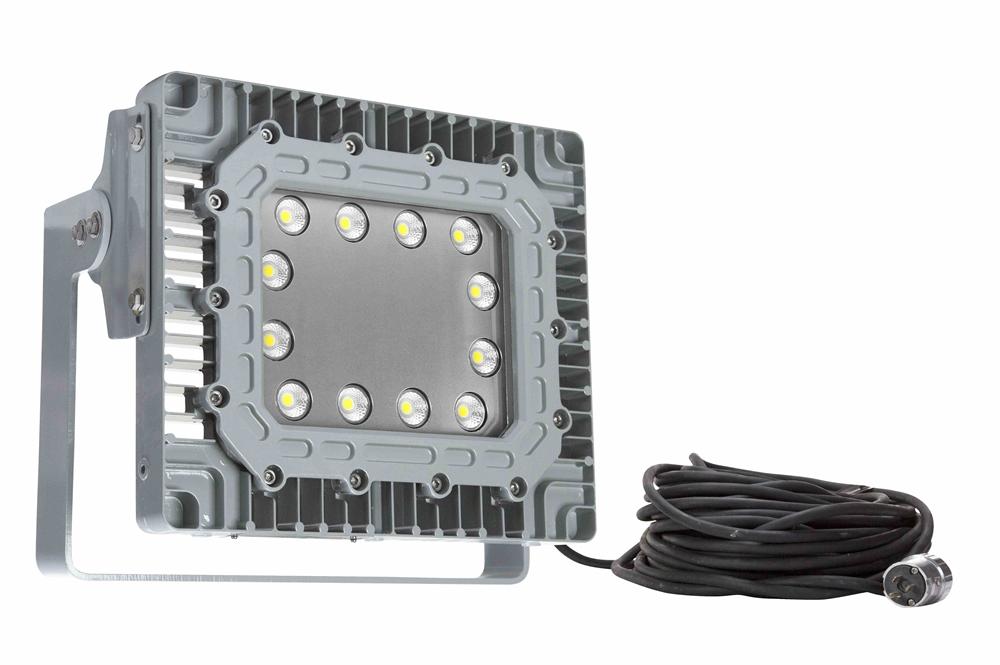

|The Larson Electronics EPLC2-LED-150W-RT-JB2-100C Explosion Proof LED Flood Light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures. This unit is equipped with 100 feet of cord and an explosion proof cord cap attached to terminal strips inside a rear access wiring hub. This Class 1 Division 2, Class 2 Division 1 & 2 explosion proof LED flood light fixture provides 21,000 of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.|
The explosion proof LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twelve individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
This light is universal voltage capable and can be operated with 100-277 VAC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
This LED light produces 21,000 lumens with a color temperature of 5600K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. We also offer a 3000K warm white and 4500K natural white color temperature options (longer lead times may apply for non-standard temperatures). The EPLC2-LED-150W-RT-JB2-100C offers an adjustable mounting system that this fixture to be mounted to any flat surface including walls and ceilings.
