Explosion Proof 25 Watt Low Profile LED Light Fixture - 1600 Lumens - Class 2 Division 1


Sale price$2,713.99


Specifications / Additional Information
EPLC2-LP-25W-LED Low Profile Light Ratings
Lamp Type: LED Class 1 Division 2 Groups A,B,C,D
Dimensions: 5 3/4"H, 8 3/4"Dia Class 2 Division 1&2 Groups F,G
Total Watts: 25W UL 844
Lumens: 1,600 UL-1598 Wet Locations
Voltage: Multi- 100-277 VAC, 50/60Hz UL-1598A Marine Type
Lighting Configuration: Flood Pattern IP66
Mounting: 1/2€ NPT Ceiling Mount NEMA 4X
Weight: 6.8lbs CSA C22.2 No. 137
U.L. Listing: Explosion Proof Ex II 3 G Ex nA IIC T4 Gc
Temp Rating: T4 -30C to +55C Ex II 3 D tc IIIB T69°C Dc IP66
Color Temp: 5600K, >65-CRI.
Lamp Life: 50,000+ Hours
' Product Overview '

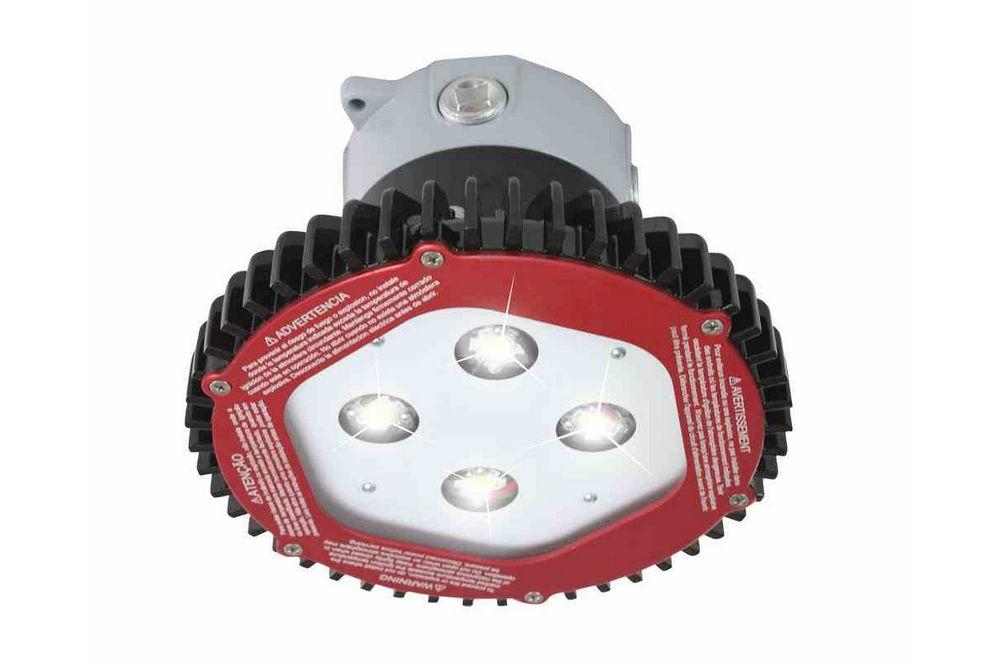

The Larson Electronics EPLC2-LP-25W-LED Low Profile LED light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures. This Class 2 Division 1 & 2 explosion proof light fixture provides 1,600 lumens of high quality light while drawing only 25 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. A special heat dissipating design in conjunction with advanced LED driver technology helps this fixture achieve an excellent 50,000 hour rated lifespan with 70% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. This light is multi-voltage capable and can be operated with 100-277 VAC, 50/60Hz without any need for a ballast or transformer. The aluminum body and LED lamp assembly gives this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat, which increases the efficiency and lifespan of the LED emitters. This high output LED lamp produces 1,600 lumens with a color temperature of 5600K and a color rendering index of 65, which means this lamp renders colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The EPLC2-LP-25W-LED is available in several mounting configurations including ceiling mounting, pendant mounting, wall mounting and cable mounting. Mounting Option Notes: Pendant mounting option requires conduit be supplied by the installer. Wall mounting option comes with Fixture Hanger.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MV. 5. Retains 70% lumen output after 50,000 operating hours. 6. Powder coated aluminum fixture body. 7. Multiple Mounting Options Including Pendant, Wall, Ceiling, Cable Mounting and Swivel Bracket. 8. Low profile - Light weight 9. 1,600 Lumen output from only 25 watts 1. 100,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off €“ No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
