150W C2D1 Explosion Proof LED Light - Magnetic Mount - 200' 16/3 TPE SEOOW w/ C1D1 Cable Gland

150W C2D1 Explosion Proof LED Light - Magnetic Mount - 200' 16/3 TPE SEOOW w/ C1D1 Cable Gland

$5,222.00 CAD
$5,222.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications / Additional Information
EPLC2-MB-150LED-200-MOD1 Magnetic Mount Explosion Proof  Light Ratings / Approvals
Listing: United States Class 1 Division Groups C and D
Dimensions: 16" x 14" Light head  Class II, Division 1 - 2, Groups E,F,G
Weight: 30 Lbs. ETL Certified U.S. Standards
Voltage: Multi-Voltage 120-277V AC 50/60Hz  ECP1523 Class 1 explosion proof plug
Total Watts: 150 watts
Total Lumens: 21,000
Lamp Life Expectancy: 50,000+ Hours
Beam Lux: 8500@ 1 Meter 1250@ 3 Meters
Color Temp: 5600K, 5000K, 4500K, 4000K, 3500K, 3000K, 2700K, or 6500K
Operating Temp Range: T5 Rated   -40°C to +65°C
Mounting: Aluminum Base Stand
Cord Cap: 15A 5-15P, 20A 5-20P, 20A 6-20P

Cable Specifications Cable Ratings/Approvals
Type: 200` 16/3 Southwire Seoprene® Type TPE SEOOW w/ C1D1 Cable Gland UL 62
Rating: 300V CSA Standard 22.2 No. 49
Configuration: 16 AWG, 3 Conductor P-241-3-MSHA Flame Resistance for Mining
Jacket: Black, Rated -50°C to 105°C Federal Specification J-C-580B
  Federal Specification J-C-580B
  OSHA Acceptable
  RoHS
  Premium Oil Resistance, Water Resistance and Flexibility
  Outdoor Use Approved
  Extra Hard-Usage Service Cord






' Product Overview '
Made in the USA The EPLC2-MB-150LED-200-MOD1 Magnetic Mount Explosion Proof LED Light from Larson Electronics is rated Class 1 Division 2 Groups C & D and Class 2 Division 1-2 and uses a low profile LED light head to produce 21,000 lumens of light while drawing only 150 watts. The EPLC2-MB-150LED-200-MOD1 magnetic mount explosion proof LED light provides 9,500 square feet of work area coverage with 21,000 lumens of light output. This portable LED light is mounted to a portable aluminum frame base with legs and has a low profile LED light head measuring 16 inches by 14 inches. This unit includes a magnetic mounting attachment that allows mounting the fixture to metallic surfaces for added versatility and easy setup. The LED light head on this unit produces a brilliant flood pattern of light that is ideal for illuminating enclosed areas and hazardous locations where flammable vapors, gases and dusts may be present.
Click Photo to Enlarge

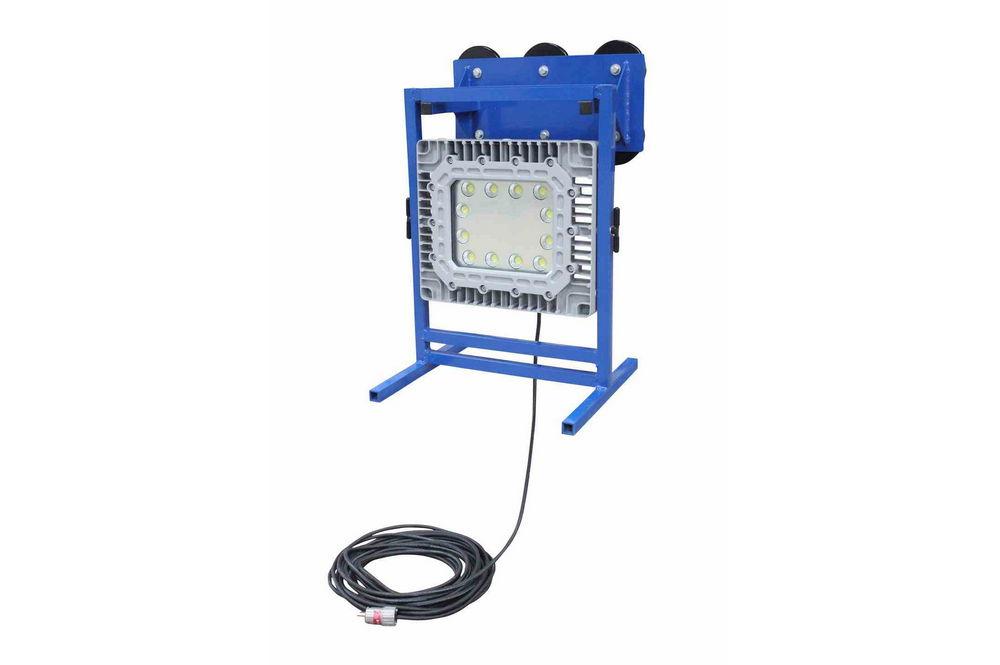

This explosion proof LED light fixture is comprised of a 16x14 inch LED light head mounted atop a legged base stand fabricated from non sparking aluminum, with a separate shelf type magnetic mounting bracket that allows mounting to ferrous metallic surfaces. The lamp can be easily adjusted up or down 90 degrees and locked into position by simply loosening the two T-handle adjustment screws located on either side of the light head and retightening them once the desired angle is found.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
This light is universal voltage capable and can be operated with 100-277 VAC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts and in-line step-down transformers for high voltage to low voltage operations. The light tower is equpped with 200` of 300 volt rated 16/3 Southwire Seoprene® Type TPE SEOOW with a C1D1 Cable Gland. Cord cap options include 5-15 15 amp explosion proof plug for use with 125V rated explosion proof outlets, 5-20 for use with 125V rated explosion proof outlets, and 6-20 for use with 250V rated explosion proof outlets. Wiring: This unit is factory equipped with 200` of Southwire Seoprene® Type TPE SEOOW cord in a 16 AWG, 3 conductor configuration with a black jacket, which is secured to the explosion proof LED light assembly via a Class I and II, Divisions 1 and 2 cable gland. The magnetic mounting bracket for this unit includes six 200 lbs. grip magnetic bases which provide a total of 1,200 lbs. of grip and allows operators to mount the unit to walls and flat metallic surfaces. Users simply attach the magnetic mounting bracket to the desired surface, then hang the lamp assembly from the bracket. This bracket is constructed of non-sparking aluminum for light weight and durability, and the simple hanging design allows operators to easily remove the lamp assembly to operate the unit as a pedestal lamp if desired. This unit is also multi-voltage capable and can configured to operate on 120-277 volts 50/60 Hz. Further adding to the versatility and convenience of this explosion proof LED light are 25 peel off mylar overspray lamp protectors that ship with the unit. The protectors provide lamp protection from dirt or debris and can be removed, cleaned and replaced, lessening the need for tedious lamp cleaning or replacements. This lamp is T5 temperature rated and the LED light head retains 80% of its lumen output after 50,000+ hours of use, far longer than incandescent or fluorescent lamps.
Made in USA Quality Superior LED Benefits
1. Approved Class 1 Div2 Class2 Division I-2 2. Led lamp head requires no lamping.  3. Durable magnetic base mount constructed of copper free aluminum. 4. No ballast box.  No ballast to replace.  5. Extreme long life LEDs reduce maintenance and replacement costs. 6. Adjustable LED light head.  7. 25 peel off mylar overspray lamp protectors ship with the unit. 8. 21,000 Lumens produced from only 150 watts. 9. Mercury free shock proof  LED lamp light head. 1. 50,000+ hour lifespan. 2. Can SAVE 50% or more on energy. 3. 100% recyclable. 4. No toxins-lead, mercury. 5. No UV light, infrared radiation or CO2 emissions. 6. Bright, even light maintains consistent color over time. 7. Instant on/off €“ No flickering, delays or buzzing. 8. Very good color rendering. 9. Vibration/impact resistant. 10. Significantly cooler operation. 11. Less frequent outages, higher output improves workplace safety.
