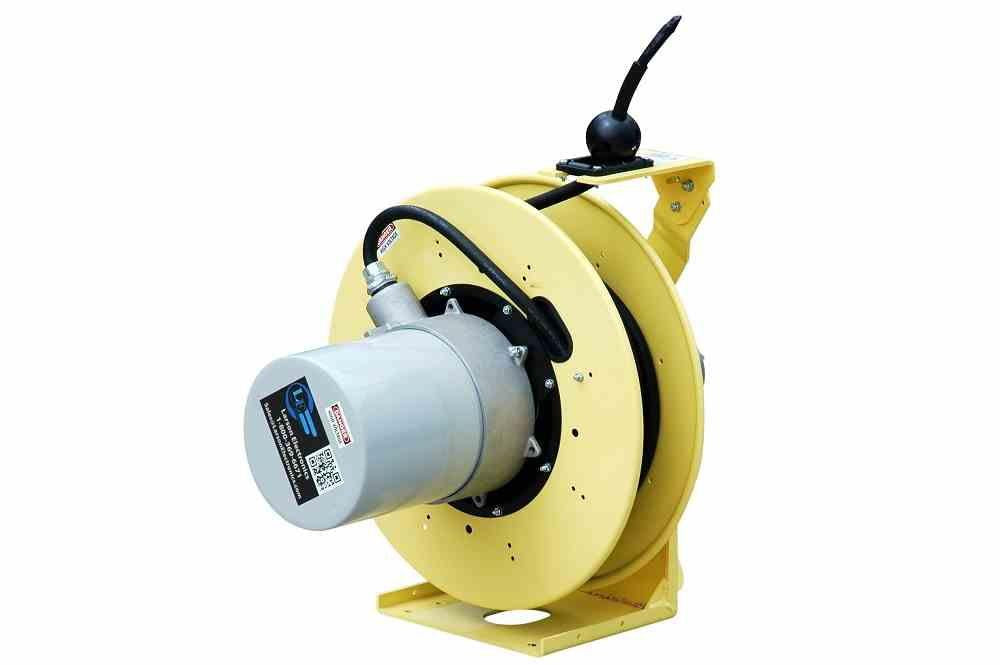

Explosion Proof Cord Reel - Class I, Div I & Class II, Div II - 100' 6/4 SOOW Cord

LARSON ELECTRONICSSKU: PL3-EPLRL-100-6.4-HR
filler

Price:
Sale price$27,831.99

Description

Specifications / Additional Information
EPLRL-100-6.4-HR Explosion Proof Reel Safety Rating
Standard Features: Class I Division 1 Groups C & D
6/4 SOOW Cable Class II Division 2 Groups E, F & G
Spring activated ratchet Zone 0, 1 & 2
2-roller adjustable cable guide and ball Conforms to NEMA 7 & NEMA 9 standards
Built to UL 508 table 36.1/NEC Standards
Indoor or Outdoor Use
Rugged fabricated steel and cast aluminum slip ring enclosure
Gray epoxy finish on all steel parts
6` feeder cord on fixed end
E-mail:

' Product Overview '
Made in the USA The EPLRL-100-6.4-HR from Larson Electronics is an Explosion Proof Reel providing Class I Division 1 and Class II Division 2 UL rating. This reel is ideal for petroleum facilities, waste water treatment plants, grain storage and handling silos, paint booths, underground mines, chemical plants, and much more. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The unit includes 100 feet of 6/4 SOOW Cord rated at 600V and is ready to install a portable explosion proof fixture to the end. These reels are built with modular components, coupled with a spark proof ratchet and hazardous location slip ring housing. This cord reel is equipped with a standard two piece adjustable cable guide, a quick change spring canister replacement with external spring torque adjustment, and a 6 foot feeder cord. Larson Electronics offers a wide variety of lighting solutions to accommodate this reel. For more information on these lights, please contact us at 1-800-367-6671.
Click Image to Enlarge Click Image to Enlarge
