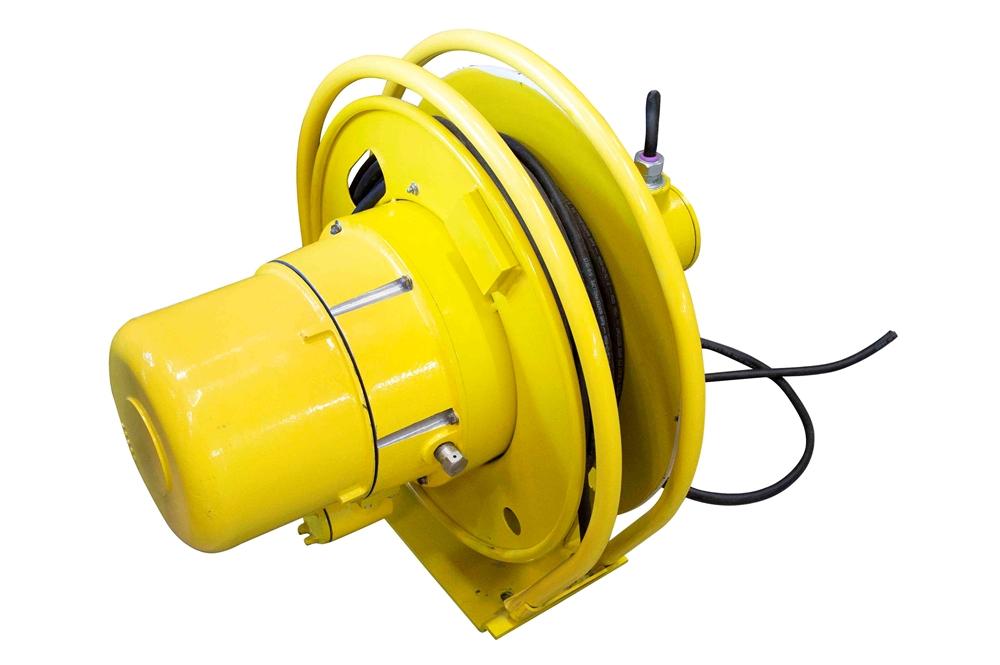

Explosion Proof Cord Reel - Class I, II, III - 50' 10/4 SOOW Cable - Swivel Base

LARSON ELECTRONICSSKU: PL3-EPLRL-50-10.4-HR-SWB
filler

Price:
Sale price$24,502.99

Description

Specifications / Additional Information

EPLRL-50-10.4-HR-SWB Explosion Proof Cord Reel Ratings/Features
Listing NRTL Listed for United States and Canada Class I, Division 1 Groups C, D
Dimensions: - Class I, Zone 1: AEx d IIB, EX d IIB
Weight: - Class II, Division 1 Groups E, F, G
Voltage: 600V Class III
Amps: - Conforms to NEMA 9 and NEMA 4 (IP56) Standards
Action: Spring Activated Ratchet
Cable Guide: 4-roller Adjustable Cable Guide and Ball Special Orders - Requirements
Ambient Operating Temp Range: -
Materials: Rugged Fabricated Steel and Cast Aluminum Slip Ring Enclosure
Finish: Gray Epoxy Finish (All Steel Parts)
Base Type: Swivel Base w/ Ball Bearings
Cable: 50' 10/4 SOOW Cable, 6' Feeder Cord on Fixed End
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }
Made in the USA The Larson Electronics EPLRL-50-10.4-HR-SWB is an Explosion Proof Reel for use in Class I, II and III rated combustible locations. Equipped with 50' of 10/4 SOOW cable, the unit features a swivel base with ball bearings which facilitates rotation and pivoting. This reel is ideal for petroleum facilities, waste water treatment plants, grain storage and handling silos, paint booths, underground mines, chemical plants, and much more. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The EPLRL-50-10.4-HR-SWB includes 50 feet of 10/4 SOOW cable with a 14" flange diameter and is ready to install a portable explosion proof fixture to the end. Constructed of rugged fabricated steel and cast aluminum, the explosion proof unit comes with a swivel base. The swivel base has ball bearings, which allow the cord reel to rotate and pivot freely. These reels are built with modular components, coupled with a spark proof ratchet and protected by a hazardous location slip ring housing.
