|EPLRL-50-12.4-HR Explosion Proof Reel||Safety Rating|
|Standard Features:||Class IÂ Division 1, Groups C & D|
|50` 12/4 SOOW Cord||Class II Division 2, Groups E,F, & G|
|Spring activated ratchet||Zone 0, 1 & 2|
|2-roller adjustable cable guide and ball||Conforms to NEMA 7 & NEMA 9 standards|
|Built to UL 508 table 36.1/NEC Standards|
|Indoor or Outdoor Use|
|Rugged fabricated steel and cast aluminum slip ring enclosure|
|Gray epoxy finish on all steel parts|
|6` feeder cord on fixed end|
Made in the USA

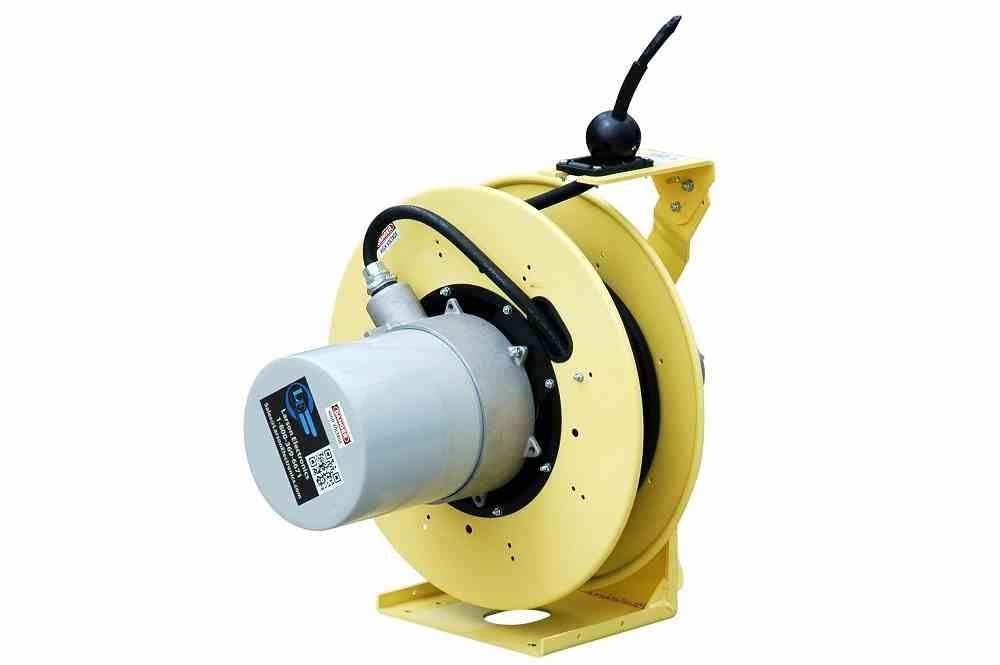

The EPLRL-50-12.4-HR is an Explosion Proof Reel providing Class I, Division 1 UL rating, as well as a Class II, Division 2. This reel is ideal for petroleum facilities, waste water treatment plants, grain storage and handling silos, paint booths, underground mines, chemical plants, and much more.
***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE***
The unit includes 50 feet of 12/4 SOOW Cord rated at 600VÂ and is ready to install a portable explosion proof fixture to the end. These reels are built with modular components, coupled with a spark proof ratchet and hazardous location slip ring housing. This cord reel is equipped with a standard two piece adjustable cable guide, a quick change spring canister replacement with external spring torque adjustment, and a 6 foot feeder cord. Larson Electronics offers a wide variety of lighting solutions to accommodate this reel. For more information on these lights, please contact us at 1-800-367-6671.
