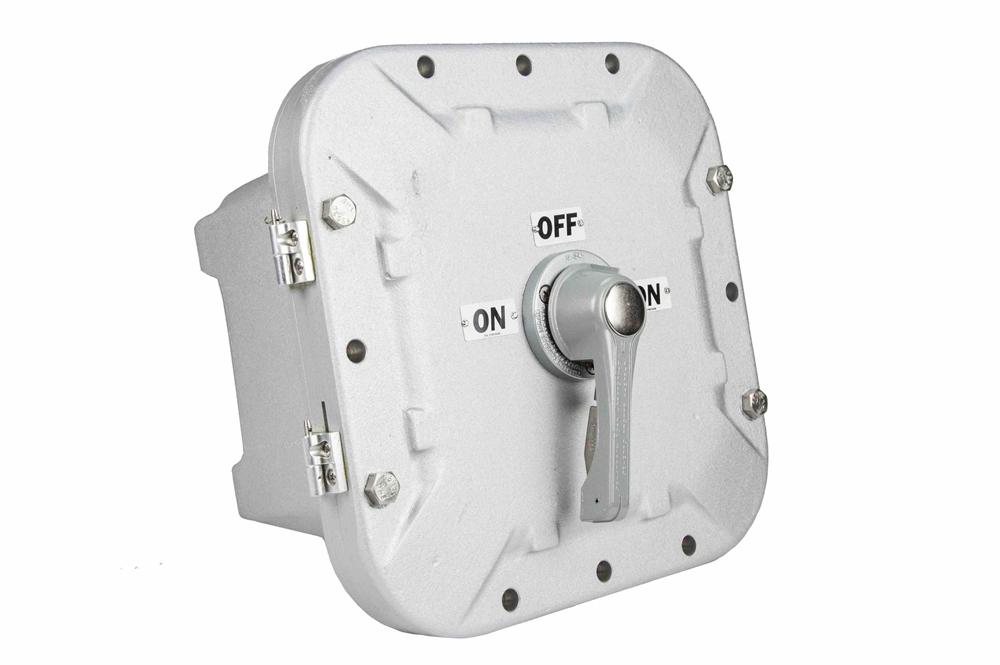

Explosion Proof Non Fused Disconnect Switch - Class I, II, III - 100 Amps, 3-Pole - (2) 1.25" Hubs

LARSON ELECTRONICSSKU: PL3-EPNFDS-100A-3P-2X1.25NS
filler

Price:
Sale price$10,532.00

Description

Specifications / Additional Information
EPNFDS-100A-3P-2X1.25NS Explosion Proof Disconnect Switch / Breaker Features/Ratings
Listing: NRTL Listed for United States and Canada Class I Division 1 & 2 Groups B, C & D
Dimensions: 14.3125" x 12.3125" x 8.625" Class I Zones 1 & 2 Groups llB+ H2 & llA
Weight: 48 lbs Class II Division 1 & 2 Groups E, F & G
Configuration: 3-Pole Class III, Divisions 1 & 2
Voltage Rating: 600V AC Max NRTL Listed to UL 1203
Amps: 100A NRTL Listed to CSA C22.2 No. 30, 25
Fusible: No NEMA 3, 4, 4X, 7 (B, C, D), 9 (E, F, G)
Materials: Copper-free Aluminum
Hardware Materials: Stainless Steel (Hinges, Cover Bolts)
Mounting: Surface Mount
Hub Qty: 2
Hub Sizes/Locations: (1) 1.25" NPT (North Side), (1) 1.25" NPT (South Side)
Conduit: Operator Provided
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
The Larson Electronics EPNFDS-100A-3P-2X1.25NS Explosion Proof 100 amp Non-fused Disconnect Switch provides operators with a Class I and II, Divisions 1 and 2 copper-free aluminum enclosure for overcurrent and short circuit protection of service entrances, feeder or branch circuits, lighting, heating, appliances and motor circuits. This 600V rated explosion proof disconnect switch has a 3-pole configuration. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPNFDS-100A-3P-2X1.25NS explosion proof disconnect switch is made of copper-free aluminum and features a rectangular bolted cover design for uniform and attractive installations. The external on/off lever can be locked into the "off" position with room for up to three padlocks for superior security. The internal circuit breaker handle mechanism is a sliding plate type mounted to the cover. The circuit breaker is trip free of the external handle mechanism. This unit is rated for NEMA 4X environments, making it ideal for indoor and extreme outdoor applications. Hubs: This power device features one, 1.25" hub at the north side and one, 1.25" hub at the south side of the explosion proof unit. Applications: Petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored.
