100A Explosion Proof Manual Transfer Switch - Class I and II, Div 1 & 2 - 3P - (3) 2" Hubs
100A Explosion Proof Manual Transfer Switch - Class I and II, Div 1 & 2 - 3P - (3) 2" Hubs
| EPNFDS-MTS-100A-3P-M1 Explosion Proof Manual Transfer Switch | Features/Ratings |
| Listing: 1NRTL Listed for United States and Canada | Class I Division 1 & 2 Groups B, C & D |
| Dimensions: 14.3125" x 12.3125" x 8.625" | Class I Zones 1 & 2 Groups llB+ H2 & llA |
| Weight: 48 lb | Class II Division 1 & 2 Groups E, F & G |
| Configuration: 3-Pole | Divisions 1 & 2 |
| Voltage Rating: 600V AC Max | NRTL Listed to UL 1203 |
| Amps: 100A | NRTL Listed to CSA C22.2 No. 30, 25 |
| Fusible: No | NEMA 3, 4, 4X, 7 (B, C, D), 9 (E, F, G) |
| Materials: Copper-free Aluminum | |
| Hardware Materials: Stainless Steel (Hinges, Cover Bolts) | Special Orders - Requirements |
| Mounting: Surface Mount | |
| Hub Sizes: (3) 2" NPT | |
| Hub Qty: 3 | |
| Hub Locations: South Side of Enclosure | |
| Conduit: Operator Provided | |
| *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |

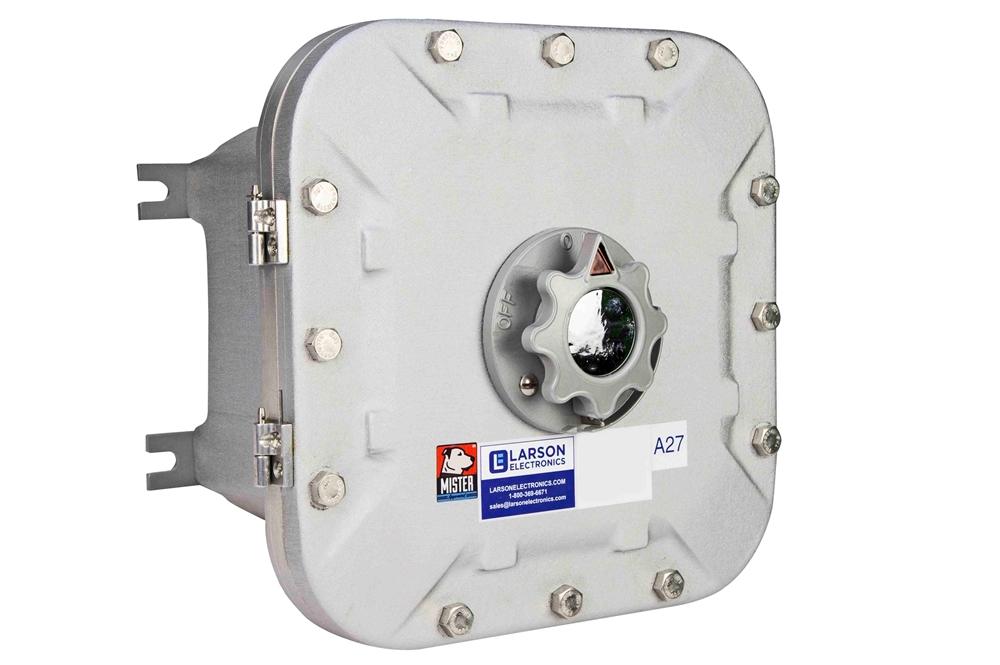

| Made in the USA The Larson Electronics EPNFDS-MTS-100A-3P-M1 Explosion Proof 100 amp Manual Transfer Switch provides operators with a Class I and II, Divisions 1 and 2 copper-free aluminum enclosure for overcurrent and short circuit protection of service entrances, feeder or branch circuits, lighting, heating, appliances and motor circuits. This 600V rated explosion proof manual transfer switch has a 3-pole configuration. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPNFDS-MTS-100A-3P-M1 explosion proof manual transfer switch is made of copper-free aluminum and features a rectangular bolted cover design for uniform and attractive installations. The external on/off lever can be locked into the "off" position with room for up to three padlocks for superior security. The internal circuit breaker handle mechanism is a sliding plate type mounted to the cover. The circuit breaker is trip free of the external handle mechanism. This unit is rated for NEMA 4X environments, making it ideal for indoor and extreme outdoor applications. Operators may access three, 2" NPT hubs at the south side of the enclosure. Applications: Petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored. |
