Larson 100A Explosion Proof Receptacle w/ Interlocked Circuit Breaker - Class I, II, III - 3W4P - 600V AC/250V DC Rated
Larson 100A Explosion Proof Receptacle w/ Interlocked Circuit Breaker - Class I, II, III - 3W4P - 600V AC/250V DC Rated
Sold by: Larson Electronics

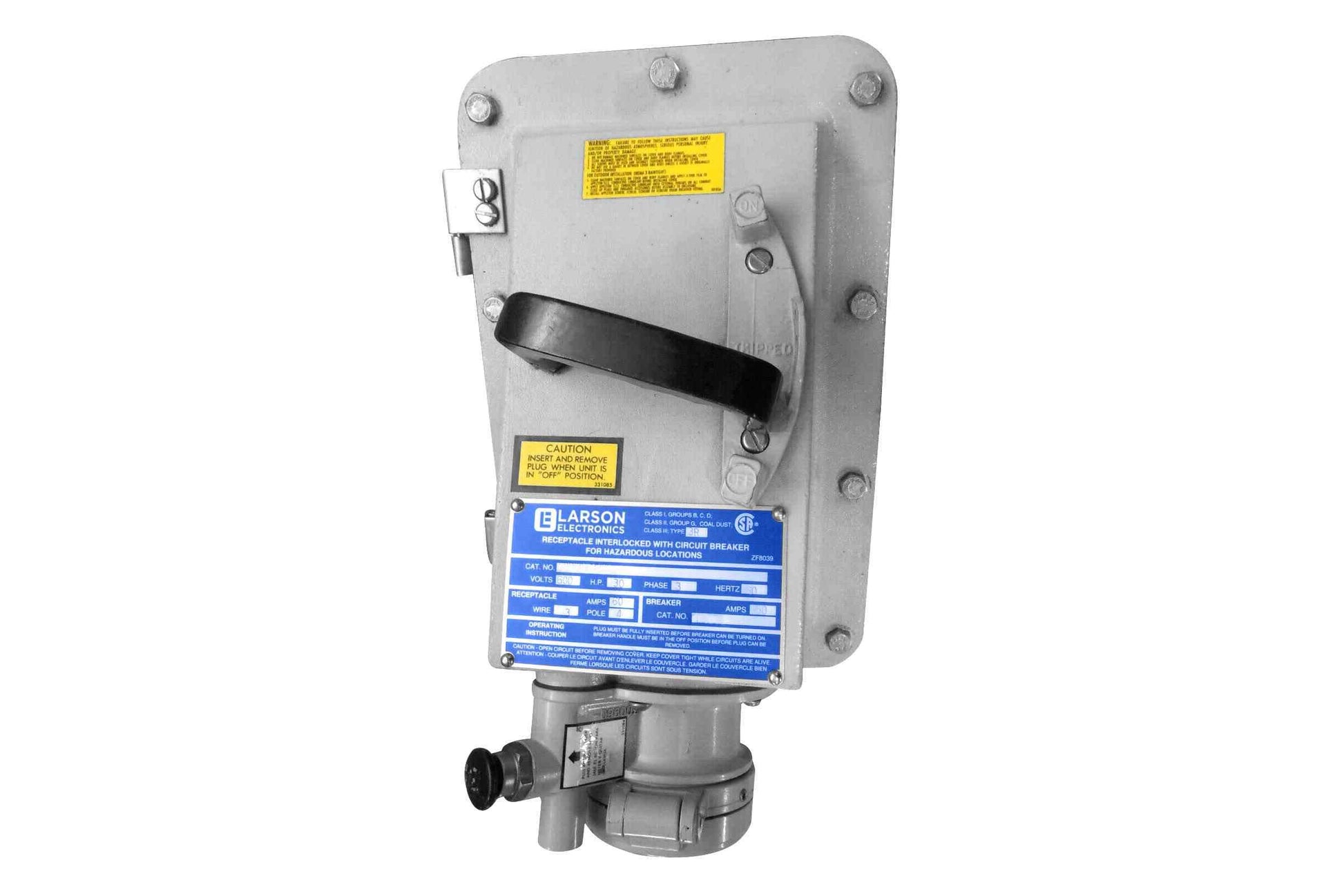

The Larson Electronics EPO-100A-3W4P-CB.LS Explosion Proof Receptacle w/ Interlocked Circuit Breaker facilitates power connections in Class I, II and III rated facilities. This 100-amp unit offers short circuit and thermal time delay overload protection. Equipped with a 600V AC/250V DC rating, the NEMA rated explosion proof receptacle is constructed of copper-free aluminum.
The EPO-100A-3W4P-CB.LS is an explosion proof receptacle for electrical connections in combustible work sites. This power accessory is rated at 600V AC/250V DC and 100 amps. Equipped with a thermal magnetic 480V AC interlocked circuit breaker, the explosion proof device contains a 3-wire 4-pole configuration. This unit offers short circuit and thermal time delay overload protection. When the circuit breaker is in an "ON" state, the plug is mechanically locked in the receptacle. The trip-free breaker operating handle can be padlocked (in both on and off positions) to prevent tampering.
The explosion proof receptacle is constructed of copper-free aluminum with a gray epoxy coated finish. Bolts and pins are made out of stainless steel. This NEMA-rated explosion proof device is suitable for use in Class I, II and III work sites.
Hubs:
The EPO-100A-3W4P-CB.LS contains three, 1 1/2" taper tapped conduit hubs at the top (1) and bottom (2). Two, 3/4" threaded openings at the top and bottom of the unit are also available for optional drain and breathers.
Mounting:
The EPO-100A-3W4P-CB.LS can be mounted to walls or flat surfaces using four mounting brackets with keyhole slots.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Unit Type: Explosion Proof Receptacle w/ Interlocked Circuit Breaker
Dimensions: 16.83" x 9.06" x 13.95"
Weight: -
Voltage Rating: 600V AC/250V DC
Amp Rating: 100A
Configuration: 3-wire, 4-pole
Circuit Breaker: 480V AC - Thermal Magnetic Breaker
Protection: Short Circuit, Thermal Time Delay Overload
Operating Temperature Rating: -
Materials: Copper-free Aluminum, Stainless Steel (Bolts, Pins)
Finish: Gray Epoxy Coated
Mount: Wall or Surface - (4) Mounting Brackets w/ Keyhole Slots
Hubs: (3) 1.5" Taper Tapped, (2) 3/4" Threaded
