150A Explosion Proof Receptacle w/ Interlocked CB - Class I, II, III - 3W4P, 600V AC - Type FD Breaker - (2) Hubs

LARSON ELECTRONICSSKU: PL3-EPO-150A-3W4P-CB.LS
filler

Price:
Sale price$30,050.00

Description

Specifications / Additional Information
EPO-150A-3W4P-CB.LS Explosion Proof Receptacle w/ Circuit Breaker Ratings
Listing: NRTL Listed for United States and Canada Class I, Divisions 1&2, Groups C,D
Dimensions: 16.83" x 9.06" x 13.95" Class II, Divisions 1&2, Groups F,G
Weight: - Class III
Voltage Rating: 600V AC/250V DC (Maximum) NEMA 3, 3R, 7 (C,D), 9, (F,G)
Amp Rating: 150A NEMA 4/4X Retained Only if Using NEMA 4/4X Plug
Configuration: 3-wire, 4-pole
Circuit Breaker Type: Type FD - 600V AC Rated
Protection: Short Circuit, Thermal Time Delay Overload
Operating Temperature Rating: -
Materials: Copper-free Aluminum
Finish: Epoxy Powder Coating Toll Free: 1-800-369-6671
Mount: Wall or Surface - (4) Mounting Brackets w/ Keyhole Slots Intl: 1-214-616-6180
Grounding: Style 2 Grounding
Hubs: (2) 1.5" Threaded Conduit Openings @ Top and Bottom
' Product Overview '

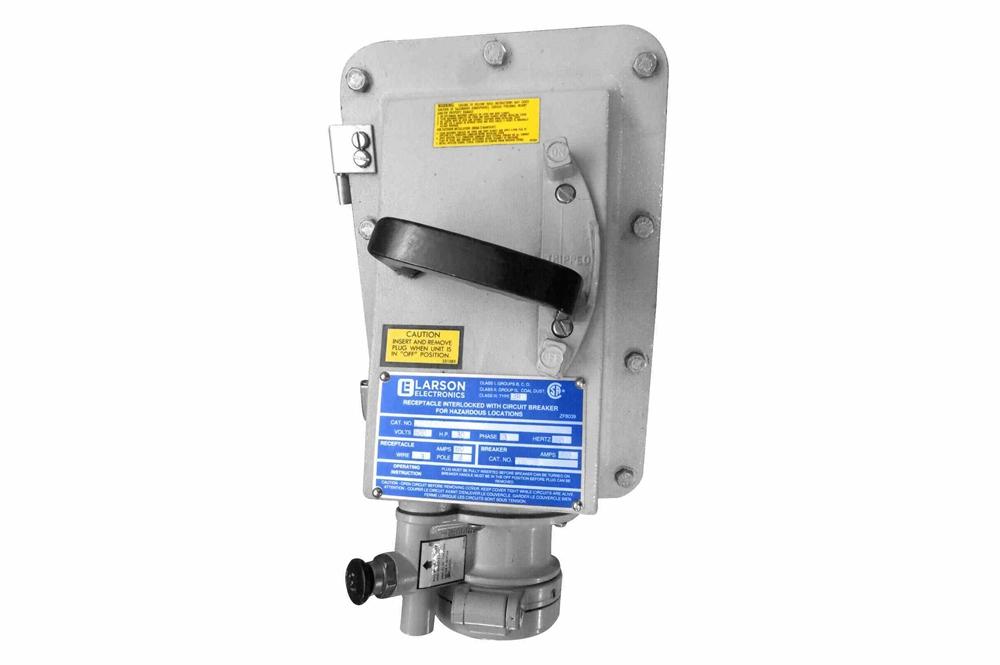

The Larson Electronics EPO-150A-3W4P-CB.LS Explosion Proof Receptacle w/ Interlocked Circuit Breaker facilitates power connections in Class I, II and III rated facilities. This 150-amp unit offers short circuit and thermal time delay overload protection. Equipped with a 600V AC/250V DC rating, the NEMA rated explosion proof receptacle is constructed of copper-free aluminum. This explosion proof device has two 1/2" threaded conduit openings at the top and bottom of the unit. The EPO-150A-3W4P-CB.LS is an explosion proof receptacle for electrical connections in combustible work sites. This power accessory is rated at 600V AC/250V DC and 150 amps. Equipped with a 600V AC rated type FD circuit breaker, the explosion proof device contains a 3-wire 4-pole configuration. This unit offers short circuit and thermal time delay overload protection. When the circuit breaker is in an "ON" state, the plug is mechanically locked in the receptacle. This receptacle is equipped with style 2 grounding (shell and pole). The explosion proof receptacle is constructed of copper-free aluminum with an epoxy powder coated finish. This NEMA-rated explosion proof device is suitable for use in Class I, II and III work sites (no Group B). NEMA 4 and 4X ratings are retained only if using a NEMA 4 and 4X plug. Hubs: The EPO-150A-3W4P-CB.LS contains two, 1 1/2" threaded conduit openings at the top and bottom. Mounting: The EPO-150A-3W4P-CB.LS can be mounted to walls or flat surfaces using four mounting brackets with keyhole slots.
