20A Explosion Proof Outlet - Class I, II, II - 2P3W - Straight Blade/Delayed Action - Panel Mount
20A Explosion Proof Outlet - Class I, II, II - 2P3W - Straight Blade/Delayed Action - Panel Mount
| EPO-PM-20A-FC Explosion Proof Outlet - Delayed Action/Straight Blade | Ratings |
| Listing: NRTL Listed for United States and Canada | Class I, Divisions 1&2, Groups C,D |
| Dimensions: 5" x 3 11/16" | Class I, Zones 1&2 Groups IIB+H2,IIA |
| Weight: - | Class II, Divisions 1&2 Groups F,G |
| Voltage: 125V or 250V | Class III |
| Amps: 20A | NEMA 3R |
| Poles: 2P | Â |
| Wires: 3W | Â |
| Protection:Â Flip Cover | |
| Materials:Â Copper Free Aluminum | |
| Finish: Electrostatically Applied Baked Powder Epoxy/polyester | Toll Free:Â 1-800-369-6671 |
| Mount:Â Panel | Intl:Â 1-214-616-6180 |
| Configuration:Â - | |
| Hub Size:Â - |

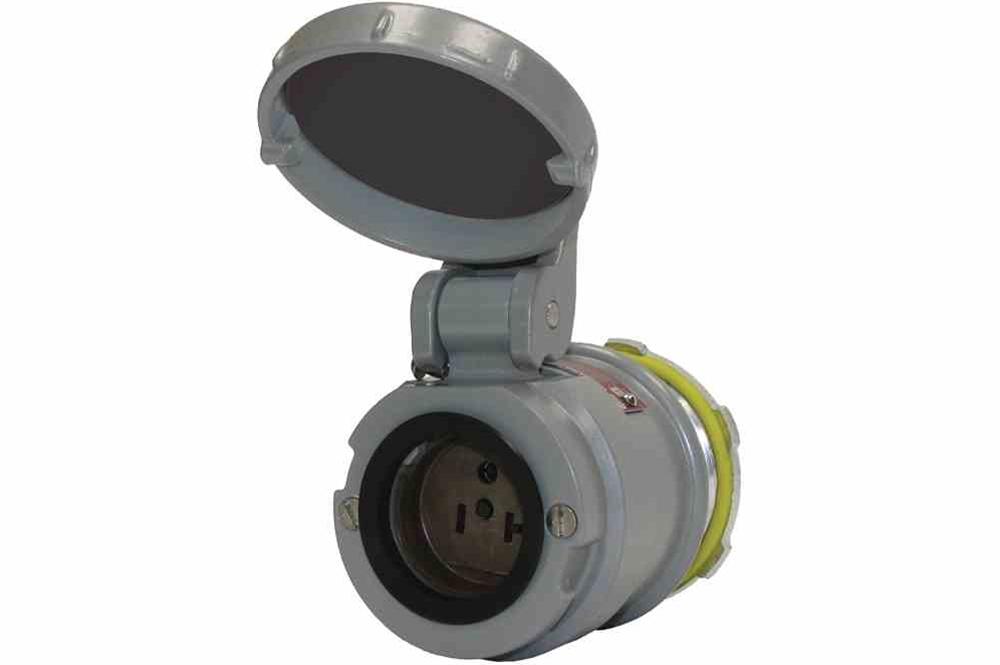

| The Larson Electronics EPO-PM-20A-FC Explosion Proof Outlet is designed for power connections in combustible facilities and hazardous locations. This panel-mount receptacle is rated at 20 amps and operates with 125V AC or 250V AC. Constructed of copper-free aluminum with an electrostatically applied baked powder epoxy/polyester finish, the NEMA 3R rated outlet is protected by a heavy-duty cover. The EPO-PM-20A-FC ensures secure electrical connections in Class I, II and III rated combustible locations. This 20-amp receptacle is offered in 125V AC or 250V AC. The receptacle contains a T-slot that accepts both 5-15/5-20 and 6-15/6-20. Equipped with a 2-pole, 3-wire configuration, the unit features a flip cover for protection. The straight blade outlet is constructed of copper-free aluminum with an electrostatically applied baked powder epoxy/polyester finish. This power accessory is NEMA 3R rated. Mounting: The explosion proof receptacle is compatible with panel mounting applications. Inter-Compatibility: These units are compatible with Crouse Hind„¢ plugs under catalog number ""ENP5151" and Hubble-Killark Acceptor® plugs under catalog number "UGP-20231, UGP-20232". Due to possible manufacturer changes we cannot guarantee interchangeability although we have made every effort to ensure cross compatibility correctness. Applications: Industrial facilities, manufacturing plants, inspections, chemical processing facilities, confined spaces, mining operations, detailed tasks, warehouses, hallways, construction sites and other hazardous locations applicable to this unit. |
