|EPP-20A-100P Explosion Proof Plug||Approvals/Ratings|
|Amp Rating: 20||Class I Divisions 1 & 2 Groups B, C and D|
|Voltage: 125V AC or 250V AC||Class II Divisions 1 & 2 Group G|
|Dimensions: 2.78"L x 1.75"W||Class III|
|Configuration: 3 Pole 2 Wire, 5-20 or 6-20||CSA Type 7BCD, 9G|
|Suitable Cable Diameter: .538" to .639"|
|Wiring: 100` 12/3 SOOW Cord|
|Compatability: - Crouse Hind„¢ ENR Receptacles|
|Cross Interchangeability: Crouse Hind„¢ENP5201 and Hubble Killark UGP-20231-UGP-20232 ACCEPTOR® plugs|

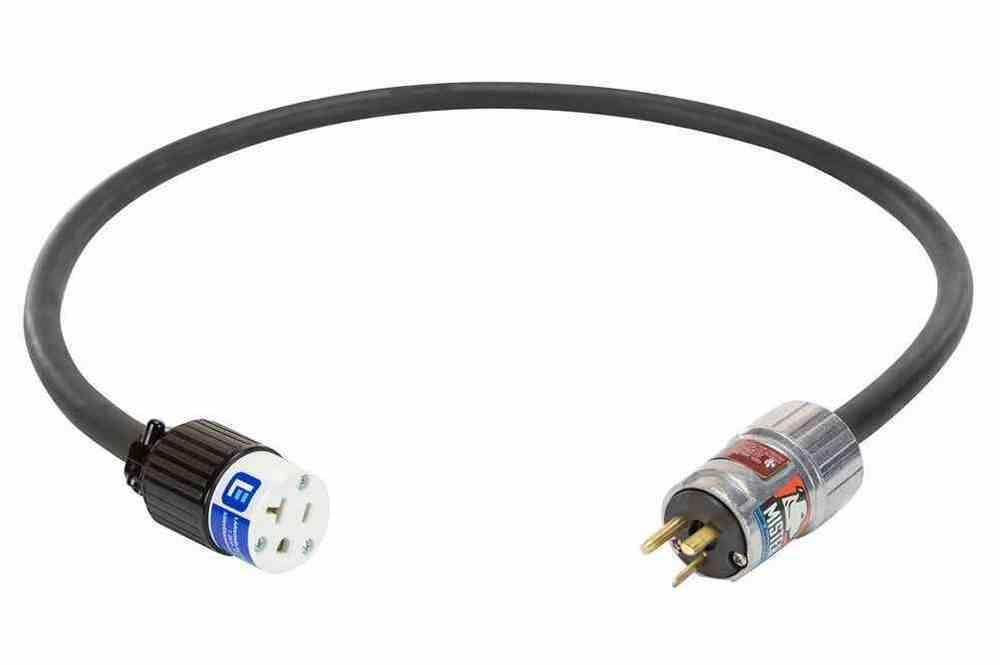

The EPP-20A-100P from Larson Electronics is an Explosion Proof Plug and Extension Cord that is rated at 20 amps and, along with our with our EPP-20A series plug, is compatible with our EPO-20A explosion proof 20 amp outlet. The plug on this 100 foot cord can only be used in T style outlets and in order to retain explosion proof safety it must be mated to an explosion proof outlet. This plug is designed to lock into compatible receptacles by twisting the plug body until an audible click is heard, which indicates the plug is securely connected. Once locked into place this plug will not accidentally pull out. This plug is ideal for applications where moisture and corrosion is a problem and well suited for use in marine and manufacturing environments.
This 100 ft extension cord comes terminated in a watertight plug that is rated for Class I Divisions 1 and 2 and Class II Divisions 1 and 2 and is suitable for use in areas where coal dust and petrochemical vapors may be present. This explosion proof plug features non sparking aluminum construction, longer housing for easy handling, specially designed brass pins for secure full length pin contact and 20 amp current rating.
Hot Work Permit: This line cord is approved for hot work permit applications and allows operators to use their non-explosion proof equipment within an explosion proof environment. The alternative to this line cord is to convert non-explosion proof equipment to explosion proof plugs which can quickly become prohibitively expensive. Having the ability to use non-explosion proof equipment within hazardous areas when a job requires it makes this line cord able to greatly increase the versatility of non-explosion proof equipment. These industrial line cords are popularly used in hazardous locations when hot work permits have been acquired. We also offer class rated extension cords for use within explosion proof and hazardous location environments without hot work permits.
