Explosion Proof Plug w/ Tri-Tap Receptacle - Pin Sleeve Cord Cap - 2' 12/3 SOOW - Hot Work Permit

LARSON ELECTRONICSSKU: PL3-EPP-250-2P-3X-2FT-15A
filler

Price:
Sale price$853.99

Description

Specifications / Additional Information
EPP-250-2P-3X-2FT-15A- 2' Explosion Proof Plug w/ Tri-Tap Receptacle Approvals/Ratings
Male Cord Cap: 2P3W Pin Sleeve - Explosion Proof C1D1 15A Male Cord Cap
Female Receptacles: Tri-Tap 5-15R Receptacle Hot Work Permit
Voltage Rating: 125-250V 60Hz
Max Amp Rating: 15A
Cable Type: 12/3 SOOW
Cable Length: 2' Toll Free: 1-800-369-6671
Weight: 1.5 lbs Intl: 1-214-616-6180
  Fax: 1-903-498-3364
  E-mail:
' Product Overview '

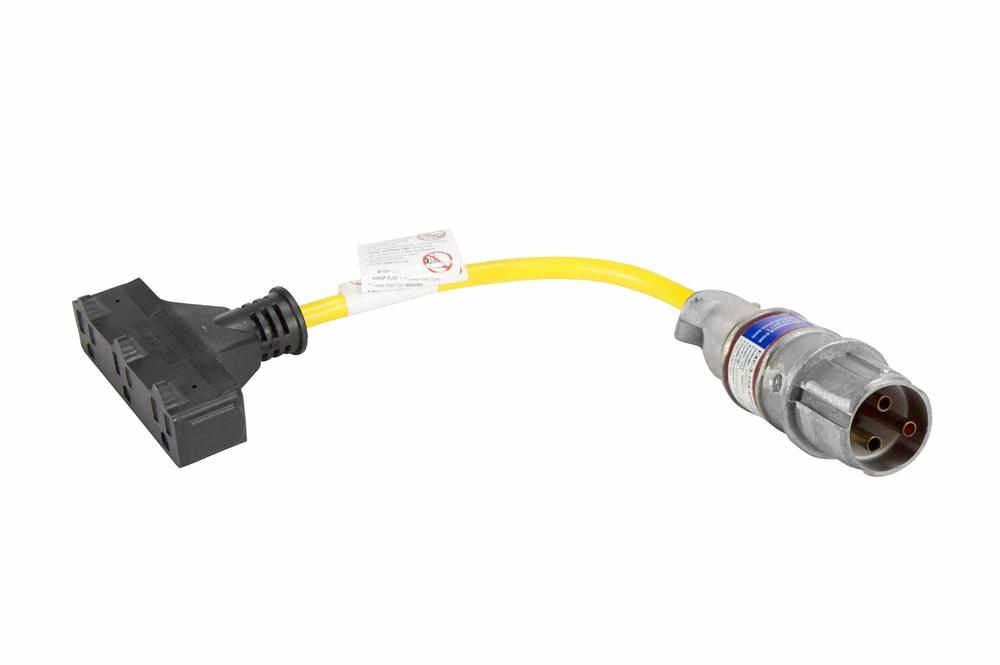

The EPP-250-2P-3X-2FT-15A from Larson Electronics is an Explosion Proof Plug with Tri-Tap Receptacle that is designed for heavy duty and outdoor applications. This rugged extension cord is constructed of six inches of 12-gauge 3-conductor wire, equipped with a 15-amp rated explosion proof 2-pole 3-wire pin sleeve male cord cap and features a tri-tap receptacle for powering a variety of general use devices. The EPP-250-2P-3X-2FT-15A linecord provides a safe and effective way for operators to power a variety of general use devices within a hazardous location with a hot permit. The EPP-250-2P-3X-2FT-15A consists of 2' of chemical and abrasion resistant flexible 12/3 SOOW cord that is terminated in a 2-pole 3-wire pin sleeve, 15 amp rated, explosion proof cord cap. A tri-tap receptable allows operators to connect up to three devices. Hot Work Permit: This line cord is approved for hot work permit applications and allows operators to use their non-explosion proof equipment within an explosion proof environment. The alternative to this line cord is to convert non-explosion proof equipment to explosion proof plugs which can quickly become prohibitively expensive. Having the ability to use non-explosion proof equipment within hazardous areas when a job requires it makes this line cord able to greatly increase the versatility of non-explosion proof equipment. These industrial line cords are popularly used in hazardous locations when hot work permits have been acquired. We also offer class rated extension cords for use within explosion proof and hazardous location environments without hot work permits. Suggested Applications: This GFCI protected linecord system is ideal for indoor or outdoor use and applications including but not limited to aircraft maintenance, alcohol processing, aerospace, chemical manufacturing, coke processing, cold storage, compressed natural gas (CNG) facilities, cranes, cryogenics, distilleries, food processing, fuel storage, gas processing plants, grain processing, laboratories, liquefied natural gas (LNG) facilities, liquid propane gas (LPG), manufacturing, marine vessels, methane production, mining, offshore, oil drilling rigs, oil refineries, paint spray booths, paper processing, petrochemical, pharmaceuticals, power plants, production refineries, sand blast cabinets, sewage and septic tanks, shipyards, solvent and cleaning areas, storage facilities, tank farms, tankers, textile, washdown areas, waste treatment plants, and woodworking. These industrial extensor cords are popularly used in hazardous locations when hot work permits have been acquired. We also offer class rated extension cords for use within explosion proof and hazardous location environments without hot work permits.
