480V Explosion Proof Fixture/Extension Cord Plug - 30 Amp Rated - 20HP

LARSON ELECTRONICSSKU: PL3-EPP-30A.480V
filler

Price:
Sale price$1,067.99

Description

Specifications / Additional Information
EPP-30A.480V-5HP-5FT-BCE Explosion Proof Plug Certifications - Compliance
Amp Rating: 30 Class 1, Div 1 & 2 Groups C,D
Horsepower Rating: 5 HP @ 480V, 10 HP @ 460V
Dimensions: 7.75"-L x 3.07"-OD
Configuration: 3-Wire 4-Pole
Seals: Neoprene Plug Wire Bushing Toll Free: 1-800-369-6671
Cable Diameter: 0.500 to 0.875 or 0.875 to 1.375 Intl: 1-214-616-6180
Plug Style: Pin and Sleeve Fax: 1-903-498-3364
Protection: Delayed Reaction Twist Lock Activation E-mail:
' Product Overview '

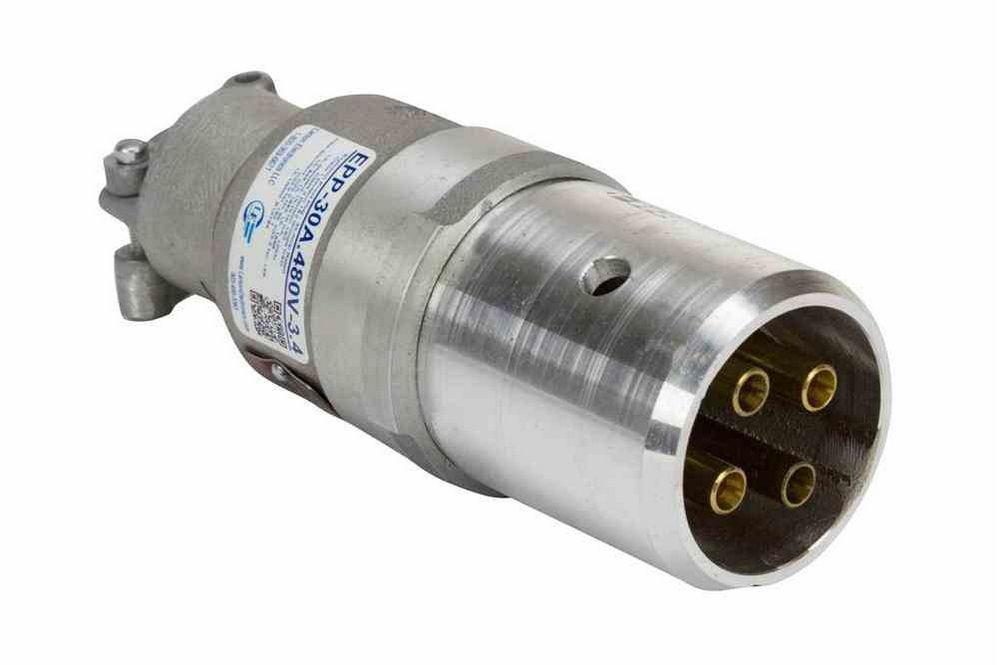

Larson Electronics EPP-30A.480V Delayed Reaction Explosion Proof Pin and Sleeve Plug rated at 30 amps. The EPP-30A.480V explosion proof plug is rated at 30 amps and is compatible with our EPO-30A.480V explosion proof 30 amp outlet. This pin and sleeve male plug must be mated to an explosion proof pin and sleeve style 480V outlet. This plug is designed to lock into compatible twist lock receptacles by twisting the plug body until an audible click is heard, which indicates the plug is securely connected. Once locked into place this plug will not accidentally pull out. The delayed reaction pin and sleeve twist lock design allows the arc generaeted heat and arc chambers to cool before being exposed to the atmosphere.
Screw Terminals for Wiring
This C1D1 plug can accept cable diameter from 0.500 to 0.875 or 0.875 to 1.375, please choose cable diameter below. This plug is watertight and ideal for applications where moisture and corrosion is a problem and well suited for use in marine and manufacturing environments. This plug is rated Class 1, Division 1 and 2 and is suitable for use in areas where petrochemical vapors may be present. This explosion proof plug features non sparking aluminum construction, a longer housing for easy handling, specially designed brass pins for secure full length pin contact, and a 30 amp max current rating at 480V. This unit is rated to 20 horsepower at 480V and 10 horsepower at 460V. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Motor-Generator  Sets, Compressors, Wet areas or Locations Where Petrochemical Vapors are Present.
