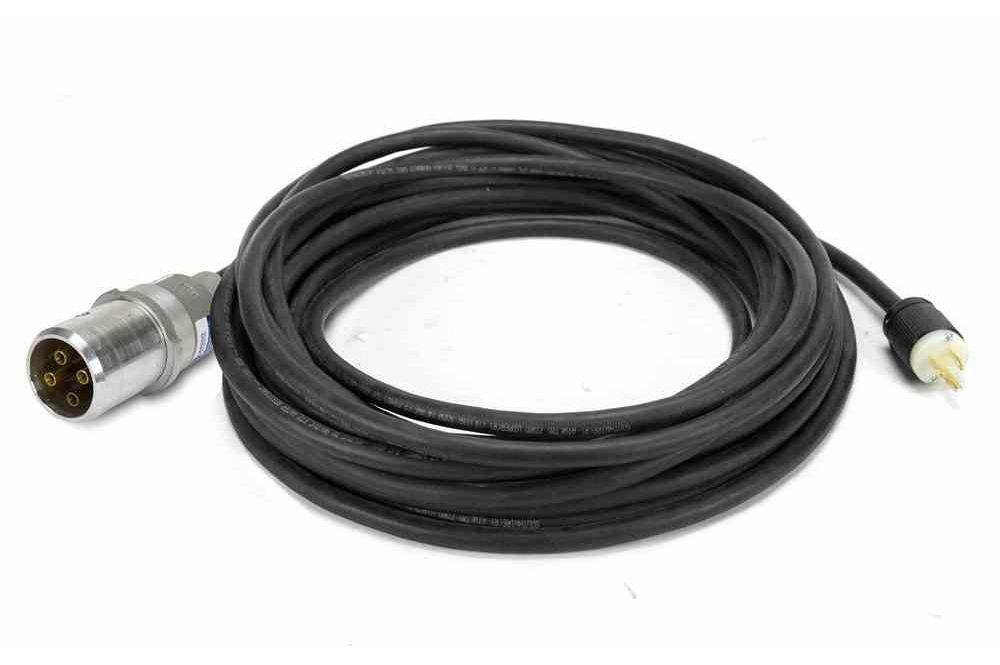

480V Explosion Proof Fixture/Extension Cord Plug - 30 Amp Rated - 20HP - 50ft SOOW w/ Blunt Cut End

LARSON ELECTRONICSSKU: PL3-EPP-30A.480V-20HP-50FT-BCE
filler

Price:
Sale price$4,212.00

Description

Specifications / Additional Information
EPP-30A.480V-20HP-50FT-BCE Explosion Proof Plug Certifications - Compliance
Amp Rating: 30 Class 1, Div 1 & 2 Groups C,D
Dimensions: 7.75"-L x 3.07"-OD
Configuration: 3-Pole 4-Wire
Seals: Neoprene Plug Wire Bushing Toll Free: 1-800-369-6671
Wiring: 50` 12/4 SOOW - Blunt Cut End Intl: 1-214-616-6180
Plug Style: Pin and Sleeve Fax: 1-903-498-3364
Protection: Delayed Reaction Twist Lock Activation E-mail:
' Product Overview '
Larson Electronics EPP-30A.480V-20HP-50FT-BCE Delayed Reaction Explosion Proof Pin and Sleeve Plug with 8ft SOOW Cable and Blunt Cut End The EPP-30A.480V-20HP-50FT-BCE explosion proof plug is rated at 30 amps and is compatible with our EPO-30A.480V explosion proof 20 amp outlet. This pin and sleeve male plug must be mated to an explosion proof pin and sleeve style 480V outlet. This plug is designed to lock into compatible twist lock receptacles by twisting the plug body until an audible click is heard, which indicates the plug is securely connected. Once locked into place this plug will not accidentally pull out. The delayed reaction pin and sleeve twist lock design allows the arc generaeted heat and arc chambers to cool before being exposed to the atmosphere. This C1D1 plug comes factory installed with 50` of 12/4 SOOW cable and a blunt cut end. This plug is watertight and ideal for applications where moisture and corrosion is a problem and well suited for use in marine and manufacturing environments. This plug is rated Class 1, Division 1 and 2 and Class 2, Division 1 and 2 and is suitable for use in areas where petrochemical vapors may be present. This explosion proof plug features non sparking aluminum construction, a longer housing for easy handling, specially designed brass pins for secure full length pin contact, and a 30 amp max current rating at 480V. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Motor-Generator  Sets, Compressors, Wet areas or Locations Where Petrochemical Vapors are Present.
