Explosion Proof Panel Board - Class I, II, III - 120/240V 1PH - 100A - (19) Branch Feeders - NEMA

LARSON ELECTRONICSSKU: PL3-EPPB-120.240-100AMB-11X15A.1P-2X20A.1P-6X20A.2P
filler

Price:
Sale price$29,314.00

Description

Specifications / Additional Information
EPPB-120.240-100AMB-11X15A.1P-2X20A.1P-6X20A.2P Explosion Proof Panel Board Ratings/Approvals
Type: Explosion Proof Panel Board Class I, Divisions 1&2 Groups B,C,D
Dimensions: 23.31" x 17.31" x 11.13" Class II, Division 1 Groups E,F,G
Weight: 160 lbs Class II, Division 2 Groups F,G
Primary Voltage: 120/240V 1PH Class III
Main Lug Only Amp Rating: 100A NEMA 7/9
Configuration: 3 Wire
Branch Feeders: (19) Total: (11) 1P/15A, (2) 1P/20A, and (6) 2P/20A
Materials: Copper-free Aluminum, 316 SS Toll Free: 1-800-369-6671
Mount: Surface/Wall
Hubs: (1) 1" NPT @ Top, (6) 1" NPT @ Bottom, (1) 1/2" NPT @ Bottom for Breather/Drain Fax: 1-903-498-3364
Power Entry: Top Feed E-mail:
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

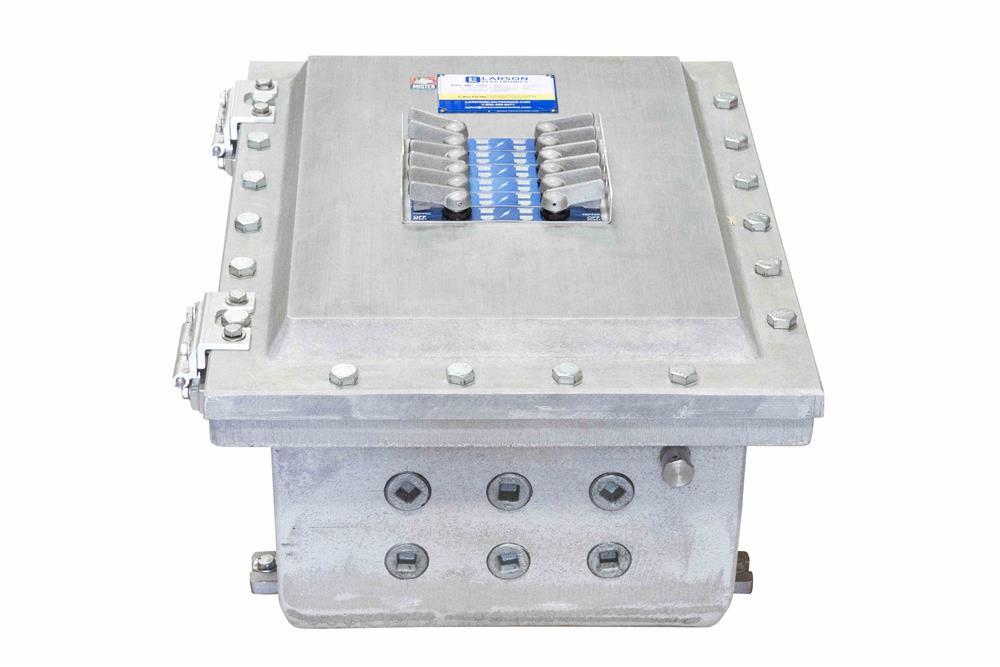

The EPPB-120.240-100AMB-11X15A.1P-2X20A.1P-6X20A.2P is an Explosion Proof Panel Board that is designed for hazardous locations and industrial facilities. This panel board is compatible with 120/240V single phase and has a 3-wire configuration. The 100-amp rated main panel has twenty-four circuits and a two pole, 100A rated main breaker. The EPPB-120.240-100AMB-11X15A.1P-2X20A.1P-6X20A.2P is equipped with 19 total branch feeders: (11) 1P/15A, (2) 1P/20A, and (6) 2P/20A. The EPPB-120.240-100AMB-11X15A.1P-2X20A.1P-6X20A.2P is suitable for circuit protection in hazardous locations. Taking on a 3-wire configuration, the main lug only unit features a 100-amp rating. This panel board contains a primary voltage of 120/240V single phase and nineteen branch feeders. The explosion proof panel board is constructed of copper-free aluminum, with stainless steel hardware. The top-feed explosion proof unit can be mounted on flat surfaces or walls. The NEMA-rated panel board contains (1) 1" NPT hub at the top and (6) 1" NPT/(1) 1/2" NPT hubs at the bottom of the explosion proof enclosure. Applications: Industrial facilities, hazardous locations, offshore refineries, marine locations, indoor/outdoor spaces, agricultural sites, ship yards, docks and more. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units If this model does not meet your needs, please contact us at 1-800-369-6671 or
