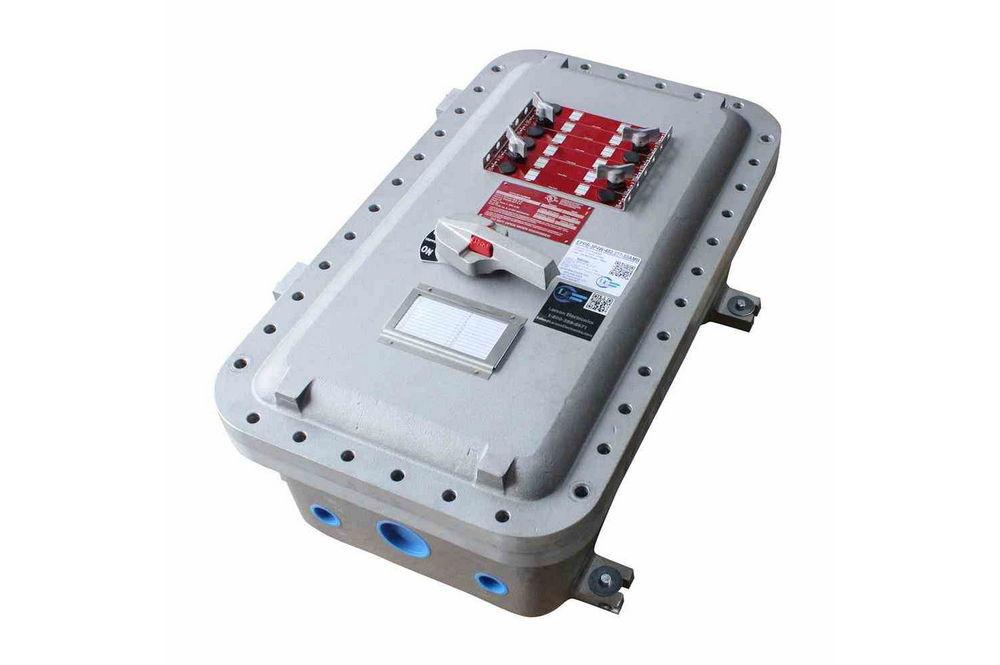

Explosion Proof Panelboard - 3P4W 208Y/120 3PH - 100A MCB - (5) 20A 208Y (5) 20A 120V Breakers

LARSON ELECTRONICSSKU: PL3-EPPB-3P4W-208Y.120-100AMB-5X120-5X208
filler

Price:
Sale price$19,108.99

Description

Specifications / Additional Information
EPPB-3P4W-208Y.120-100AMB-5X120-5X208 Explosion Proof Panelboard Ratings/Approvals
Unit Type: Explosion Proof Lighting Panelboard Class I, Div. 1&2, Groups B,C,D
Dimensions: 45 3/8" x 33" x 16 7/8" Class l, Zones 1&2, Groups llB+H2,IIA
Weight: 250 lbs Class II, Div. 1&2, Groups E,F,G
Primary Voltage: 208Y/120 3PH Class III, Div. 1&2
Panel Type: Main Circuit Breaker NEMA 3,4,4X,7(B,C,D)9(E,F,G)
Main Panel Amp Rating: 100 Amps Top Feed Panel
Circuit Panel: 25
Breakers: (5) 20A 2P [208V], (5) 20A 1P [120V]
Materials: Copper-free Aluminum Toll Free: 1-800-369-6671
Mount: Wall or Surface Intl: 1-214-616-6180
Conduit Configuration: (3) Top, (2) Bottom, (6) Left, (5) Right Fax: 1-903-498-3364
Hub Sizes: (2) 3", (14) 1" E-mail:
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
The EPPB-3P4W-208Y.120-100AMB-5X120-5X208 Explosion Proof Panelboard offers circuit management and protection in hazardous locations and indoor/outdoor work sites. The 100-amp rated main circuit breaker panel is compatible with 208Y/120 three phase and comes with five, 20-amp 208Y and five, 120V breakers. The 25-circuit panel is constructed of copper-free aluminum. The EPPB-3P4W-208Y.120-100AMB-5X120-5X208 is a rugged main circuit breaker panel, with a 3-pole, 4-wire configuration, for applications in hazardous locations and explosive work sites. This unit comes with a 100-amp rating and supports 208Y/120 three phase. The 25-circuit panel is furnished with copper buss, with padlocking main/branch breaker handles. Operators can access a total of five, 20-amp 208Y 2-pole and five 20-amp 120V 1-pole breakers. This unit is constructed of copper-free aluminum (less than 4/10 of 1%), with 316 stainless steel cover bolts. The explosion proof panelboard contains the following conduit openings: (3) top, (2) bottom, (6) left and (5) right. Hub sizes include (2) 3" and (14) 1". This top feed panel is NEMA rated and suitable for use in Class I, Divisions 1 & 2; Class I, Zones 1 & 2; Class II, Divisions 1 & 2; and Class III work sites. Mount: The EPPB-3P4W-208Y.120-100AMB-5X120-5X208 is compatible with wall or surface mounting configurations. Applications: Hazardous locations, oil and gas facilities, petroleum refineries, chemical processing, lighting systems, overcurrent protection, short circuit protection and more. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units If this model does not meet your needs, please contact us at 1-800-369-6671 or
