Explosion Proof Panelboard - 3P4W 120/240V - 100A Main Breaker - (2) 15A Breakers - IP65

LARSON ELECTRONICSSKU: PL3-EPPB-3P4W-2X15A.1P
filler

Price:
Sale price$34,133.99

Description

Specifications / Additional Information
EPPB-1P-120.240-50AMB-5X5A Explosion Proof Panelboard Ratings/Approvals
Type: Explosion Proof Lighting Panelboard Class I, Div 1 & 2 Groups B, C, D
Primary Voltage: 120/240V 1P Class I, Zone 1 & 2 IIB + H2
Main Breaker Amp Rating: 100 Amps Class II, Div 1 & 2 Groups E, F, G
Configuration: 3 Pole 4 Wire Class III
Branch Breakers: (2) 15 Amps NEMA 4X, 7, 9, 12
Materials: Copper-free Aluminum IP65
Gasket Material: Neoprene
Finish: Aluminum Lacquer Paint
Toll Free: 1-800-369-6671
Intl: 1-214-616-6180
Fax: 1-903-498-3364
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

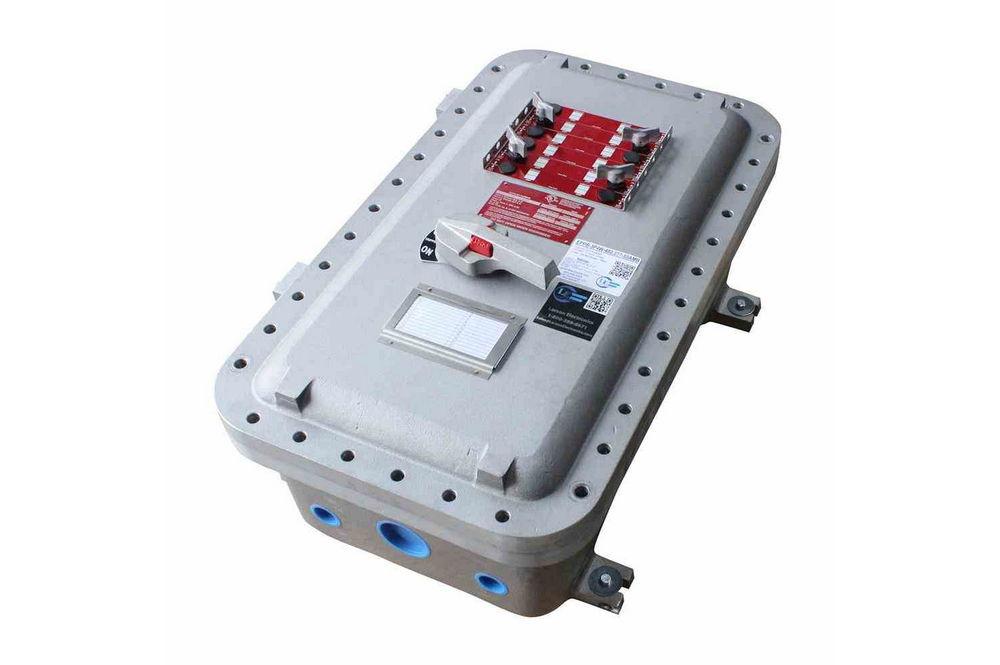

The EPPB-3P4W-2X15A.1P is an explosion proof lighting panelboard that is designed for Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 industrial facilities. This panelboard is rated at 120/240V single phase, has a 3-pole 4-wire configuration and features a 100-amp main breaker rating with two, 15-amp branch breakers. The EPPB-3P4W-2X15A.1P is suitable for circuit protection in hazardous locations. This unit features a primary voltage of 120/240V single phase and contains 24 branch circuit breaker spaces (maximum). Taking on a 3-pole 4-wire configuration, the explosion proof panel board consists of two, 15-amp branch breakers. The main breaker amp rating on this unit is 100 amps. This explosion proof panelboard is constructed of copper-free aluminum, while the cover bolts are stainless steel. A corrosion resistant, NEMA 4X breather and drain is available to reduce internal condensation. This component also protects the unit from the ingress of rain and hose water. The IP65-rated panelboard is approved with the following explosion proof ratings: Class I, Divisions 1 & 2 Groups B, C, D; Class II, Divisions 1 & 2 Groups E, F, G; and Class II. Applications: Industrial facilities, hazardous locations, offshore refineries, marine locations, indoor/outdoor spaces, agricultural sites, ship yards, docks and more. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units If this model does not meet your needs, please contact us at 1-800-369-6671 or
