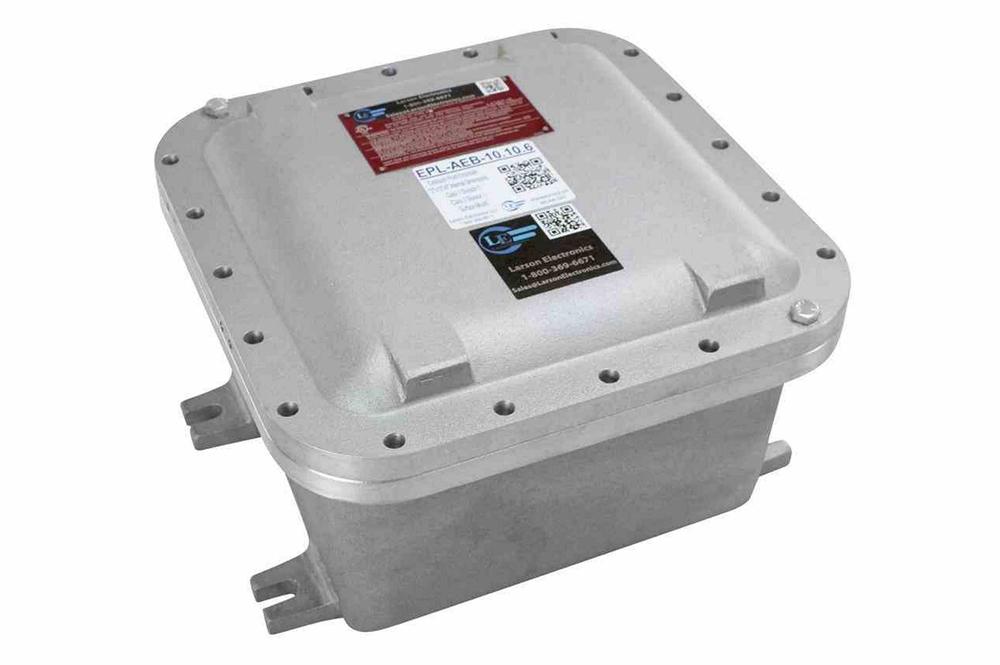

Explosion Proof Combiner Junction Box - Class I, II, III - 480V - (8) Input, (4) Output Terminals - N3R

LARSON ELECTRONICSSKU: PL3-EPPB-TWB-10.14.06-220Y.127-30KVA-SLV-R1
filler

Price:
Sale price$10,921.99

Description

Specifications / Additional Information
EPPB-TWB-10.14.06-220Y.127-30KVA-SLV-R1 Explosion Proof Combiner Junction Box Features/Ratings
Listing: NRTL Listed for United States and Canada Class I, Divisions 1 & 2, Groups B, C, D
Dimensions: 19.25"L 15.25"W x 8.90"H Class I, Zones 1 & 2, Groups IIB+H2, IIA
Weight: - Class II, Divisions 1 & 2, Groups E, F, G
Voltage: 480V AC Class III, Divisions 1 & 2
Combined Power: 30 KVA Between Two 15 KVA Transformers in Parallel NEMA Type 3, 4, 4X
Input Terminals: (8) - Two Input Terminals per Phase (3 Phases and 1 Neutral) NRTL Listed to UL 1203
Output Terminals: (4) - One Output Terminal per Phase
Configuration/Type: Feed Through Screw Terminal Blocks
Protection: End Caps Toll Free: 1-800-369-6671
Ambient Operating Temp Range: - Intl: 1-214-616-6180
Mounting: Din Rail Mount Fax: 1-903-498-3364
Materials: Copper-free Aluminum E-mail:
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
The EPPB-TWB-10.14.06-220Y.127-30KVA-SLV-R1 from Larson Electronics is an Explosion Proof Combiner Junction Box, which can be used in Class I, II and III rated work sites. Equipped with twelve terminals, the unit operates on 480V AC and allows two inputs from two 15 KVA transformers in parallel. The explosion proof device is protected by a NEMA 3R rated copper-free aluminum housing. The EPPB-TWB-10.14.06-220Y.127-30KVA-SLV-R1 is designed for power distribution connections in combustible facilities. This combiner junction box caters to two inputs from two 15 KVA transformers in parallel. The combined power source between the two transformers is 30 KVA. Compatible with 480V AC, the unit has eight input terminals (two input terminals per phase - 3 phases and one neutral) and four output terminals (one output terminal per phase). The explosion proof unit is constructed of copper-free aluminum and comes with end caps. This explosion proof junction box is NEMA 3R rated, for indoor and outdoor use and provides a degree of protection against dirt, water, and ice. Mounting: The EPPB-TWB-10.14.06-220Y.127-30KVA-SLV-R1 is compatible with din-rail mounting requirements. Suggested Applications: Paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, chemical manufacturing, waste treatment plants, gas processing plants and more.
