Explosion Proof High Power Signal Unit

LARSON ELECTRONICSSKU: PL3-EPPH-S214
filler

Price:
Sale price$1,930.99

Description

Specifications / Additional Information
EPPH-SB214 Explosion Proof Sounding Unit Ratings/Approvals
Body Material: Aluminum/RAL2003 ATEX II2GD - EEx d IIB T6
Input Voltage: 24-48VDC, 230VAC Class 1, Division 2, Groups C & D
Sounding: 100dB at 1 meter Class 2, Division 2, Groups E, F, G
Mounting: Wall Mount T6 temperature rating
Termination: Inside Screw Connection Ambient Temp: -40C - 60C
Dimensions: 8.47 X 13.78 x 7.68
Weight: 20lbs
Waterproof: IP66 Rated
Opening: Eight Screw Front Panel Toll Free: 1-800-369-6671
Intl: 1-214-616-6180
  Fax: 1-903-498-3364
E-mail:
' Product Overview '

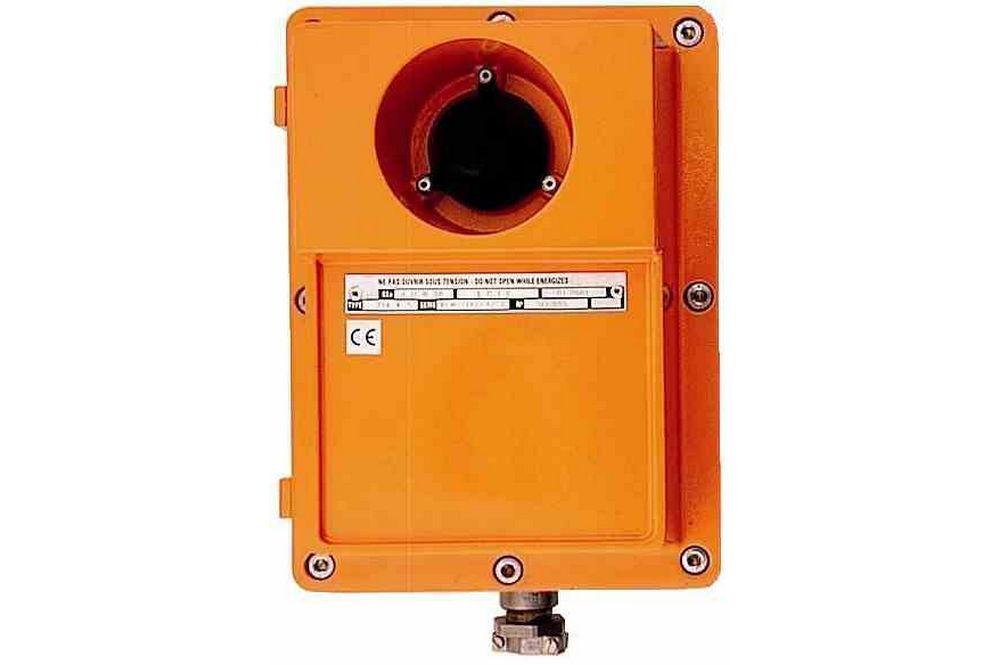

Made in The USA The EPPH-SB214 explosion proof sounding unit provides high decibel audible signals and includes a telephone interface. The EPPH-SB214 explosion proof high power signal sounding unit provides a high decibel audio signal. It is equipped with an electronic amplifier card driving a 15W compression chamber motor, producing 100-110 dB at 1 meter. Signals can be modulated to adjustable volumes, with single tones, two tones, treble, and AFNOR urgent evacuation signals. The housing is made from cast aluminum, and all screws are stainless steel. This unit is dust proof and IP 66 rated waterproof. Operating voltages range from 12V to 24VDC and 230VAC. The front of the housing can be accessed by unscrewing the eight front panel screws. Intercom Features/Characteristics
Power Supply: 24-48VDC, 230VAC Consumption: 15W - 15VA Flashing Unit: N/A Acoustic Unit: 100dB at 1 meter Telephone Interface: Electronic Relay Circuit Telephone Ring Voltage: 30-100VAC - 25-50Hz Impedance on phone line: 7K ohms Output Level: Adjustable by internal trimmer Output Tone: Low/High, Continuous/Blinking Special: Working during pauses between rings
