Explosion Proof High Power Beacon - Signal Unit

LARSON ELECTRONICSSKU: PL3-EPPH-SB214
filler

Price:
Sale price$4,091.99

Description

Specifications / Additional Information
EPPH-SB214 Explosion Proof Beacon/Sounding Unit Ratings/Approvals
Body Material: Aluminum/RAL2003 ATEX II2GD - EEx d IIB T6
Input Voltage: 24-48VDC, 230VAC Class 1, Division 2, Groups C & D
Beacon Type: Flashing Xenon with Sounding Class 2, Division 2, Groups E, F, G
Mounting: Wall Mount T6 temperature rating
Termination: Inside Screw Connection Ambient Temp: -40C - 60C
Dimensions: 8.47 X 13.78 x 7.68
Weight: 20lbs
Waterproof: IP66 Rated
Opening: Eight Screw Front Panel Toll Free: 1-800-369-6671
Intl: 1-214-616-6180
Fax: 1-903-498-3364
E-mail:
' Product Overview '

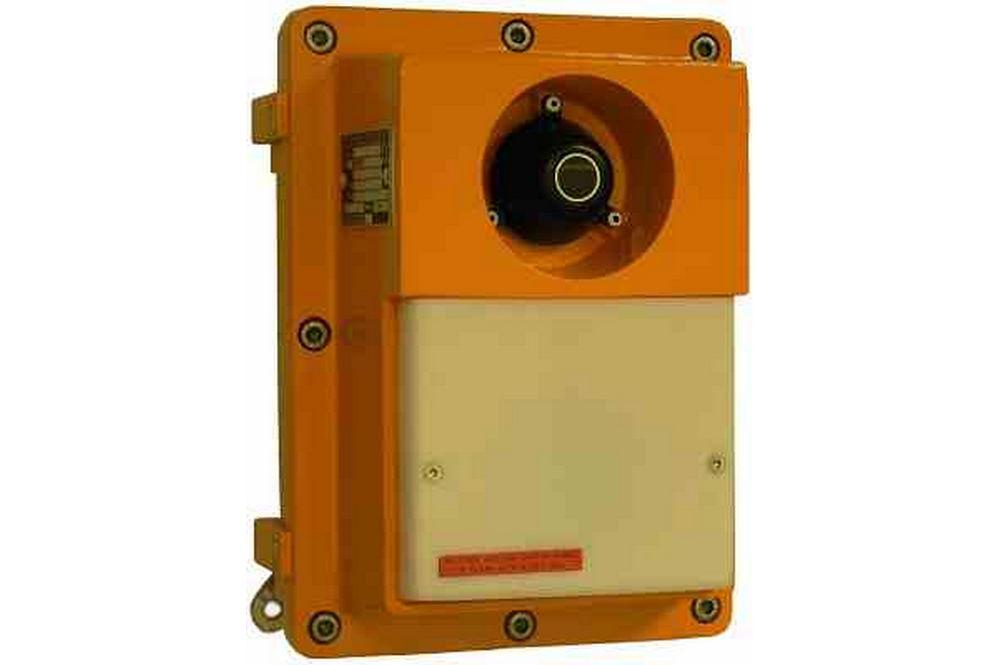

Made in The USA The EPPH-SB214 explosion proof sounding beacon provides both visual and audible signals and includes a telephone interface and 15 Joules flashing Xenon beacon lamp. The EPPH-SB214 explosion proof sounding beacon provides both visual and audible signals. It is equipped with an electronic amplifier card driving a 15W compression chamber motor, producing 100-110 dB at 1 meter. Signals can be modulated to adjustable volumes, with single tones, two tones, treble, and AFNOR urgent evacuation signals. The beacon produces 15 joules (1/sec at 230V, 1/sec at 24V, 0.5/sec at 12V). Electronics and lamp are integrated and protected within the units IP66 rated enclosure. The housing is made from cast aluminum, and all screws are stainless steel for resistance to rust and corrosion. This unit is dust proof and IP 66 rated waterproof. Operating voltages range from 12V to 24VDC and 230VAC. The front of the housing can be accessed by unscrewing the eight front panel screws. Intercom Features/Characteristics
Power Supply: 24-48VDC, 230VAC Consumption: 15W - 15VA Flashing Unit: Xenon lamp, 15 Jouels Acoustic Unit:100dB at 1 meter Telephone Interface: Electronic Relay Circuit Telephone Ring Voltage: 30-100VAC - 25-50Hz Impedance on phone line: 7K ohms Output Level: Adjustable by internal trimmer Output Tone: Low/High, Continuous/Blinking Special: Working during pauses between rings
