Explosion Proof Cord Reel - Class I, Div. I & Class II, Div. II - 50' 14/3 SOOW Cord

LARSON ELECTRONICSSKU: PL3-EPR-50-14.3-HR
filler

Price:
Sale price$10,085.99

Description

Specifications / Additional Information
EPR-50-14.3-HR Explosion Proof Cord Reel Safety Rating
Standard Features: Class I  Division 1, Groups C&D
50` 14/3 SOOW cable Class II Division 1, Groups E,F, & G
Spring activated ratchet Class III Division 1
4-roller adjustable cable guide and ball Class 1 Zone 1: AEx d IIB, EX d IIB
Built to UL 508 table 36.1/NEC Standars Conforms to NEMA 9 and NEMA 4 (IP56) standards
Indoor or Outdoor Use
Rugged fabricated steel and cast aluminum slip ring enclosure
Gray epoxy finish on all steel parts
6` feeder cord on fixed end
This fixture is being remanufactured with cord reel under file number E193373.

' Product Overview '

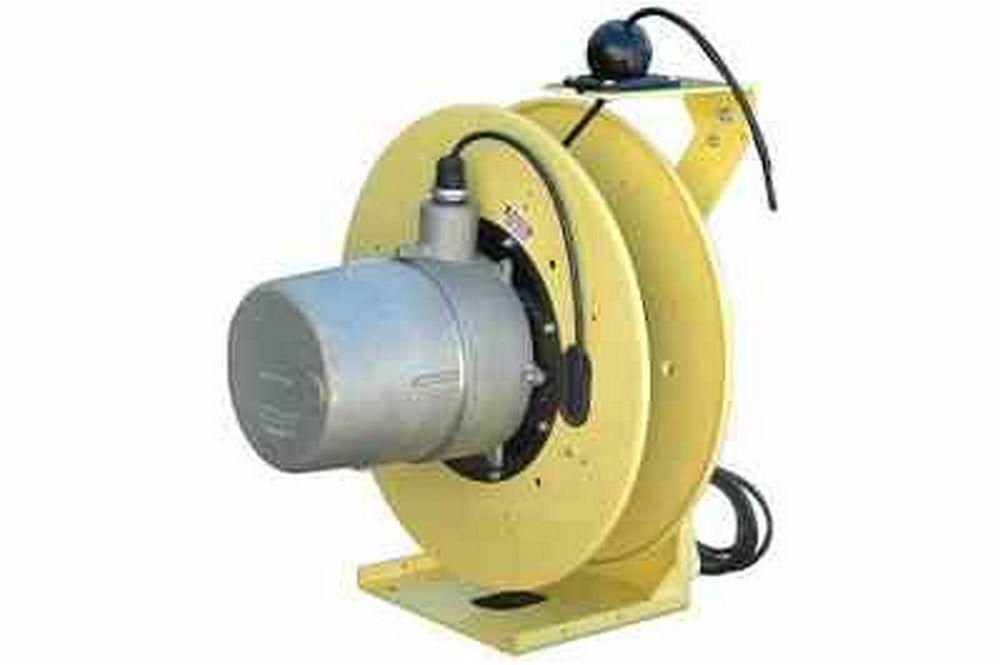

Made in the USA The EPR-50-14.3-HR is an Explosion Proof Reel providing Class I, Division 1 UL rating, as well as a Class II, Division II. This reel is ideal for petroleum facilities, waste water treatment plants, grain storage and handling silos, paint booths, underground mines, chemical plants, and much more. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The unit includes 50 feet of 14/3 SOOW Cord and is ready to install a portable explosion proof fixture to the end. These reels are built with modular components, coupled with a spark proof ratchet and hazardous location slip ring housing. Larson Electronics offers a wide variety of lighting solutions to accommodate this reel. For more information on these lights, please contact us at 1-800-367-6671.
Click Image to Enlarge Click Image to Enlarge
