10A Explosion Proof Double Push Button Switch - Class I, II, III - (1) E-stop, (1) Push Button - N4X
10A Explosion Proof Double Push Button Switch - Class I, II, III - (1) E-stop, (1) Push Button - N4X
| EPS-1XESTP.2XC-1XPB10-N4X-M1 Explosion Proof Double Push Button Mushroom Switch | Ratings |
| Listing: NRTL Listed for United States & Canada | Class I, Divisions 1 & 2, Groups C, D |
| Unit Type: Double Push Button Switch | Class II, Divisions 1 & 2, Groups E, F, G |
| External Dimensions: 5.75" x 8.06" x 6.3125" | Class III, Divisions 1 & 2 |
| Internal Dimensions: 3.625" x 5.8125" x 5.0625" | NEMA 3R, 4, 4X, 7 (C, D), 9 (E, F, G) |
| Weight: 11 lbs | Â |
| Voltage: 600 Volts Max | Â |
| HP: - | Â |
| Amps: 10A Max @ 600V | Â |
| No. of Switches: 2 | Â |
| Switch Types: (1) Emergency Stop Mushroom Button, (1) Push Button | Â |
| Emergency Stop Contacts: (2 Sets) Normally Closed | Â |
| Push Button Contacts: (1) Normally Open, (1) Normally Closed | Â |
| Materials: Copper-free Aluminum (Enclosure), 316 SS (Cover Bolts), Silicone (O-ring Gasket) | Special Orders - Requirements |
| Finish: Grey Powder Polyester Painted Exterior, Electrostatically Applied | |
| Mount: Wall or Surface | |
| Hub Size Options: 1/2" NPT or 3/4" NPT | |
| Hub Configuration: Dead End or Feed Thru | |
| Conduit: Operator Provided |

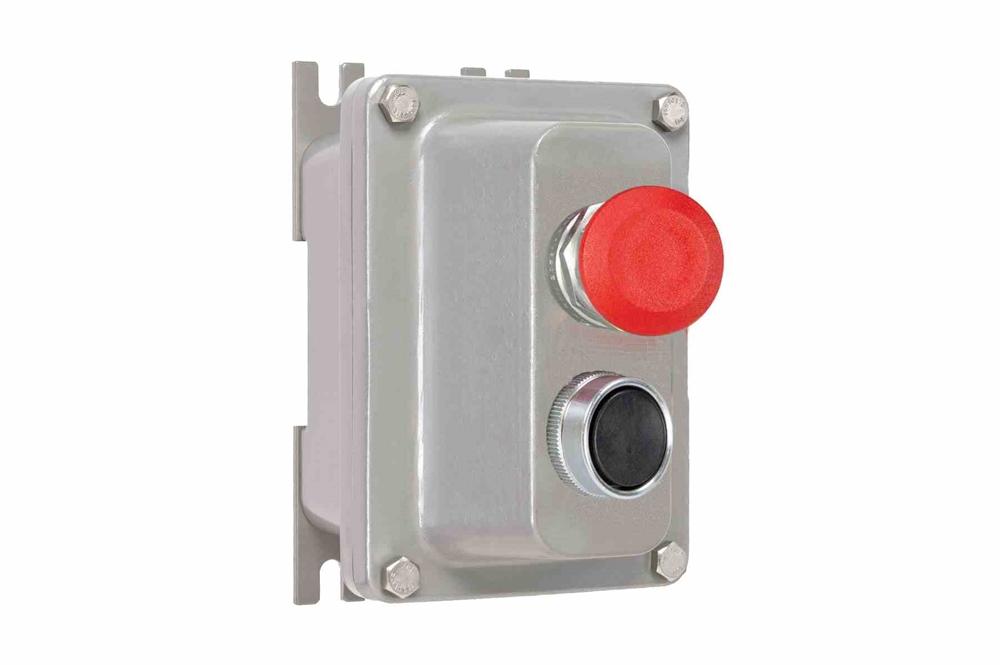

| The Larson Electronics EPS-1XESTP.2XC-1XPB10-N4X-M1 Explosion Proof Double Push Button is suitable for electrical safety and motor control in combustible environments. This NEMA 4X rated unit features one emergency stop button and one push button. Constructed of copper-free aluminum, operators can mount the 10-amp explosion proof device on walls or surfaces, via fixed lugs at the back of the enclosure. The EPS-1XESTP.2XC-1XPB10-N4X-M1 is an explosion proof double push button switch for flammable work sites. This unit is rated for 10 amps at 600V and features one emergency stop button and one push button. A compact design ensures the explosion proof device provides space-saving benefits. The NEMA 4X rated unit has two sets of normally closed contacts for the emergency stop button, as well as one normally open contact and one normally closed contact for the push button. This explosion proof unit is constructed of copper-free aluminum, with 316 stainless steel cover bolts and a silicone O-ring gasket. The explosion proof push button is designed for Class I, Divisions 1 & 2; Class I, Zones 1 & 2; Class II, Divisions 1 & 2; and Class III combustible sites. Hubs: The EPS-1XESTP.2XC-1XPB10-N4X-M1 is offered with 1/2" NPT or 3/4" NPT hubs. Hub configuration options include the following: dead end or feed thru. Mounting: The explosion proof device can be securely mounted on walls or surfaces. Fixed lugs at the back of the explosion proof unit are available for mounting during installation. |
