Explosion Proof 3-Position Selector Switch - Class I, II, Div 1 & 2 - Maintained, Lock Out

LARSON ELECTRONICSSKU: PL3-EPS-3PSW-LO
filler

Price:
Sale price$1,144.99

Description

Specifications / Additional Information
EPS-3PSW-LO Explosion Proof 3-Position Selector Switch - Maintained, Lock Out Ratings/Approvals
Unit Type: Explosion Proof  Switch Class I, Divisions 1 & 2, Groups C, D
Dimensions: 3.5"W x 5.88"H x 2.38"D Class II, Division 1, Groups E, F & G
Weight: 7 lbs Class II, Division 2, Groups F & G
Voltage Rating: 600V AC Class III
Poles: Single NEMA 3, 7(C, D) 9(E, F, G)
Switch Type: 3-Position Selector
Switch Operation: Maintained
Contacts: (2) NO
Material: Copper Free Aluminum Alloy
Mount: Surface
Configuration: Feed Thru or Dead End
Hub Size: 1/2" or 3/4"
' Product Overview '

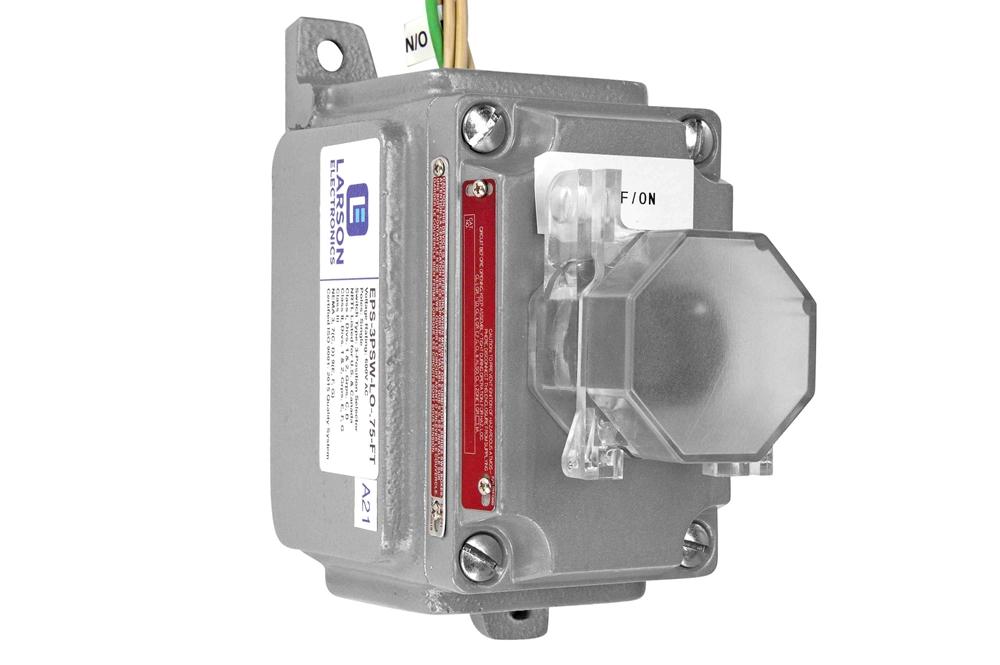

Made in the USA The Larson Electronics EPS-3PSW-LO Explosion Proof 3-Position Selector Switch is suitable for use in Class I, II and III rated combustible sites. This weatherproof unit features a 600V AC voltage rating. When purchasing the product, please choose between 1/2" or 3/4" NPT hub sizes and feed thru or dead end options. This explosion proof selector switch is 600V AC rated unit supports 3 positions with maintained operation. A lock out provision is available on the cover of the switch. The device is constructed of copper-free aluminum alloy. The EPS-3PSW-LO comes with stainless steel captive screws for the cover assembly. Cast conduit hubs in 1/2" or 3/4" are available in feed thru or dead end configurations. Applications: Starters, remote control of motors, chemical processing plants, food processing facilities, oil refineries and other hazardous locations applicable to the unit's classified ratings.
