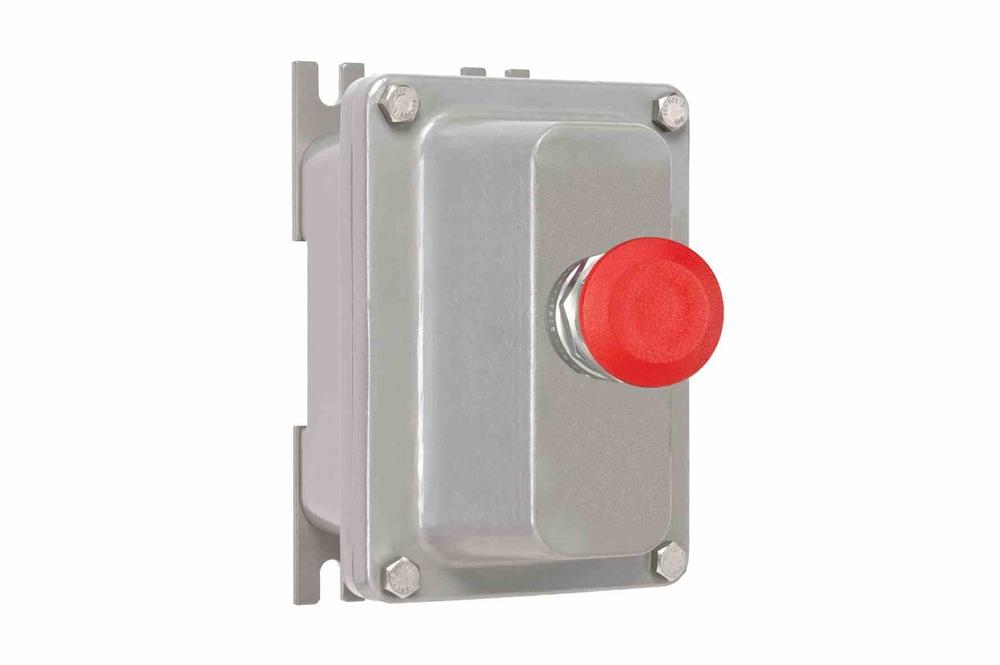

10A Explosion Proof Push Button Mushroom Switch Enclosure - Class I, II, III - Low Voltage - Red Button

LARSON ELECTRONICSSKU: PL3-EPS-PB10-ESTP-2XC-N4X
filler

Price:
Sale price$3,598.99

Description

Specifications / Additional Information
EPS-PB10-ESTP-2XC-N4X Explosion Proof Push Button Mushroom Switch Enclosure Ratings
Listing: United States & Canada NRTL Listed for United States & Canada
Unit Type: Push Button Enclosure Class I, Divisions 1 & 2, Groups C, D
External Dimensions: 5.75" x 8.06" x 6.3125" Class II, Divisions 1 & 2, Groups E, F, G
Internal Dimensions: 3.625" x 5.8125" x 5.0625" Class III, Divisions 1 & 2
Weight: 11 lb NEMA 3R, 4, 4X, 7 (C, D), 9 (E, F, G)
Voltage: 24 V AC or DC NRTL Listed to UL 508A
HP: - NRTL Listed to UL 1203
Amps: 10A NRTL Listed to CSA C22.2 No 14, 25, 30
Switch Type: Push Button Mushroom Switch - Red
Contacts: (2 Sets) NO or NC
Materials: Copper-free Aluminum (Enclosure), 316 SS (Cover Bolts), Silicone (O-ring Gasket) Special Orders - Requirements
Finish: Grey Powder Polyester Painted Exterior, Electrostatically Applied
Mount: Wall or Surface
Hub Size Options: 1/2" NPT or 3/4" NPT
Hub Configuration: Dead End or Feed Thru
Conduit: Operator Provided
' Product Overview '
The Larson Electronics EPS-PB10-ESTP-2XC-N4X Explosion Proof Push Button Mushroom Switch Enclosure is suitable for electrical safety and motor control in combustible environments. Designed to operate on 24 V AC or DC, this unit features a red push button and a compact design. Constructed of copper-free aluminum, operators can mount the 10-amp explosion proof device on walls or surfaces, via fixed lugs at the back of the enclosure. The EPS-PB10-ESTP-2XC-N4X is an explosion proof push button enclosure for flammable work sites. This unit operates on 24 V AC or DC and features a red push button. This push button features 2 contact blocks for up to 2 connections and comes in a switch configuration of 2 normally open or 2 normally closed. A compact design ensures the 10-amp device provides space-saving benefits. The push button enclosure comes in a switch configuration of normally open or normally closed. This explosion proof unit is constructed of copper-free aluminum, with 316 stainless steel cover bolts and a silicone O-ring gasket. The explosion proof push button is designed for Class I, Divisions 1 & 2; Class I, Zones 1 & 2; Class II, Divisions 1 & 2; and Class III combustible sites. Hubs: The EPS-PB10-ESTP-2XC-N4X is offered with 1/2" NPT or 3/4" NPT hubs. Hub configuration options include the following: dead end or feed thru. Mounting: The explosion proof device can be securely mounted on walls or surfaces. Fixed lugs at the back of the explosion proof unit are available for mounting during installation.
