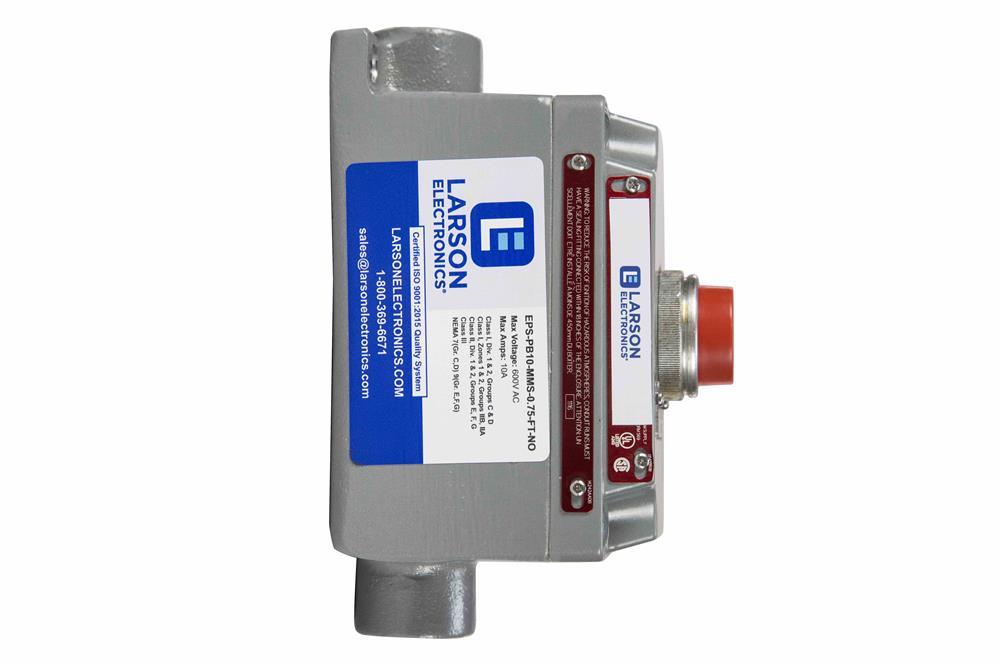

Explosion Proof 10 Amp Momentary Push Button Switch - Class I and II, Division 1 and 2

LARSON ELECTRONICSSKU: PL3-EPS-PB10-MMS
filler

Price:
Sale price$871.99

Description

Specifications / Additional Information
EPS-PB10-MMS Momentary Push Button Ratings/Features:
Voltage: 600V AC Max Listed for United States & Canada
Amperage: 10A Class I, Divisions 1 & 2, Group C, D
Dimensions: - Class II, Divisions 1 & 2, Groups E, F, G
Weight: - Raintight - Wet Location Approved
Switch Type: Momentary - Push NEMA 3, 7 (C,D), 9 (E,F,G)
Termination: Dead end or Feed Thru
Wiring Hub: 3/4" NPT or 1/2" NPT
Wiring: Hard-Wire
Material: Copper Free Aluminum
Finish: Natural
Mounting: 2 Mounting Feet, Surface Mount
' Product Overview '

The Larson Electronics explosion proof momentary push button switch is designed for use in hazardous work areas, such as chemical plants, oil refineries and settings where combustible gases or dust may be present. This 10-amp device features the following explosion proof ratings: Class I Division 1 and 2; and Class II Division 1 and 2. In industrial and commercial settings, the momentary push button switch may be used to support basic features of machines lacking electrical circuits for control. When ordering this unit, buyers may choose from 1/2" and 3/4", dead end and feed thru options. Features: This explosion proof momentary push button switch is rated for 10 amps at 600V AC 60 Hz. This push button comes in a switch configuration of normally open or normally closed. The device supports operating temperatures between -20° to 40°C. It is enclosed in a separate sealing chamber, and the sealing chamber has smooth, double flanges that mate both to the cover and the mounting enclosure to provide flame tight joints. The EPS-PB10-MMS can be used for temporary activation of machines or devices. Like a computer keyboard, this unit stays active, only when actuated. On this unit, the screws consist of stainless steel captive screws and attach the sealing chamber to cover and mounting enclosure. The switch is supplied with an internal ground screw. Its housing is constructed of copper-free aluminum, finished with aluminum acrylic paint. With the robust protruding button design, workers using thick gloves may find the device easier to activate, compared to a traditional momentary push button switch design. Options: This device features ½€ and ¾€ dead end and feed thru options. Both options come with Class 1 Division 1 and 2 (Groups C and D), Class 2 Division 1 and 2 (Groups E, F and G) and Class 3 explosion proof ratings. The components also comply with UL 894, UL 1203 and UL 698 standards, and support NEMA 3/7, CSA Standard: C22.2 No. 30 ratings.
