10A Explosion Proof Push Button Momentary Switch - C1D1/C2D1 - 1P - Double Throw - NEMA

LARSON ELECTRONICSSKU: PL3-EPS-PB10-MS-SPDT
filler

Price:
Sale price$1,204.00

Description

Specifications / Additional Information
EPS-PB10-MS-SPDT Explosion Proof Push Button Switch Ratings
Listing: United States, Canada Class I, Divisions 1 & 2 Groups C & D
Unit Type: Explosion Proof Push Button Momentary Switch Class I, Zones 1 & 2 Groups IIA
Dimensions: - Class II, Divisions 1 & 2 Groups E, F, G
Weight: - Class III
Voltage: 120-277V AC NEMA 7 (C, D) and 9 (E, F, G)
Rated Amps: 10A
Poles: 1-pole
Configuration: Double Throw
Contacts: Normally Open or Normally Closed
Color Options (Button): Red, Green or Black
Materials: Malleable Aluminum Body w/ Aluminum Cover
Mounting: Surface
Hub Configuration: Dead End or Feed Thru
Hub Size Options: 1/2" or 3/4" NPT Hubs
' Product Overview '

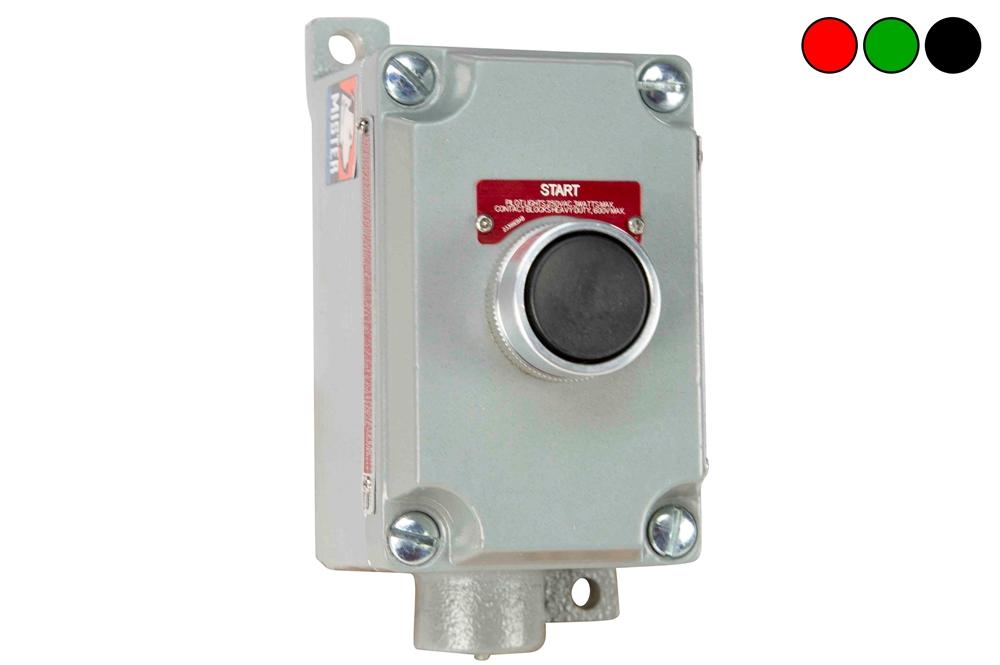

The Larson Electronics EPS-PB10-MS-SPDT Explosion Proof Push Button Momentary Switch is ideal for controlling motors and devices in hazardous locations. This 1-pole unit is equipped with a double throw configuration. Constructed of malleable aluminum, the Class I, Division 1 & 2 and Class II, Division 1 & 2 rated switch features various hub size, contact configuration and color (button) options. The EPS-PB10-MS-SPDT Explosion Proof Push Button Momentary Switch is factory sealed, eliminating the need for adding sealing fittings and compound at each conduit entrance. This heavy-duty unit is rated for 10 amps. The 1-pole explosion proof momentary push button switch takes on a double throw configuration and is offered with normally open or normally closed contacts. Designed to operate on 120-277V AC, color options for the button includes red, green or black. The explosion proof device is constructed of malleable aluminum with an aluminum cover and an epoxy powder coated finish. The screws consist of stainless steel captive screws and attach the sealing chamber to the cover and mounting enclosure. This NEMA rated switch is enclosed in a separate sealing chamber and the sealing chamber has smooth, double flanges that mate both to the cover and the mounting enclosure to provide flame tight joints. The pigtail leads from the push button are factory sealed in sealing as well. Wiring: Operators connect to the switch via an internal terminal strip. This unit is offered in dead end or feed thru configurations, with 1/2" or 3/4" NPT hubs. Mount: The EPS-PB10-MS-SPDT is compatible with surface mounting applications. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, motor control, agricultural sites, wood shops, metal processing and more.
