20A Explosion Proof Push Button Enclosure - Class I, II, III - Low Voltage - Red Button
20A Explosion Proof Push Button Enclosure - Class I, II, III - Low Voltage - Red Button
| EPS-PB20-24V Explosion Proof Push Button Enclosure | Ratings |
| Listing: United States & Canada | Listed for United States & Canada |
| Unit Type: Push Button Enclosure | Class I, Divisions 1 & 2, Groups C, D |
| External Dimensions: 5.75" x 8.06" x 6.3125" | Class II, Divisions 1 & 2, Groups E, F, G |
| Internal Dimensions: 3.625" x 5.8125" x 5.0625" | Class III, Divisions 1 & 2 |
| Weight: 11 lbs | NEMA 3R, 4, 4X, 7 (C, D), 9 (E, F, G) |
| Voltage: 24V AC or DC | NRTL Listed to UL 508A |
| HP: - | NRTL Listed to UL 1203 |
| Amps: 20A | NRTL Listed to CSA C22.2 No 14, 25, 30 |
| Switch Type: Push Button- Red | Â |
| Contact Configuration: Normally Open or Normally Closed | Â |
| Materials: Copper-free Aluminum (Enclosure), 316 SS (Cover Bolts), Silicone (O-ring Gasket) | |
| Finish: Grey Powder Polyester Painted Exterior, Electrostatically Applied | |
| Mount: Wall or Surface | |
| Hub Size Options: 1/2" NPT or 3/4" NPT | |
| Hub Configuration: Dead End or Feed Thru | |
| Conduit: Operator Provided |

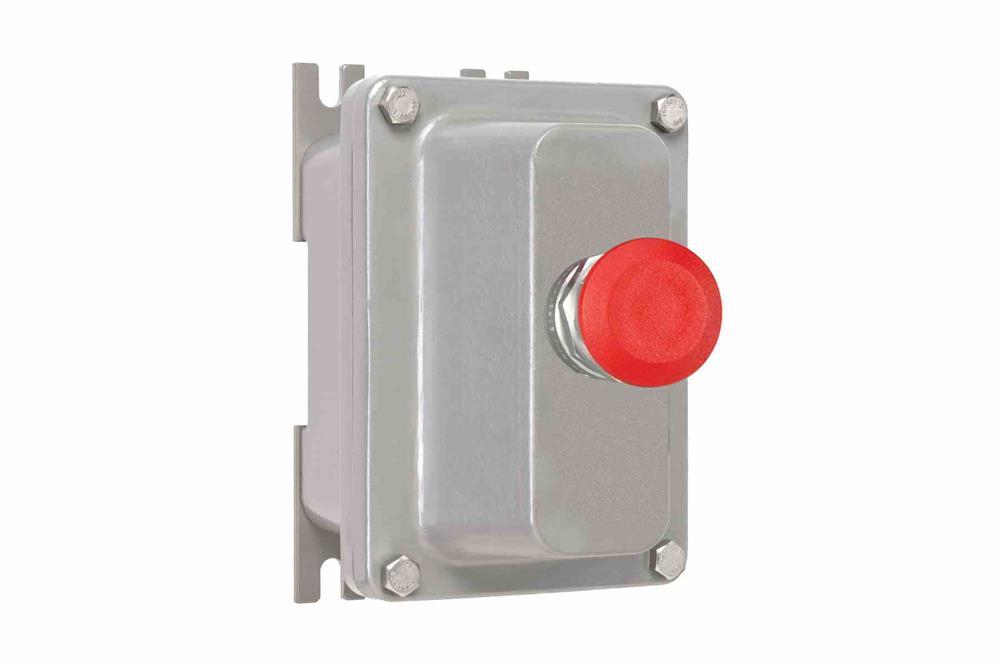

| The Larson Electronics EPS-PB20-24V Explosion Proof Push Button Enclosure is suitable for electrical safety and motor control in combustible environments. Designed to operate on 24V AC or DC, this unit features a red push button and a compact design. Constructed of copper-free aluminum, operators can mount the 20-amp explosion proof device on walls or surfaces, via fixed lugs at the back of the enclosure. The EPS-PB20-24V is an explosion proof push button enclosure for flammable work sites. This unit operates on 24V AC or DC and features a red push button. A compact design ensures the 20-amp device provides space-saving benefits. The push button enclosure comes in a switch configuration of normally open or normally closed. This explosion proof unit is constructed of copper-free aluminum, with 316 stainless steel cover bolts and a silicone O-ring gasket. The explosion proof push button is designed for Class I, Divisions 1 & 2; Class I, Zones 1 & 2; Class II, Divisions 1 & 2; and Class III combustible sites. Hubs: The EPS-PB20-24V is offered with 1/2" NPT or 3/4" NPT hubs. Hub configuration options include the following: dead end or feed thru. Mounting: The explosion proof device can be securely mounted on walls or surfaces. Fixed lugs at the back of the explosion proof unit are available for mounting during installation. |
| Â |
