Explosion Proof LED Strobe Light - 12-36VDC - Class 1, Div. 1 - Wall Mount

LARSON ELECTRONICSSKU: PL3-EPSL-80-141-VDC-WMA
filler

Price:
Sale price$4,426.00

Description

Specifications / Additional Information
EPSL-80-141-VDC Explosion Proof LED Strobe Beacon U.L Ratings
Lamp Type: LED Class 1 Div 1 -Groups C, D
Lamp Dimensions: 7.44"-Diameter, 11.1" Height Class 1 Div 2 -Groups A, B, C, D
Lamp Weight: 12 lbs Class 2, Division 2, Groups F, G
Hub: 3/4" Threaded NEMA 4X
Candela: 141 Suitable for Marine Environments
Voltage: 12 - 36 Volts DC T6 Temperature Rating
Lighting Configuration: Strobing Beacon -55 C to 85 C Operating Temp
Mounting: 3/4" Hub- Wall Mount
Lamp Weight: 12 lbs
U.L. Listing: Classified by the National Electric Code
Total Lumens:  N/A
Wiring:  3/4 inch Threaded Hub
Temp Rating: T6 - All Voltage and Temperature Ranges
In-rush Current: 1.5 Amps @ 24 VDC Flashing and Steady
Amp Draw: 170 mA @ 24 VDC Flashing; 500 mA Steady
3 year warranty replacement on this LED light.
' Product Overview '

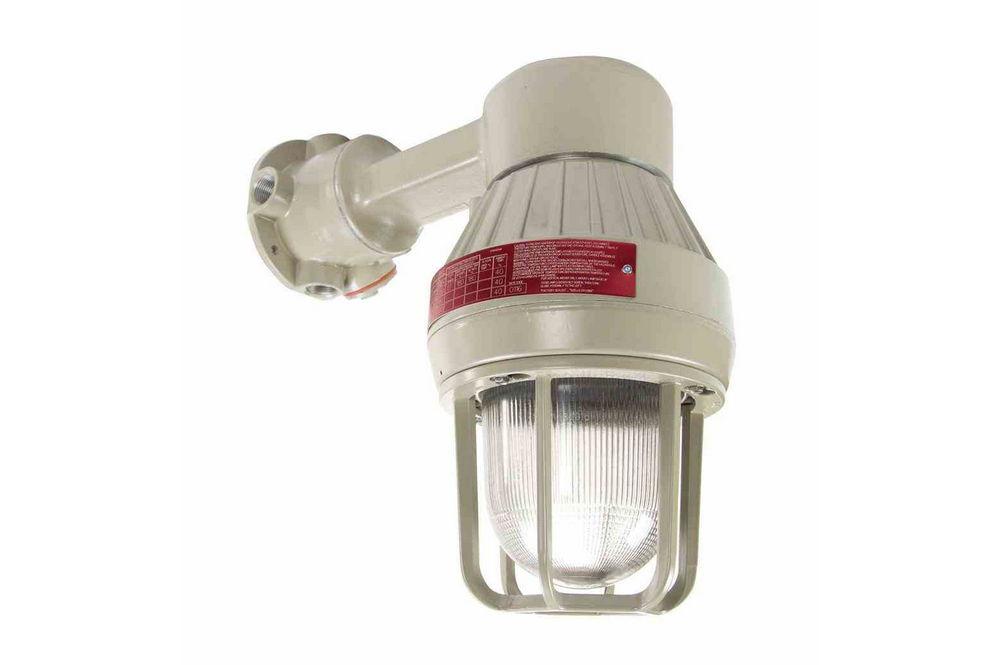

Made in the USA The EPSL-80-141-VDC-WMA LED hazardous area strobe beacon from Larson Electronics operates on 12-36 VDC and provides operators with a very long lived and powerful alternative to traditional HID and incandescent strobe lights. Weather proof and Nema 4X compliant for marine use, this low voltage LED strobe light comes standard in wall mount configuration and has several color options available.   The powerful and durable EPSL-80-141-VDC-WMA strobing beacon from Larson Electronics is approved for use in marine locations and is ideal for industrial applications, confined spaces, hazardous work areas and Class 1 DIV 1 & 2 areas where a powerful and durable low voltage strobe light solution is needed. The lamp housing is weatherproof and constructed of copper-free aluminum alloy featuring a baked on powder coat finish, o-ring sealed glass dome with double pitch acme threads, and stainless steel hardware for corrosion resistance. This unit comes only in standard wall mount configuration with red, blue, green, amber, and white LED colors as available options.


This hazardous area light is UL Listed Class 1 Division 1, Groups C and D, Class 1 Division 2 Groups A, B, C, D, and Class 2, Division 2, Groups F and G. These lights are also compliant with NEMA 4X standards and marine-rated for use in salt water environments. The high power LED cluster is protected by an internal cooling fin array that reduces heat build for longer LED life and higher light output consistency. An internal DIP switch allows operators to choose from steady on, single flash or double flash modes. These LED strobe beacons have 3/4" hubs and can be operated with voltages of 12 to 36 VDC without modification. This strobe light has a T6 termperature rating and and an operating temp range of -55 C to 85 C. The LED output of these beacons is rated at 141 Candela and provides highly effective strobe visibility in combustible atmospheres. In single flash mode this LED beacon produces 80 single flashes per minute and in double flash mode produces 40 double flashes per minute. This Strobing LED beacon is warrented for 5 years against manufacturing defects. Suggested applications: ship yards, boat yards, plants, manufacturing, vessels, petrochemical plants, barges and oil rig and oil field applications.
Made in the USA Quality LED Benefits
1. High Power LED Strobe. 2. Heat Baked Powder Coat Finish. 3. Rugged Non Sparking Aluminum Lamp Housing. 4. Shock Resistant Glass. 5. Sealed Glass Enclosure. 6. Efficient Heat Dissipation.. 7. Low Maintenance. 8. Corrosion Resistant Nema 4X Marine Compliant. 9. Stainless Hardware. 10. Double Pitch Acme Threads. 1. Long lamp life. 2. High efficiency and low amp draw. 3. High durability and reliability. 4. High output and very good color rendering. 5. Vibration and shock resistant. 6. Low maintenance. 7. Low temperature. 8. Less frequent outages, higher output improves workplace safety.
