100' 8/5 SOOW Weatherproof Extension Power Cord - 30 Amps Rated - 480/277V - 4P5W Plug/Connector
100' 8/5 SOOW Weatherproof Extension Power Cord - 30 Amps Rated - 480/277V - 4P5W Plug/Connector
EXC-100-30A-IP67-309.NA-3PH-480Y.277-4P5W - 100' 8/5 SOOW 60A Extension Cord | Features |
Device Series: IEC 60309 (North American Standard) | Certified for United States & Canada |
Cable Length: 100' | NRTL Certified to UL 1682, UL 1686 |
Weight: - | NRTL Certified to CAN/CSA C22.2 No 182.1 |
Cable Type: 8/5 SOOW | CE Certified, Low Voltage Directive 73/23/EEC |
 | CE Certified, Low Voltage Directive 93/68/EEC |
Cord Cap Specs | NRTL Certified to 60309-1, 60309-2 |
Amperage Rating: 30A | CE Certified, Low Voltage Directive 93/68/EEC |
Voltage: 480/277 | NRTL Certified to 60309-1, 60309-2 |
Frequency: 50/60 Hz | RoHS Certified |
Phase: 3-Phase Wye | Compatible with IEC 60309 Compliant Products |
Configuration: 4P5W (3P+N+E) | IP67/IP69K Rated Weatherproof |
# of Poles: 4-Pole | IK07 Rated Drop Resistant |
# of Wires: 5-Wire | Flame Retardant (UL94 V2) |
Max Voltage Rating: 250V 3PH | Certified for Full Load Interrupting |
Clock Hour: 7H | Current Interrupting: Certified for current interrupting at full rated current |
Cord Range: .437 - 1.187 | Corrosion Resistance: Ferrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min |
Dielectric Voltage: 3000V� for 1 min | Flammability: Rated V-2 per UL 94 |
# of Operations: > 1000� connects/disconnects under load, at full rated current and voltage | Ingress Protection Rating: IP67/IP69K |
Minimum Withdrawal Force: 6lbs | Moisture Resistance: Immersed for 24 hours in 5cm of 25°C water per UL 1682 |
Temperature Rise: Max +30°C at full-rated current after 50 cycles of OL at 150% rated current | Crush Test: 250lbs for 1 min after -25°C for 6 hrs |
Operating Temperature Range: -25°C to +65°C | Impact Resistance: Drop from 30" 8 times after conditioning to -25°C for 6 hrs |
Waterproof Rating: IP67, IP69K, NEMA 4X |  |
Shock Resistance: IK09 | Mating Plug: XLE-PA-IP67-309.NA-3PH-30A-480Y.277-4P5W-P |
Flammability: V-2 Rated | Mating Receptacle: XLE-PA-IP67-309.NA-3PH-30A-480Y.277-4P5W-R |
Insulation Resistance: 500V for 1 min; >= 5MΩ | Mating Connector: XLE-PA-IP67-309.NA-3PH-30A-480Y.277-4P5W-C |
Cable Secureness: "Force: 75lb; Torque: 0.5 ft-lb; Max Disp: <= 3/32""" | Mating Inlet: XLE-PA-IP67-309.NA-3PH-30A-480Y.277-4P5W-B |
Seals: Neoprene |  |
Material, Housing Body: Toughened PVC | Cross Compatible: 530P7W |
Material, Housing Cover: Toughened PVC |  |
Material, Contacts: Brass |  |
Material, Contact Carrier: Nylon |  |
Material, External Screws: Acid-Proof Stainless Steel |  |
Material, Internal Screws: Zinc-plated steel |  |
Material, Phase/Ground Sleeves: Brass | |
Material, Sleeve Spring: Stainless Steel | |
Material, Terminal Screws: Steel | |
Color: Red | |
Shipping Dimensions: - | |
Shipping Weight: - | |
 | |
Connector Specs | |
Amperage Rating: 30A | CE Certified, Low Voltage Directive 93/68/EEC |
Voltage: 480/277 | NRTL Certified to 60309-1, 60309-2 |
Frequency: 50/60 Hz | RoHS Certified |
Phase: 3-Phase Wye | Compatible with IEC 60309 Compliant Products |
Configuration: 4P5W (3P+N+E) | IP67/IP69K Rated Weatherproof |
# of Poles: 4-Pole | IK07 Rated Drop Resistant |
# of Wires: 5-Wire | Flame Retardant (UL94 V2) |
Max Voltage Rating: 250V 3PH | Certified for Full Load Interrupting |
Clock Hour: 7H | Current Interrupting: Certified for current interrupting at full rated current |
Cord Range: .437 - 1.187 | Corrosion Resistance: Ferrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min |
Dielectric Voltage: 3000V� for 1 min | Flammability: Rated V-2 per UL 94 |
# of Operations: > 1000� connects/disconnects under load, at full rated current and voltage | Ingress Protection Rating: IP67/IP69K |
Minimum Withdrawal Force: 6lbs | Moisture Resistance: Immersed for 24 hours in 5cm of 25°C water per UL 1682 |
Temperature Rise: Max +30°C at full-rated current after 50 cycles of OL at 150% rated current | Crush Test: 250lbs for 1 min after -25°C for 6 hrs |
Operating Temperature Range: -25°C to +65°C | Impact Resistance: Drop from 30" 8 times after conditioning to -25°C for 6 hrs |
Waterproof Rating: IP67, IP69K, NEMA 4X |  |
Shock Resistance: IK09 | Mating Plug: XLE-PA-IP67-309.NA-3PH-30A-480Y.277-4P5W-P |
Flammability: V-2 Rated | Mating Receptacle: XLE-PA-IP67-309.NA-3PH-30A-480Y.277-4P5W-R |
Insulation Resistance: 500V for 1 min; >= 5MΩ | Mating Connector: XLE-PA-IP67-309.NA-3PH-30A-480Y.277-4P5W-C |
Cable Secureness: "Force: 75lb; Torque: 0.5 ft-lb; Max Disp: <= 3/32""" | Mating Inlet: XLE-PA-IP67-309.NA-3PH-30A-480Y.277-4P5W-B |
Seals: Neoprene |  |
Material, Housing Body: Toughened PVC | Cross Compatible: 530C7W |
Material, Housing Cover: Toughened PVC |  |
Material, Contacts: Brass |  |
Material, Contact Carrier: Nylon |  |
Material, External Screws: Acid-Proof Stainless Steel |  |
Material, Internal Screws: Zinc-plated steel |  |
Material, Phase/Ground Sleeves: Brass | |
Material, Sleeve Spring: Stainless Steel | |
Material, Terminal Screws: Steel | |
Color: Red | Int'l: 1-214-616-6180 |
Shipping Dimensions: - | |
Shipping Weight: - |

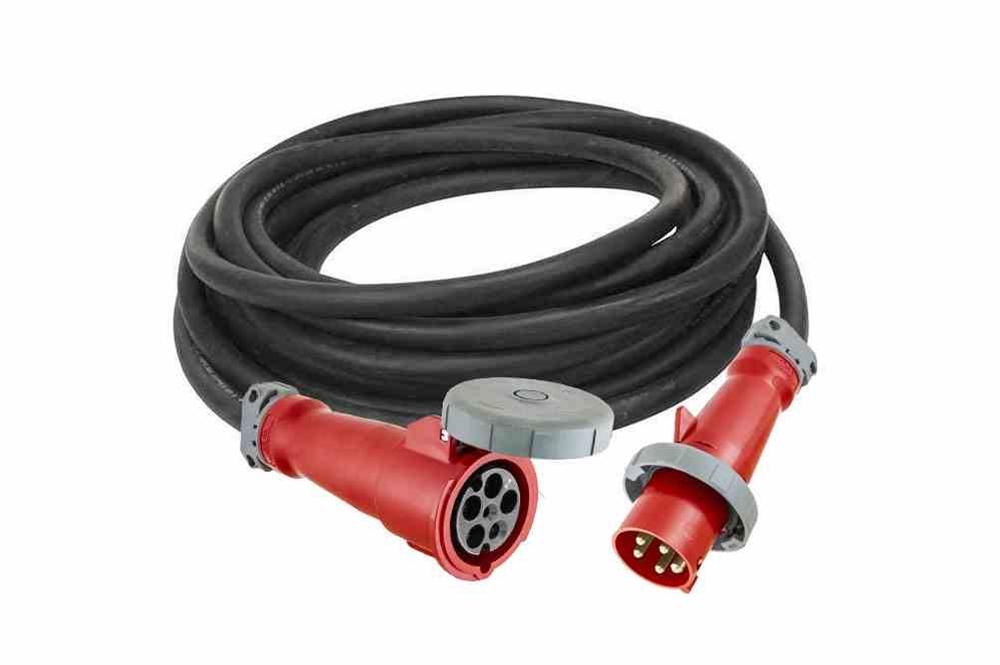

Made in the USA The EXC-100-30A-IP67-309.NA-3PH-480Y.277-4P5W from Larson Electronics is a 100' weatherproof 8/5 SOOW extension power cord that is designed for heavy duty and outdoor applications. This rugged extension cord is constructed of 8-gauge 5-conductor wire, equipped with a red 60-amp rated weatherproof IEC 60309 pin and sleeve cord cap and allows operators to extend power to equipment when stationary weatherproof outlets are not readily available. The EXC-100-30A-IP67-309.NA-3PH-480Y.277-4P5W extension cord provides a safe and effective way for operators to extend 480/277V power to a variety of devices for plant maintenance, power generators, construction and other temporary applications. This unit consists of 100 feet of chemical and abrasion resistant flexible 8/5 SOOW cable that is terminated in a red IEC 60309, 30-amp rated 4-pole, 5-wire cord cap with a clock hour setting of 7H. The other end contains a 4-pole, 5-wire female connector with a clock hour setting of 7H. Applications: This extension cord is ideal for indoor or outdoor use and applications including but not limited to, generators, construction sites, plant maintenance, plant turnarounds, shows, exhibits, industrial equipment, uninterruptible power supplies (UPS battery backups), stage equipment, and shipyard operations. These industrial extensor cords are popularly used in applications where external power sources are often necessary. We also offer class rated extension cords for use within explosion proof and hazardous location environments. Larson Electronics is a manufacturer and as such can build extension cords and portable transformer systems to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements. |
