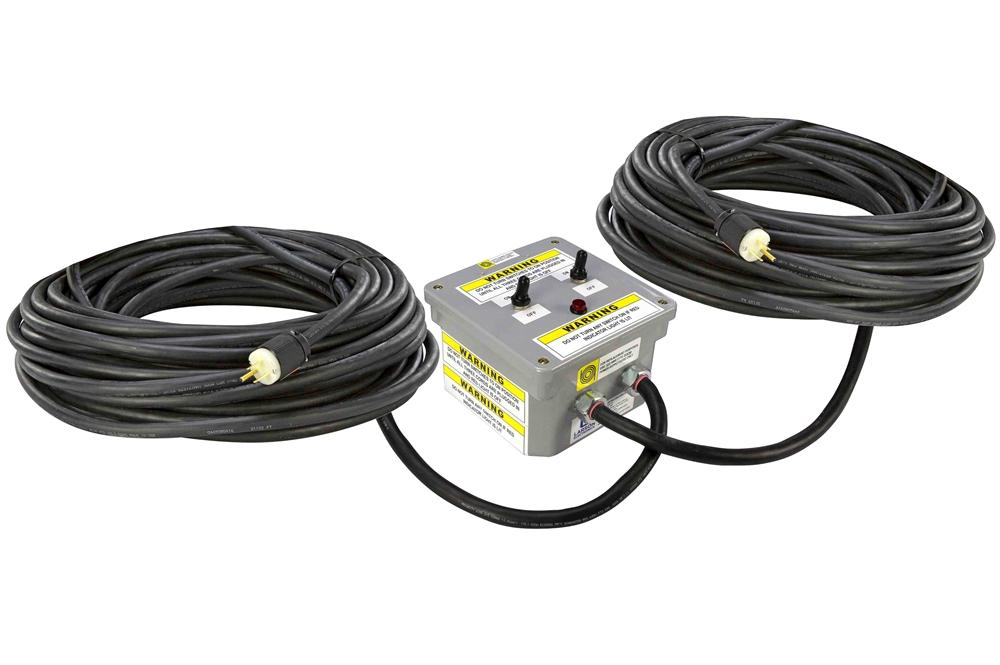

Voltage Splitting Extension Power Cord - (1) 5-30R - (2 Sets) 14/3 SOOW Cord w/ 5-15P - Y Splitter

LARSON ELECTRONICSSKU: PL3-EXC-Y-2X100-30A-2X5.15P-5.30C
filler

Price:
Sale price$1,557.99

Description

Specifications / Additional Information
EXC-Y-2X100-30A-2X5.15P-5.30C Y Splitter Extension Cord Summary
Unit Type: Voltage Splitting Power Cord Y Splitter
Dimensions: -
Weight: -
Voltage: 120V AC
Amp Rating: 30A
Female Receptacle: (1) 30A 5-30R w/ Weatherproof Box and Flip Cover [125V] Special Orders/Requirements
Configuration: Y Splitter
Cord Type: (2 Sets) 14/3 SOOW Cords
Cord Length: (2 Sets) 100'
Male Cord Cap Type: (2) 15A 5-15P [125V]
Materials: -
' Product Overview '
Made in the USA The Larson Electronics EXC-Y-2X100-30A-2X5.15P-5.30C Voltage Splitting Extension Power Cord is designed for heavy duty and outdoor applications. This rugged extension cord is constructed of 14-gauge 3-conductor wire and has one 5-30R female receptacle with a weatherproof box and flip cover. Equipped with two sets of 100' 14/3 SOOW cords with 5-15P standard wall plugs, the Y-splitter unit allows operators to extend power to equipment when stationary outlets are not readily available. The EXC-Y-2X100-30A-2X5.15P-5.30C is designed to power a 30-amp device using two separate 15-amp or 20-amp power sources. Operators may connect their 30-amp device via one 30-amp 5-30R 125V female receptacle with a weatherproof box and flip cover. In a Y-splitter configuration, two sets of 100' 14/3 SOOW cords with 15-amp 5-15P standard 125V male plugs are available at the other end of the unit. The 5-15P standard American male plugs are compatible with most standard outlets in stateside locations. This solution utilizes two separate circuits (such as outlets located in different rooms) to power a 30-amp device that is connected to the 5-30R female receptacle. Applications: This extension cord is ideal for indoor or outdoor use and applications including but not limited to, generators, construction sites, plant maintenance, plant turnarounds, shows, exhibits, industrial equipment, uninterruptible power supplies (UPS battery backups), stage equipment, and shipyard operations. These industrial extension cords are popularly used in applications where external power sources are often necessary. We also offer class rated extension cords for use within explosion proof and hazardous location environments. Larson Electronics is a manufacturer and as such can build extension cords and portable transformer systems to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.
