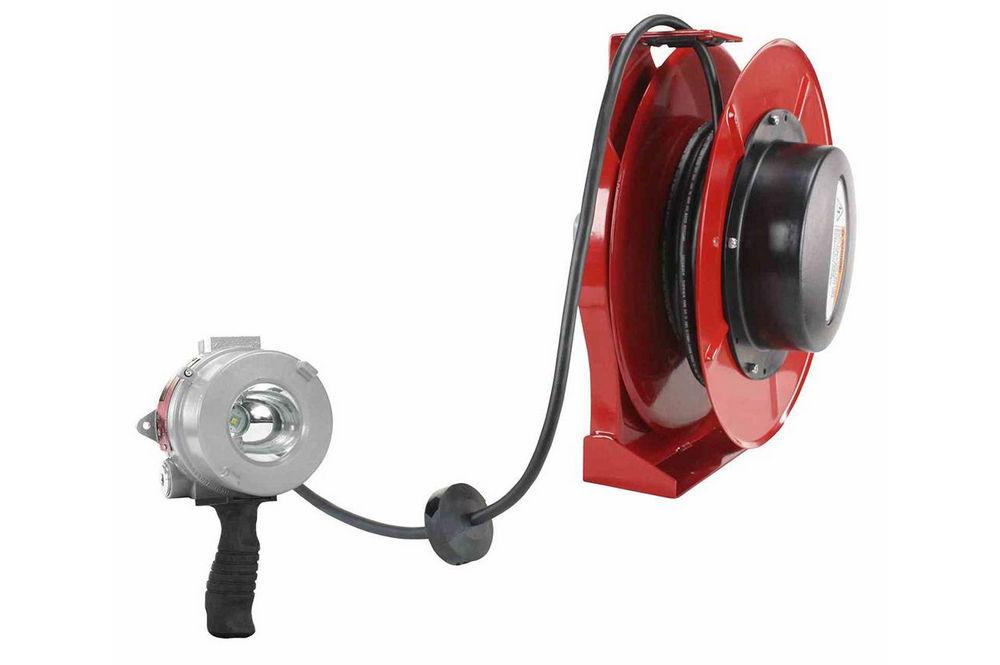

12W Explosion Proof Handheld LED Light w/ Cord Reel - 120-277V Stepped Down to 12V - 50' 12/3 Cord

LARSON ELECTRONICSSKU: PL3-EXHL-HL-LE4-WHT-X12V-GR50
filler

Price:
Sale price$7,972.00

Description

Specifications / Additional Information
EXHL-HL-LE4-WHT-X12V-GR50 Explosion Proof LED Light w/ Cord Reel Ratings/Approvals
Lamp Type: LED Listed for United States & Canada
Dimensions: 8"L x 6"W x 14"H Class I, Divisions 1 & 2, Groups B, C, D
Watts: 12W Class I, Zones 1 & 2, Groups IIB+H2, IIA
Voltage: 120-277V AC Stepped Down to 12V DC Class II, Divisions 1 & 2, Groups E, F, G
Lumens: 1320 Class III, Divisions 1 & 2
Luminous Efficacy: 110 Lm/W NEMA 3R, 4, 7 (B, C, D), 9 (E, F, G)
LED Light Color: 6000K - White NRTL Listed to UL 508A
LED Life Expectancy: 50,000 hours NRTL Listed to UL 1203
Lighting Configuration: 10° Spot or 40° Flood NRTL Listed to CSA C22.2 No 14, 25, 30
Spot Beam: 800`L x 140`W
Flood Beam: 300`L x 225`W
Ambient Operating Temp Range: -40°C to +60°C
Housing Material: Aluminum
Housing Color: Powder Coated - Grey
Lens Material: Polycarbonate
Light Mount: 5" Polycarbonate Handle
Cord Reel Mount: Flat Surface Mount
Wiring: 50` 12/3 Cord w/ Cord Reel
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist. UK BS1363, Intl. Schuko, Pigtail
' Product Overview '
The EXHL-HL-LE4-WHT-X12V-GR50 from Larson Electronics is an Explosion Proof Handheld LED Light w/ Cord Reel that is a low voltage, handheld lighting solution for hazardous locations. This 12-watt unit provides 1,320 lumens of white light with a color temperature rating of 6,000K. The explosion proof LED fixture also features a 5" ergonomic handle for convenience and comfort during operation. Operators are provided access to a heavy-duty cord reel with 50 feet of 12/3 cable. The handheld light operates on 120-277V AC stepped down to low voltage 12V DC. The EXHL-HL-LE4-WHT-X12V-GR50 produces 1,320 lumens of high-intensity LED light for illumination within hazardous areas and potentially explosive work environments. This portable LED light accepts 120-277 AC at the input side, which is stepped down to 12V DC for low voltage applications in flammable work sites. The low voltage unit is available in two lighting configurations: spot or flood. The spot configuration features a 10° beam that measures 800`L and 140` W. The flood configuration throws a 40° beam that measures 300`L and 225`W. With a high color-temperature rating of 6,000K the handheld LED fixture offers improved detection of dangerous elements, obstructions and abnormal conditions in the surrounding area. This explosion proof LED light from Larson Electronics is rated NEMA Type 3, 4, 4X, 7 (B,C,D) and 9 (E,F,G). The luminary is designed to withstand the rigors of demanding environmental and operating conditions while remaining lightweight and easy to use. These units can operate in temperatures of -40° Celsius to 60° Celsius, are waterproof to 3 meter and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum and the lenses are unbreakable polycarbonate. The LEDs offer inherent LED resistance to shocks and vibrations. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or "duty cycle" accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LED`s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 100% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This unit is equipped with 50 feet of 12/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Cord Reel: The cord reel is designed for a lift/drag of up to 50 feet of 12/3 cable. Reel with cable installed/tested comes with 50 feet of active travel plus an additional 2 feet for safety wrap and hook up. The reel is UL Listed (UL/cUL), and is constructed of durable steel, has a safety yellow and white powder coat finish and includes a ball stop and a ratchet with a lockout feature. This component can be mounted on flat surfaces. Applications: Hazardous locations, inspections, detailed tasks, confined spaces, oil and gas, agricultural facilities, grain storage, paint spray booths, woodshops, manufacturing plants, outdoor locations and more.
