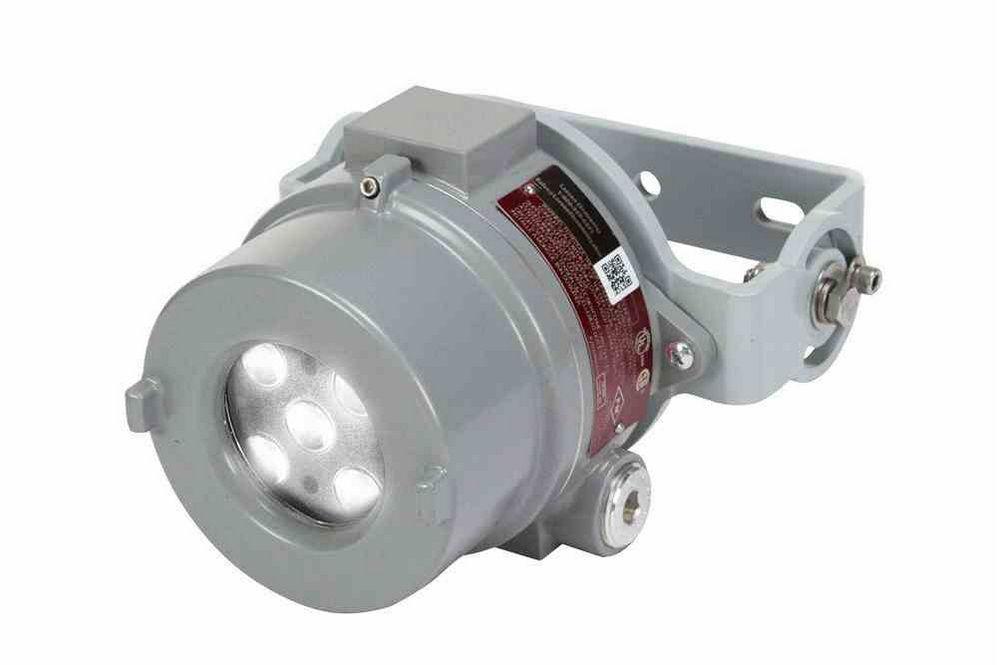

The EXHL-TRN-LE4-FKWL-WHT-1224 from Larson Electronics is an Explosion Proof White Forklift LED Spotlight that produces 2,250 lumens while drawing only 25 watts. Forklift operators may use this compact luminary as headlights to clearly see where they are going in low light environments. The EXHL-TRN-LE4-FKWL-WHT-1224 is Class I, Divisions 1 & 2, Groups B, C, D, Class I, Zones 1 & 2, Groups IIB+H2, IIA, Class II, Divisions 1 & 2, Groups E, F ,G and Class III Divisions 1 & 2 rated for hazardous areas and is listed for use worldwide including the United States, Canada, Europe and Asia. This explosion proof LED light offers 9 to 60-volt universal compatability, which includes commonly used 12V DC, 24V DC, and 48V DC voltages.
The EXHL-TRN-LE4-FKWL-WHT-1224 produces 2,250 lumens of intense LED light for real-time area illumination in front of the forklift for safe operation. This 25-watt unit, which operates on universal 9-60V DC, features a small form factor (SFF) design for easy installation in tight spaces and non-intrusive operation in busy facilities, making it ideal for applications where electrical power and mounting space is at a premium. Five 5-watt white LEDs producing 450 lumens each are combined with high purity optics to produce a narrow 5Â° degree spread spot beam, providing a high intensity center beam which is visible during daytime and nighttime operations. An adjustable surface mount mechanism allows operators to control the direction of the beam by tilting the unit towards the desired target.
In addition to this explosion proof spotlight being used as forward area illumination, it also acts as a visual indicator for the path of a forklift. Mounted low in the front of the truck, the EXHL-TRN-LE4-FKWL-WHT-1224 makes for perfect headlights for skid trucks in areas with low illumination. Installing one at the top of the cab in the rear provides reverse illumination for backing up.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or "duty cycle" accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LED`s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 100% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours.
Durability: The EXHL-TRN-LE4-FKWL-WHT-1224 explosion proof LED light fixture from Larson Electronics is rated NEMA Type 3, 4, 4X, 7 (B,C,D) and 9 (E,F,G) and designed to withstand the rigors of demanding environmental and operating conditions while remaining lightweight and easy to use. These units can operate in temperatures of -40Â° Celsius to 60Â° Celsius, are waterproof to 3 meter and resist ingress of dust, dirt and humidity. The housings are formed copper free aluminum sealed behind a borosilicate glass lens. The LEDs offer inherent LED resistance to shocks and vibrations.
Mounting: This explosion proof LED warning light features an adjustable surface mount bracket for seamless control. The included adjustable flat surface bracket has two set screws on the bracket, allowing operators to loosen the mounting bracket, adjust the light`s tilt orientation, and retighten to hold the luminary in position. A single thru-hole mounting bolt allows operators to adjust the rotation of the fixture by loosening one bolt.
Wiring: Terminal strips inside the fixture allow operators to make electrical connections. Wiring is fed through rigid pipe to the 3/4" NPT hubs on either side of the fixture and tied in to the fixtureâ€™s terminal strips, completing the electrical connection.
|High Quality Features
||Superior LED Benefits
1. Low power consumption.
2. Instant on/off operation.
3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy.
4. Superior color rendering compared to HPS, LPS, MH.
5. Retains 70% lumen output after 50,000 operating hours.
6. Powder coated aluminum fixture body.
7. Adjustable surface mount bracket w/ set screws.
8. Low profile - Light weight
9. 2,250 Lumen output from 25 watts
1. 50,000+ hour lifespan.
2. Can SAVE 50% or more on energy.
3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs.
4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration)
5. 100% recyclable.
6. No toxins-lead, mercury.
7. No UV light, infrared radiation or CO2 emissions.
8. Qualifies buildings for LED and other sustainable business certifications.
9. Bright, even light maintains consistent color over time.
10. Instant on/off - No flickering, delays or buzzing.
11. Very good color rendering.
12. Vibration/impact resistant.
13. Significantly cooler operation.
14. Less frequent outages, higher output improves workplace safety.
