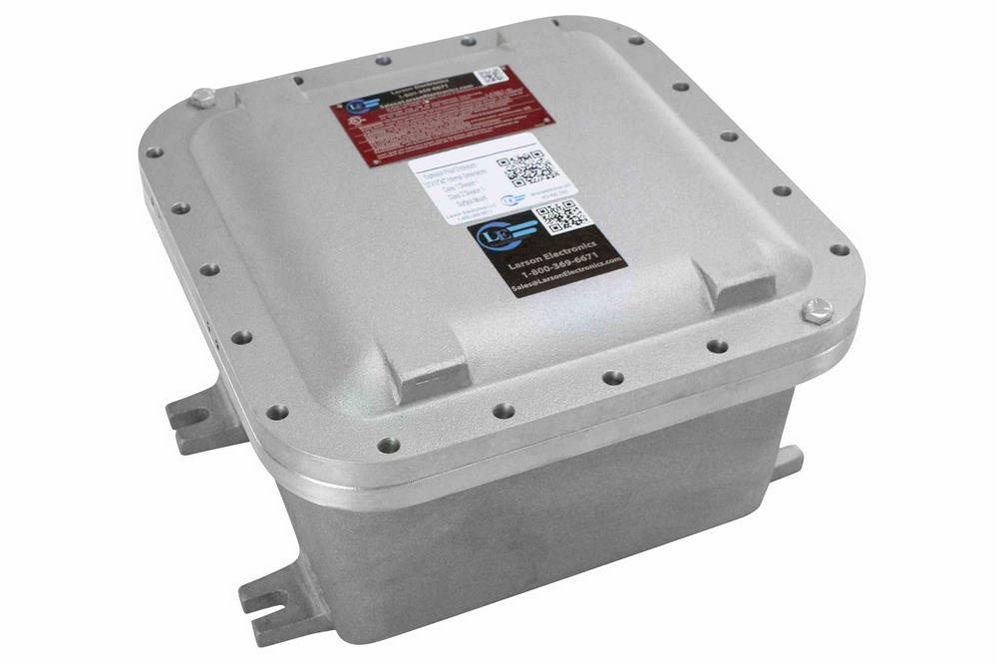

C1D1 Explosion Proof Battery Charger - 120V AC Input, 24V DC Output - 30A - (2) 3/4" Hubs - N4X
C1D1 Explosion Proof Battery Charger - 120V AC Input, 24V DC Output - 30A - (2) 3/4" Hubs - N4X
| EXP-BCHR-120V-2X0.75-30A-24V Battery Charger | Ratings |
| Unit Type: Explosion Proof Battery Charger | Class I, Division 1 |
| External Dimensions: 20.38" x 20.38" x 11.19" | Class II, Division 1 |
| Weight: 162 lbs | NEMA 4X |
| Watts: 820W (Max/Continuous) |  |
| Input Voltage: 105-135V AC (120V AC) @ 47-63 Hz |  |
| Output Voltage: 24V DC |  |
| No-load Output Voltage: 27.2V DC (+/- 0.7% Tolerance) |  |
| Withstand Voltage: 1240V @ Leads |  |
| Efficiency: >85% |  |
| Line Regulation: 50 mV rms (<1.0%) |  |
| Charger Type: 3 Step w/ Demand Sensing |  |
| Protection: Line, Load, Thermal, Over Voltage, Overload (100%), Short Circuit, Reverse Polarity |  |
| Max Inrush Current, Single Cycle: 40A |  |
| Max AC Current @ 108V AC (Input): 7A |  |
| Max Output Amps: 30A Continuous | |
| Ambient Operating Temp: 0°C to +45°C | |
| Materials: Cast Aluminum, Stainless Steel | |
| Mount: Surface | |
| Connections: (1) Input, (1) Output | |
| Hubs: (2) 3/4" NPT |
| The Larson Electronics EXP-BCHR-120V-2X0.75-30A-24V Explosion Proof Battery Charger is designed for battery repair, charging, restoration and maintenance in Class I, Division 1 and Class II, Division 1 environments. The NEMA 4X-rated unit accepts 120V AC @ 50-60 Hz input and provides 24V DC output @ 30 amps maximum/continuous. Constructed of cast aluminum, operators can access terminal strips for completing connections to a 120V power source (input) and a customer-provided 24V DC battery (output). The EXP-BCHR-120V-2X0.75-30A-24V is a compact, explosion proof battery charger for combustible environments and work sites. This unit offers 120V AC input voltage (105-135V AC input range) @ 47-63 Hz. Operators are provided access to 24V DC on the output side, with maximum power output of 820 watts. The 30-amp maximum/continuous explosion proof charger operates at 85% efficiency. During operation, the explosion proof charger uses 3-step demand-sensing technology for optimized AC to DC conversion. This Class I, Division 1 and Class II, Division 1 device is safe to run continuously and can be left connected at all times. Protective functions include the following: Line, Load, Thermal, Over Voltage, Overload (100%), Short Circuit, Reverse Polarity. The device is constructed of cast aluminum, with stainless steel hinges and bolts. A NEMA 4X rating ensure safe use in indoor and outdoor locations, as well as protection from water spray, moisture, dust, corrosion and external ice formation. Wiring: The EXP-BCHR-120V-2X0.75-30A-24V contains terminal strips for connecting 120V to the explosion proof charger (input). A single output connection is available on the output side for 24V DC customer-provided equipment. Two, 3/4" NPT hubs are accessible for completing connections to the explosion proof device. Mounting: Operators can mount the battery charger on flat surfaces and walls via four openings at each corner of the explosion proof enclosure. Applications: Battery charging, battery maintenance and repair, combustible work sites, flammable environments, cars, standby/emergency generators, power management, generators, pumps, field engineering, automated systems, engine battery charging and more. |
